6AV6643-7BA00-0CJ0 SIMATIC OP277 Membrane Keypad Replacement

group name: Oparator Panel

Min Order: 1 piece

brand name: VICPAS

model: 6AV6643-7BA00-0CJ0

Nearest port for product export: Guangzhou, Hongknog, Shenzhen, Taiwan

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Thu, 21 Nov 2024 18:56:49 GMT

contact supplier

Paramtents

Brand Siemens
Warranty 6 Months
Product Line Siemens OP277 Operator Panel
Supply SIMATIC HMI OP277 Repair Kit
Size 5.7 inch
model 6AV6643-7BA00-0CJ0

Packging & Delivery

Min Order1 piece

Briefing

6AV6643-7BA00-0CJ0 Siemens SIMATIC HMI OP277 membrane Switch. 6-months Warranty-Fully Tested-Factory Prices-Fast Shipping

Detailed

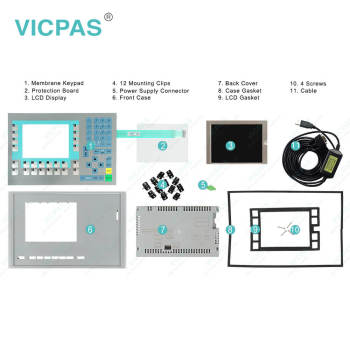

6AV6643-7BA00-0CJ0 Siemens SIMATIC HMI OP 277 OPERATOR PANEL Membrane Keyboard, Display, Mounting Clips, Screws, Protection Board, Power Supply Connector, Case Gasket, LCD Gasket and Plastic Case Shell

Order each part separately is available

6AV6643-7BA00-0CJ0 Siemens SIMATIC HMI OP 277 OPERATOR PANEL Membrane Keyboard, Display, Screws, Power Supply Connector, Mounting Clips, LCD Gasket, Case Gasket, Protection Panel and Plastic Case Shell Repair Replacement

6AV6643-7BA00-0CJ0 SIMATIC OP 277 6" PSA OPERATOR PANEL 5.7" TFT DISPLAY 4 MB CONFIGURING MEMORY, CONFIGURABLE WITH WINCC FLEXIBLE 2005 SP1 PROAGENT FOR PSA

The HMI devices OP 277 represent a further stage of development of the HMI devices OP 270-6. The mounting options and the functional scope of the OP 277 are compatible with the HMI devices in the 270 series.

The TP 277 and OP 277 also have the following features:
• The HMI devices can be operated on PROFINET via the Ethernet port.
• The HMI devices feature a TFT screen with 256 colors.
• The use of projects with scripts and logs is supported.

VICPAS supply 6AV6643-7BA00-0CJ0 Siemens OP277 membrane keyboard, LCD Gasket, Case Gasket, Protection Board, Power Supply Connector, Screws, Mounting Clips, LCD Screen and Plastic Case with 6 months warranty and support Urgent Worldwide Shipping.

Contact Best Price

Specifications:

The table below describes the parameters of the 6AV6643-7BA00-0CJ0 Siemens OP277 HMI Parts.

Part Number:	6AV6643-7BA00-0CJ0
Screen diagonal:	5.7 in
Operating options:	Keys
Warranty:	6-Months Warranty
Product Line:	Siemens OP277

Digital outputs:	16
Number of colors :	256
Resolution:	320 * 240
MTBF backlighting:	60,000 hours
Design of display:	TFT display

Related Siemens OP277 Part No. :

Siemens OP277 Keypad	Description	Inventory status
6AV6643-0BA01-1AX0	OP 277 6"	In Stock
6AV6643-7BA00-0CJ0	OP 277 6"	In Stock
6AV6643-7BA00-0CJ1	OP 277 6"	In Stock
6AV6643-0BA01-1AX1	OP277-6	In Stock
6AG1643-0BA01-4AX1	SIPLUS HMI OP277 6	In Stock
Siemens OP277 Part No.	Description	Inventory status

Siemens OP277 series HMI Manuals PDF Download:

6AV6643-7BA00-0CJ0 SIMATIC HMI OP277 datasheet pdf

Siemens Simatic OP277 HMI operator panel keypad manual

FAQ:

Question:How to Mount the SIMATIC HMI OP277 Device?

Answer:All packaging components and protective foil should be removed from the HMI device.You need the mounting clamps from the accessories kit for the installation. The mountingseal must be available on the HMI device. If the mounting seal is damaged, order areplacement seal. The mounting seal is part of the associated service pack.

Question: What is the dimension of 6AV6643-7BA00-0CJ0 Siemens OP277 membrane switch??

Answer:The dimension of Siemens OP277 is 5.7 inch.

Question: What is the 6AV6643-7BA00-0CJ0 Siemens OP277 mebrane switch ,shell and other HMI parts price?

Answer: Submit a fast quote, send VICPAS an email for best price.
