6FC5203-0AF05-1AB0 Siemens OP015AT Membrane Keyboard
- group name
- SINUMERIK Operator Panel
- Min Order
- 1 piece
- brand name
- VICPAS
- model
- 6FC5203-0AF05-1AB0
- Nearest port for product export
- Guangzhou, Hongknog, Shenzhen, Taiwan
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Fri, 22 Nov 2024 11:04:59 GMT
Paramtents
Brand Siemens
Warranty 6 Months
Product Line Siemens OP015AT Operator Panel
Supply Sinumer HMI OP015AT Membrane Keyboard Plastic Case
size 15 inch
Packging & Delivery
-
Min Order1 piece
Briefing
6FC5203-0AF05-1AB0 Siemens Sinumer HMI OP015AT membrane Switch. 6-months Warranty-Fully Tested-Factory Prices-Fast Shipping
Detailed

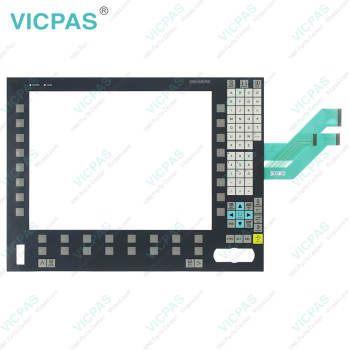

6FC5203-0AF05-1AB0 Siemens SINUMERIK HMI OP015AT OPERATOR PANEL Membrane Keyboard, Touchscreen and Plastic Case Shell Repair Replacement
Description of Siemens 6FC5203-0AF05-1AB0 Terminal Keypad
The SINUMERIK OP 015AT 6FC5 203-0AF05-1AB0 operator panel front with 15"TFT color display and 1024 x 768 pixels(XGA) enables the distributed installation of the operator panel front and the controller. It features a membrane keyboard with 62 keys and 2 x(8 +2) horizontal and 2 x 8 vertical softkeys and an integrated mouse. The distance to the 6FC52030AF051AB0 Membrane Keypad Switch operator panel fronts is determined by the maximum distance between two network nodes/access points (100m/328ft). The OP 015AT operator panel front is connected to the PCU/NCU via Ethernet as a Thin Client in its own subnet (via DHCP server to PCU/NCU). Mixed operation with an operator panel connected directly to the PCU is possible. The 6FC5203-0AF05-1AB0 Keyboard Membrane operator panel front is secured from the rear using special clamps supplied with the panel.
Screen saver
If a screen with high contrast is displayed unchanged for longer than 1 hour, the screensaver of Siemens 6FC5 203-0AF05-1AB0 Keypad Membrane must be activated (screen switched dark) to protect the TFT display from "burn-in" of the last displayed screen. You may do irreversible damage to your TFT display if the screen saver of 6FC52030AF051AB0 Membrane Switch is not activated.
Operator panel front of 6FC5 203-0AF05-1AB0 Operator Keyboard
When the 6FC5203-0AF05-1AB0 operator panel front is replaced, the display, keyboard controller, mouse, and USB port can be used again. They are therefore disassembled and re-assembled after the front panel has been replaced.
The SINUMERIK OP 015AT 6FC5 203-0AF05-1AB0 operator panel front with 15"TFT color display and 1024 x 768 pixels(XGA) enables the distributed installation of the operator panel front and the controller. It features a membrane keyboard with 62 keys and 2 x(8 +2) horizontal and 2 x 8 vertical softkeys and an integrated mouse. The distance to the 6FC52030AF051AB0 Membrane Keypad Switch operator panel fronts is determined by the maximum distance between two network nodes/access points (100m/328ft). The OP 015AT operator panel front is connected to the PCU/NCU via Ethernet as a Thin Client in its own subnet (via DHCP server to PCU/NCU). Mixed operation with an operator panel connected directly to the PCU is possible. The 6FC5203-0AF05-1AB0 Keyboard Membrane operator panel front is secured from the rear using special clamps supplied with the panel.
Screen saver
If a screen with high contrast is displayed unchanged for longer than 1 hour, the screensaver of Siemens 6FC5 203-0AF05-1AB0 Keypad Membrane must be activated (screen switched dark) to protect the TFT display from "burn-in" of the last displayed screen. You may do irreversible damage to your TFT display if the screen saver of 6FC52030AF051AB0 Membrane Switch is not activated.
Operator panel front of 6FC5 203-0AF05-1AB0 Operator Keyboard
When the 6FC5203-0AF05-1AB0 operator panel front is replaced, the display, keyboard controller, mouse, and USB port can be used again. They are therefore disassembled and re-assembled after the front panel has been replaced.
Specifications:
The table below describes the parameters of the 6FC5203-0AF05-1AB0 Siemens OP015AT HMI Parts.
| Protection: | IP 65 |
| Number of Lines: | 2 |
| Character Size: | 5 mm |
| Warranty: | 6-Months Warranty |
| Product Line: | Siemens OP015AT |
| Flat Screen: | 15'' TFT |
| Part Number: | 6FC5 203-0AF05-1AB0 |
| Input Voltage: | DC 5 V |
| Design as Touch Screen: | Yes |
| Design of Display: | TFT Display |
Related Simatic OP015AT Part No. :
| SINUMERIK Operator panel OP015AT | Description | Inventory status |
| 6FC5203-0AF50-0AA0 | Siemens SINUMERIK HMI OP015 Terminal Keypad Repair | In Stock |
| 6FC5203-0AF50-0DA0 | Siemens OP015-434C Membrane Switch Replacement | Available Now |
| 6FC5203-0AF50-5AA0 | Siemens Operator Keyboard Repair | In Stock |
| 6FC5203-0AF50-6AA0 | Siemens SINUMERIK HMI OP015 Keypad Membrane Replacement | In Stock |
| 6FC5203-0AF53-1AB2 | Siemens TP015AT Membrane Keypad Switch Repair | Available Now |
| 6FC5203-0AF53-1AB3 | Siemens SINUMERIK Keyboard Membrane Replacement | In Stock |
| 6FC5210-0DF22-2AA0 | Siemens SINUMERIK HMI OP015 Terminal Keypad Repair | Available Now |
| 6FC5248-0AF03-0AA0 | Siemens OP015 Switch Membrane Repair | Available Now |
| 6FC5248-0AF25-0AA0 | SINUMERIK HMI OP015 Membrane Keypad Replacement | In Stock |
| 6FC5303-0AF14-0AA0 | Siemens OP015 Membrane Keypad Touch Screen Glass Replacement | Available Now |
| 6FC5303-0AF50-5AA0 | SINUMERIK OP015 Membrane Keyboard Repair | In Stock |
| 6FC5303-0AF50-6AA0 | Siemens OP015 Terminal Keypad Replacement | Available Now |
| Siemens Operator panel OP015AT | Description | Inventory status |
Siemens OP015AT series HMI Manuals PDF Download:
FAQ:
Question:What are the Siemens SIMATIC OP015AT features?
Answer:
•15" TFT flat screen (color) with resolution 1024 x 768 pixels
•Touch screen (analog resistive, 5-wire)
•Slight mounting depth
•Membrane keyboard with alphabetic, numeric, cursor, and control keypad
•Soft keys/direct keys:
– 2 x (8 + 2) horizontal rows of keys with softkey function
– 2 x 8 vertical rows of keys with softkey and direct control key function
– The direct control keys can be connected through the direct control key module
(optional) or directly to the I/O peripherals
Question: What is the size of 6FC5203-0AF05-1AB0 Siemens OP015AT membrane switch?
Answer:It is 15 inch.
Question: What systems are the SINUMERIK TP 015AT 6FC5203-0AF05-1AB0 operator panel front used for?
Answer:
