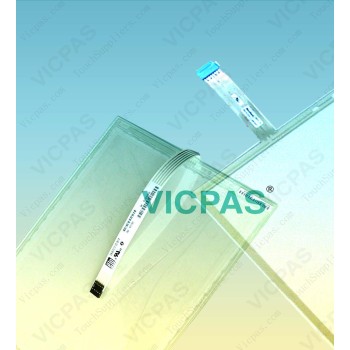

Touch screen for E968598 SCN-A5-FLT18.1-003-0H1-R touch panel membrane touch sensor glass replacement repair

group name: For ELO Touch Panel with 4 / 5 Wires

Min Order: 1 piece

brand name: VICPAS

model: E968598 SCN-A5-FLT18.1-003-0H1-R

Nearest port for product export: Guangzhou, Hongknog, Shenzhen, Taiwan

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Sun, 24 Nov 2024 15:59:25 GMT

contact supplier

Paramtents

Touch screen panel type Resistance touch screen

Packging & Delivery

Min Order1 piece

Briefing

E968598 SCN-A5-FLT18.1-003-0H1-R
It is brand new and good quality with a year warranty.

Detailed

Touch screen for E968598 SCN-A5-FLT18.1-003-0H1-R touch panel membrane touch sensor glass replacement repair

Product Description:
Fit in with	Panel display device
* Performance
Linearity Error	< 1.5%
Response Speed	< 10ms
* Mechanical
Input Method	Finger or gloved hand (rubber, cloth or leather)
Touch Times	More than 1 million touches
Touch Activation Force	20~80g
Surface Durability	Meets pencil hardness 3H (per ASTM D3363)
* Optical
Light Transmission	80%(Meet ASTM D1003)
* Environmental
Temperature	Operating Range: -10° C ~ 60° C
Temperature	Storage Range: -20° C ~ 70° C
Relative Humidity	Operating Range: 0%~90% RH (no dew falls)
Relative Humidity	Storage Range: 0% to 95% RH (no dew falls)
Altitude	Up to 3, 000m
* Electrical
Operation Voltage	Typical +DC 5V
Power Supply	USB or RS232
Interface	Full Duplex USB 2.0 (Full Speed) Plug and play compatible
Interface	Serial RS-232.
Current	5mA~25mA
Electrostatic Endurance	No abnormal appearance after 10kv, 100Ω , 250PF electrostatic used
Isolation Resistance	> 20MΩ @ DC 25V
Resistance	300Ω < X Axis < 900Ω , 200Ω < Y Axis < 800Ω (Varies with different size)
Agency Approvals	CE, FCC, Rohs
Operation System	Linux/ Dos / Windows ME/95/98 / NT4.0/XP/2000/Mac OS

More details:

Company Information:

Guangzhou Vicpas Touch Technology is a manufacturer of touch screen, touch panel, membrane keypad with well-equipped testing facilities and strong technical force.

With a wide range, good quality, short delivery, reasonable prices and stylish designs, our products are extensively used in Industrial, Medical, Pos terminal, GPS, CNC repair and other industries.

Our products are widely recognized and trusted by users from more then 60 countries, we can also design and produce by the Customer's sample.

We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!

Packaging & Shipping

Outer packing is strong carton with Five corrugating medium, inner packing is foam which would protect the product in well condition.

Shipping :

1, shipping via DHL / FedEx / UPS /TNT / TOLL / Aramex / EMS . Fast , Safe , Good service.

2, We will ship the parcels within 1-3 working days after receiving your payment.

3, Normally , you would receive the parcels within 3 - 5 working days. (if ship by DHL / Fedex / UPS air express) .

4, Please make sure your shipping information are all in correct way (including address / post code / phone number / contact person / VAT number ).

Services:

We provide a 1 year warranty for all the touch screens.
