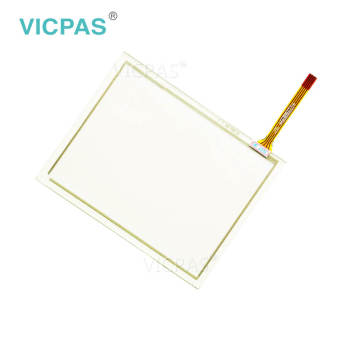

TP-3328S1F0 TP-3327S1F0 TP-3325S1F0 Touch Screen Glass

group name: TP Series

Min Order: 1 piece

brand name: VICPAS

model: TP-3328S1F0 TP-3327S1F0 TP-3325S1F0

Nearest port for product export: Guangzhou, Hongknog, Shenzhen, Taiwan

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Fri, 22 Nov 2024 07:35:32 GMT

contact supplier

Paramtents

Touch screen panel type Resistance touch screen
Warranty 365 Days
Shipping 2-3 workdays
Name TP-3328S1F0 TP-3327S1F0 TP-3325S1F0 Touch Screen Glass

Packging & Delivery

Min Order1 piece

Briefing

TP-3328S1F0 TP-3327S1F0 TP-3325S1F0 Touch Screen Glass. It is brand new and good quality with a year warranty.

Detailed

TP-3328S1F0 TP-3327S1F0 TP-3325S1F0 Touch Screen Glass Repair

Principle of operation of Resistive TP-3328S1F0 TP-3327S1F0 TP-3325S1F0 Touchscreen

Detects input position by load
When the TP-3328S1F0 TP-3327S1F0 TP-3325S1F0 panel is pressed, the upper substrate flexes and the upper and lower ITO electrodes (X/Y electrodes) contact and conduct each other to detect the input.

An insulator (dot spacer) is placed between the upper and lower ITO electrodes to prevent short-circuit between the electrodes when no input is made. Resistive TP-3328S1F0 TP-3327S1F0 TP-3325S1F0 touchscreens can be roughly divided into two types: analog type and digital (matrix) type.

TP-3328S1F0 TP-3327S1F0 TP-3325S1F0 touch panel size: inch, other general size is 3.0'' to 22''. TP-3328S1F0 TP-3327S1F0 TP-3325S1F0 touch screen adopt to panel display device. touch digitizer glass linearity error:< 1.5%. TP-3328S1F0 TP-3327S1F0 TP-3325S1F0 touch screen hmi response speed: < 10ms. TP-3328S1F0 TP-3327S1F0 TP-3325S1F0 touchscreen temperature operating range: -10°C ~ 60°C. TP-3328S1F0 TP-3327S1F0 TP-3325S1F0 touch membrane temperature storage range: -20°C ~ 70°C. TP-3328S1F0 TP-3327S1F0 TP-3325S1F0 touch screen display current: 5mA~25mA. TP-3328S1F0 TP-3327S1F0 TP-3325S1F0 touch screen monitor operation system including: Linux / DOS / Windows ME/95/98 / NT4.0/XP/2000/Mac OS etc.

Contact Best Price

Product Specification:

Size : inch;
Shipping : 2~3 Workdays
Warranty : 365 Days
Contact Bounce : <10ms
Linearity : 1.5%(<1.0% by Request)
Life Expectancy : > 35 million touch on single point

Our advantage:
1.All product are new and original packaging.
2.click on the precise, easy use.
3.reflecting the sensitive.
4.OEM is available.
