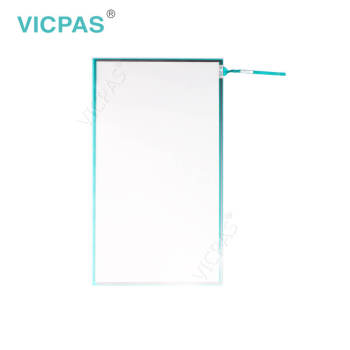

TP-3750S1F0 TP-3754S1F0 TP-3757S1F0 Touch Screen Glass

group name: TP Series

Min Order: 1 piece

brand name: VICPAS

model: TP-3750S1F0 TP-3754S1F0 TP-3757S1F0

Nearest port for product export: Guangzhou, Hongknog, Shenzhen, Taiwan

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Fri, 22 Nov 2024 08:38:28 GMT

contact supplier

Paramtents

Touch screen panel type Resistance touch screen
Keyword Touch Screen Panel
Warranty 365 Days
Shipping 2-4 Workdays
Name TP-3750S1F0 TP-3754S1F0 TP-3757S1F0 Touch Screen Glass

Packging & Delivery

Min Order1 piece

Briefing

TP-3750S1F0 TP-3754S1F0 TP-3757S1F0 Touch Screen Glass. It is brand new and good quality with a year warranty.

Detailed

TP-3750S1F0 TP-3754S1F0 TP-3757S1F0 Touch Screen Glass Repair

Principle of operation of Resistive TP-3750S1F0 TP-3754S1F0 TP-3757S1F0 Touchscreen

Detects input position by load
When the panel is pressed, the upper substrate flexes and the upper and lower ITO electrodes (X/Y electrodes) contact and conduct each other to detect the input.

An insulator (dot spacer) is placed between the upper and lower ITO electrodes to prevent short-circuit between the electrodes when no input is made. Resistive TP-3750S1F0 TP-3754S1F0 TP-3757S1F0 touchscreens can be roughly divided into two types: analog type and digital (matrix) type.

TP-3750S1F0 TP-3754S1F0 TP-3757S1F0 HMI touch glass size: inch and other general size is 3.0'' to 22'' . TP-3750S1F0 TP-3754S1F0 TP-3757S1F0 touch screen adopt to panel display device. TP-3750S1F0 TP-3754S1F0 TP-3757S1F0 touch panel touch times are more than 1 million touches. TP-3750S1F0 TP-3754S1F0 TP-3757S1F0 touch membrane operation system including: Linux / DOS / Windows ME/95/98 / NT4.0/XP/2000/Mac OS etc. TP-3750S1F0 TP-3754S1F0 TP-3757S1F0 touch screen monitor Current: 5mA~25mA. TP-3750S1F0 TP-3754S1F0 TP-3757S1F0 HMI touch screen temperature operating range: -10° C ~ 60° C. TP-3750S1F0 TP-3754S1F0 TP-3757S1F0 MMI touch screen Operation Voltage : Typical +DC 5V.

Contact Best Price

Product Feature:

Size : inch;
Shipping : 2~3 Workdays
Warranty : 365 Days
Contact Bounce : <10ms
Linearity : 1.5%(<1.0% by Request)
Life Expectancy : > 35 million touch on single point

* Performance
Linearity Error : <1.5%
Response Speed : <10ms
Touch Activation Force :20~80g
Storage Range: -20° C ~ 70° C
Temperature Operating Range: -10° C ~ 60° C
Operation System : Linux/ DOS / Windows ME/95/98 / NT4.0/XP/2000/Mac OS
