Paramtents
Brand Name: VICPAS
Place or Origin: China
Shipping: DHL/FedEx/UPS/TNT/EMS/Aramex /DPEX
Touch points: Single-touch
size 5.7 inch
Rated Voltage: DC5V 1mA
Insulation Resistance: ≥20MΩ(25V DC)
Linearity: ≤1.5%
Light Transmission: ≥70%

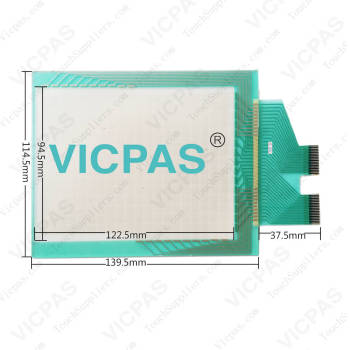

Name: Touchscreen panel for A851GOT-LBD-M3 touch screen membrane touch sensor glass replacement repair
Packging & Delivery
Min Order1 piece
Briefing
Detailed
Guangzhou Vicpas Touch Technology Co.,Ltd
We are mainly design and produce touch screen glass and membrane switch keyboardwhich is especially used in HMI, Kiosk, Pos, Medical Machine, Touch LCD monitor and many other part which need touchscreen and membrane switch keyboard. We can also design with your sample or request. We focus on delivering a high quality product that meets your exact specifications, and exceeds your expectations.
Data sheet:
1.All product are new and original packaging.
2.click on the precise, easy use.
3.reflecting the sensitive.
4.meet bad environment.
5.practicability.
6.no need change any shell and add any auxiliary to the HMI machine.
7.The quality is stable and reliable, took 12months warranty.
8.OEM is available.
Product specification:
NO. | Product structure | Material | Remarks |
1 | upper circuit | ITO FILM | 0.188mm |
2 | lower circuit | ITO GLASS | 2.0mm |
3 | spacer | Adhesive | 0.1mm |
4 | tail | FPC |
|
Environmental characteristics:
NO. | Item | Specification |
1 | Operation temperature | -10℃~+60℃ |
2 | Storage temperature | -20℃~+70℃ |
Electrical characteristics:
NO. | Item | Specification | Remarks |
1 | Rated Voltage | DC 5V 1mA |
|
2 | Linearity | ≤3.0% | Load 120gf |
3 | Resistance | / | FPC At connector |
/ | |||
4 | Insulation Resistance | ≥20 MΩ | DC 25V |
Mechanical characteristics:
NO. | Item | Specification | Remarks |
1 | Operating force | 20-150g | R0.8 by pen |
2 | Hardness of surface | ≥4H | JISK5400 |
3 | Light Transmission | ≥80% |
|
4 | FPC Bending | 1.0mm, more then 3time | 3.2 |
5 | FPC peeling strength | level180, 0.5kgf 10mins | 3.2 |
Outer packing is strong carton with Five corrugating medium, inner packing is foam which would protect the product in well condition.
1, shipping via DHL / FedEx / UPS /TNT / TOLL / Aramex / EMS . Fast , Safe , Good service.
2, We will ship the parcels within 1-3 working days after receiving your payment.
3, Normally , you would receive the parcels within 3 - 5 working days. (if ship by DHL / Fedex / UPS air express) .
4, Please make sure your shipping information are all in correct way (including address / post code / phone number / contact person / VAT number ).
