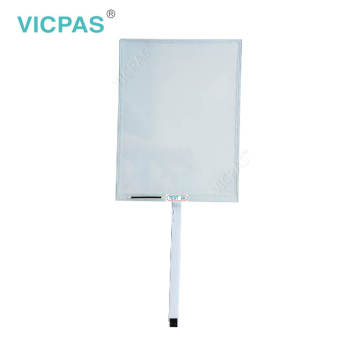

E801181 SCN-A5-FLT12.1-012-0H1-R Touch Screen Panel

group name: For ELO Touch Panel with 4 / 5 Wires

Min Order: 1 piece

brand name: VICPAS

model: E801181 SCN-A5-FLT12.1-012-0H1-R

Nearest port for product export: Guangzhou, Hongknog, Shenzhen, Taiwan

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Fri, 22 Nov 2024 05:55:06 GMT

contact supplier

Paramtents

Warranty 365 Days
Shipping DHL/FedEx/UPS/TNT/EMS/Aramex /DPEX
Keyword Touch Screen Panel
Keyword Touch Screen Glass
Name E801181 SCN-A5-FLT12.1-012-0H1-R Touch Screen Pane

Packging & Delivery

Min Order1 piece

Briefing

E801181 SCN-A5-FLT12.1-012-0H1-R Touch Screen Panel repair. It is brand new and good quality with a year warranty.

Detailed

E801181 SCN-A5-FLT12.1-012-0H1-R Touch Screen Panel Repair

E801181 SCN-A5-FLT12.1-012-0H1-R touch panel size: inch. other custom size is 3.0'' to 24'' . E801181 SCN-A5-FLT12.1-012-0H1-R touch membrane adopt to panel display device. E801181 SCN-A5-FLT12.1-012-0H1-R HMI touch glass light transmission: 80%(Meet ASTM D1003). E801181 SCN-A5-FLT12.1-012-0H1-R touch screen temperature storage range: -20°C ~ 70°C; E801181 SCN-A5-FLT12.1-012-0H1-R touchscreen temperature operating range: -10°C ~ 60°C. E801181 SCN-A5-FLT12.1-012-0H1-R touch screen tablet resistance: 300Ω < X Axis < 900Ω, 200Ω < Y Axis < 800Ω (Varies with different size), E801181 SCN-A5-FLT12.1-012-0H1-R Touch screen display operation system including: Linux / DOS / Windows ME/95/98 / NT4.0/XP/2000/Mac OS etc.

Contact VICPAS for More Information

Product Feature:

Size : inch;
Shipping : 2~3 Workdays
Warranty : 365 Days
* Mechanical
Input Method Finger or gloved hand (rubber, cloth or leather)
Touch Times More than 1 million touches
Touch Activation Force 20~80g

* Electrical
Current 5mA~25mA
Electrostatic Endurance No abnormal appearance after 10kv, 100Ω , 250PF electrostatic used
Isolation Resistance >20MΩ @ DC 25V
Resistance 300Ω < X Axis <900Ω , 200Ω < Y Axis <800Ω (Varies with different size)
Agency Approvals CE, FCC, RoHS
Operation System Linux/ DOS / Windows ME/95/98 / NT4.0/XP/2000/Mac OS
