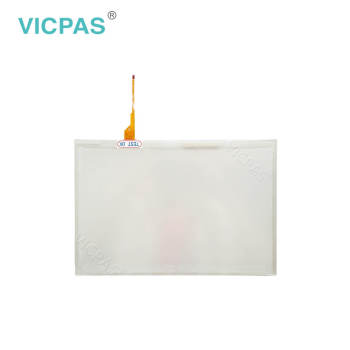

512250-000 SCN-AT-FLT17.5-001-0H1 Touch Screen Glass

group name: For ELO Touch Panel with 4 / 5 Wires

Min Order: 1 piece

brand name: VICPAS

model: 512250-000 SCN-AT-FLT17.5-001-0H1

Nearest port for product export: Guangzhou, Hongknog, Shenzhen, Taiwan

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Thu, 21 Nov 2024 21:12:03 GMT

contact supplier

Paramtents

Warranty 365 Days
Shipping DHL/FedEx/UPS/TNT/EMS/Aramex /DPEX
Keyword Touch Screen Panel
Keyword Touch Screen Glass
Name 512250-000 SCN-AT-FLT17.5-001-0H1 Touch Screen Gla

Packging & Delivery

Min Order1 piece

Briefing

512250-000 SCN-AT-FLT17.5-001-0H1 Touch Screen Glass repair. It is brand new and good quality with a year warranty.

Detailed

512250-000 SCN-AT-FLT17.5-001-0H1 Touch Screen Glass repair

512250-000 SCN-AT-FLT17.5-001-0H1 touch screen size: inch. and other general size is 3.0'' to 22'' . 512250-000 SCN-AT-FLT17.5-001-0H1 touchscreen adopt to panel display device. 512250-000 SCN-AT-FLT17.5-001-0H1 touch panel touch times are more than 1 million touches. 512250-000 SCN-AT-FLT17.5-001-0H1 touch screen monitor Current: 5mA~25mA, 512250-000 SCN-AT-FLT17.5-001-0H1 HMI touch screen temperature operating range: -10° C ~ 60° C, 512250-000 SCN-AT-FLT17.5-001-0H1 MMI touch screen Operation Voltage : Typical +DC 5V. 512250-000 SCN-AT-FLT17.5-001-0H1 touch membrane operation system including: Linux / DOS / Windows ME/95/98 / NT4.0/XP/2000/Mac OS etc.

Contact VICPAS for More Information

Product Feature:

Size : 17.5 inch;
Shipping : 2~3 Workdays
Warranty : 365 Days
* Mechanical
Input Method Finger or gloved hand (rubber, cloth or leather)
Touch Times More than 1 million touches
Touch Activation Force 20~80g

* Electrical
Current 5mA~25mA
Electrostatic Endurance No abnormal appearance after 10kv, 100Ω , 250PF electrostatic used
Isolation Resistance >20MΩ @ DC 25V
Resistance 300Ω < X Axis <900Ω , 200Ω < Y Axis <800Ω (Varies with different size)
Agency Approvals CE, FCC, RoHS
Operation System Linux/ DOS / Windows ME/95/98 / NT4.0/XP/2000/Mac OS
