XBTGT1105 XBTGT1135 Schneider Electric HMI Part Replacement
- group name
- Magelis XBT GT/GTW/GK
- Min Order
- 1 piece
- brand name
- VICPAS
- model
- Schneider XBTGT1105 XBTGT1135 XBTGT 1105 XBTGT1135
- Nearest port for product export
- Guangzhou, Hongknog, Shenzhen, Taiwan
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Mon, 25 Nov 2024 16:57:52 GMT
Paramtents
Warranty 1 Year VICPAS Warranty
Shipping DHL/FedEx/UPS/TNT/EMS/Aramex /DPEX
Name Schneider XBTGT1105 XBTGT1135 Touchscreen
Packging & Delivery
-
Min Order1 piece
Briefing
Detailed

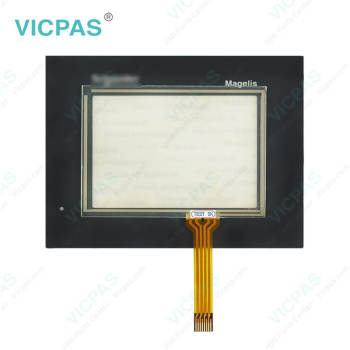

XBTGT1105 XBTGT1135 Schneider Electric HMI Part Replacement
Order each part separately is available
The XBTGT1105 XBTGT1135 HMI Part is a Schneider Magelis XBT GT 3.8-inch HMI that make use of an Analogue resistive touch panel. Its dimensions are 87 mm long and 68.6 mm wide and the length of the cable is 58mm. Users can input and set the machine’s parameters through the 65536 colours trans-missive, thin-film transistor colour active matrix, 3.8-inch LCD display screen with a display dimension of 6.6in x 5.32in and a touch sensitive zone of 320 x 240 pixels QVGA LCD Display.
This Schneider Magelis XBT GT is powered using 24 VDC power. The most common series is Series A. The Magelis HMI XBTGT product line contains a group of panel-mount display units that have both keypad or touch-screen offering for the user input method. These HMI terminals are available in 3.8-inch, 5.7-inch, 7-inch, and 10-inch display sizes. The XBTGT1105 XBTGT1135 user manual product date sheet and you can send an email for best price.
The HMI Magelis XBTGT1105 XBTGT1135 has an analogue resistive surface touch and a LED backlight with a standby time of up to 50,000 hours. It has a battery-backed real-time clock with a battery lifespan of 6 years when used at a temperature below 80 °F. It also has a factory-built internal cache memory of 256 MB for storing the user settings and application parameters.
Specifications:
The table below describes the parameters of the XBTGT1105 XBTGT1135 HMI Part touchscreen and protective film.
| Part Number : | XBTGT1105 XBTGT1135 |
| Product Line: | Magelis XBTGT Series |
| Touchscreen Size: | 3.8 in. |
| Warranty: | 1-Year Warranty |
| Touch Technology: | Resistive |
| Rated Voltage: | DC 5V 1mA |
| Operating Temp.: | -10℃～+80℃ |
| Storage Temp.: | -20℃～+70℃ |
| lineation test: | ≥1.000.000 times |
| Input Type: | ≥100.000 times |
PDF Download:
Magelis XBTGT Series Part No.
| Magelis XBTGT | Description | Inventory status |
| XBTGT1100 | advanced touchscreen panel- 3.8" TFT LCD - 24 V DC | In Stock |
| XBTGT1130 | advanced touch panel glass- 3.8" TFT display | In Stock |
| XBTGT1335 | advanced touch glass- 3.8" TFT display | In Stock |
| XBTGT2110 | Touch Screen Replacement-5.7'' | In Stock |
| XBTGT2120 | Touch Membrane Screen-5.7'' | In Stock |
| XBTGT2130 | Touch Panel Glass -5.7-inch HMI Parts | In Stock |
| XBTGT2220 | Touch Screen Panel-5.7'' HMI Part | In Stock |
| XBTGT2330 | advanced touchscreen panel- 5.7" TFT LCD - 24 V DC | In Stock |
| XBTGT2930 | advanced touchscreen panel- 5.7" TFT LCD - 24 V DC | In Stock |
| XBTGT2430 | touchscreen panel- 5.7" TFT LCD display | In Stock |
| XBTGT4230 | advanced touchscreen panel - 320 x240 QVGA - 7.5" | In Stock |
| XBTGT4330 | Touch Screen Panel-7.5'' display | In Stock |
| XBTGT4340 | Touch Screen Glass-7.5'' LCD Display | In Stock |
| XBTGT5230 | Touchscreen Panel Glass-10.4'' Lcd Display | In Stock |
| XBTGT5330 | Touch Panel Repair-10.4'' for Replacement | In Stock |
| XBTGT5340 | Touch Glass Membrane -10.4'' for Repair | In Stock |
| XBTGT5430 | Touch Screen Panel -10.4'' Display | In Stock |
| XBTGT6330 | advanced touchscreen panel - 800 x 600 pixels - 12.1" | In Stock |
| XBTGT6340 | touchscreen panel glass - 12.1" LCD Display | In Stock |
| XBTGT7340 | Touch Screen Panel Glass-15'' HMI Parts | In Stock |
| Magelis XBT GT | Description | Inventory status |
FAQ:
Question: Is the internal backlight replaceable?
Answer: No, the internal backlight of XBTGT1105 XBTGT1135 is not replaceable.
Question: Is the battery replaceable?
Answer: No, the battery of XBTGT1105 XBTGT1135 is not replaceable.
Question: What is the price of XBTGT1105 XBTGT1135 HMI Parts?
Answer: Submit a quote request, send us an email for our best price.
Common misspellings:
BTGT1105
XTGT1105
XBGT1105
XBTT1105
XBTG1105
XBTGT105
XBTGT105
More information about Schneider Magelis HMI Parts
