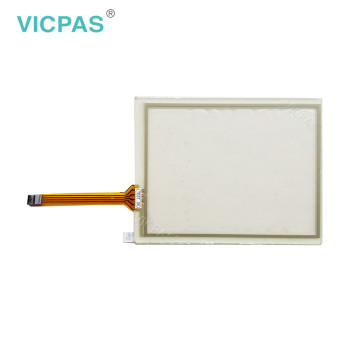

Beijer Electronics HMI EPC T190 C2D Touch Screen Replacement

group name: Other Old Beijer HMI Part

Min Order: 1 piece

brand name: VICPAS

model: EPC T190 C2D

Nearest port for product export: Guangzhou, Hongknog, Shenzhen, Taiwan

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Fri, 22 Nov 2024 06:01:06 GMT

contact supplier

Paramtents

Brand Beijer
Size 19 inch
Product Line EPC series
Resolution 1280 x 1024
Supply EPC T190 C2D Touch Screen
Warranty 365 Days

Packging & Delivery

Min Order1 piece

Briefing

Beijer Electronics HMI EPC T190 C2D Touch Panel Replacement. 365 Days Warranty-Fully Tested-Factory Prices-Fast Shipping

Detailed

Beijer HMI EPC T190 C2D Touch Panel Repair Replacement

Beijer HMI EPC T190 C2D Touchscreen Repair Replacement

EPC T190 C2D C2D 19" Maritime Panel PC, Touch or antireflection glassMarine PCs by Beijer Electronics meet the special requirements essential for shipbuilding with a product range, 8.4" to 26" and certifications by all major nautical associations.The EPC T190 C2D C2D features a fully certified marine PC with 19" TFT display and choice between touch screen or antireflection glass, LCD brightness dimmable to zero.

Beijer Electronics EPC series is designed for installation in acontrol cabinet, either as Panel PC in front door or as Box PCinside. EPC series represents a powerful platform for factoryfloor applications and are suitable for demanding visualization orcontrol tasks where sufficient room for plug-in cards is required.These include SCADA software packages, image processing and SQL databases.The industry-friendly touch interface allows youto enter parameters directly on the screen.

It is increasingly used in LAN networks with parent systems,particularly thanks to the fast GBit networks. A multitude ofonboard interfaces and optional ﬁ eldbus connections makethe EPC C2D a multitalent in connection with other controlcomponents.

VICPAS supply Beijer EPC T190 C2D Touch Panel with 365 days warranty and support Urgent Worldwide Shipping.

Contact Best Price

Specifications:

The table below describes the parameters of the 100-0583 Beijer EPC T190 C2D HMI Parts.

Brand:	Beijer
Part number:	EPC T190 C2D
Size:	19 INCH
Warranty:	365 Days Warranty
Product Line:	EPC Series

Size diagonal:	1280 x 1024 pixel
Display type:	TFT-LCD
Touch type:	Resistive touch
Degree:	IP65 on the front
Keypad / mouse:	2 x PS/2

Beijer EPC T190 C2D Touch Panel HMI Manuals PDF Download:

Beijer EPC T190 C2D datasheet pdf

Beijer EPC T190 C2D HMI manual pdf

FAQ:

Question: How to ground the EPC Series Operator Panel?

Answer:1. Connect a 2.5mm2 wire between the operator panel’s quick-connect plinth and the panel’s chassis, see 2 in drawing above.
2. Connect a 6mm2 or 4mm2 wire or grounding braid between the operator panel’s chassis and the closest grounding point on the door, see 3 in drawing above.
3. Connect a strong but short grounding braid between the door and the devicecabinet, see 4 in drawing above.
4. Twist the cables onto the 24VDCfeed, see 5 in drawing above. Minimumcross-section of the cable is 2.5mm2.2 turns around the ferrite core provide 4 times the suppression of 1 turn.3 turns around the ferrite core provide 9 times the suppression of 1 turn.

Question: Why the Beijer EPC T190 C2D HMI have the chemical resistance?

Answer:Autoflex EBA180L covers the overlay surrounding the screen.

Question: What is Beijer EPC T190 C2D Touchscreen and Overlay HMI parts price?

Answer: Submit a fast quote, send VICPAS an email for best price.
