ESA Text HMI VT130W VT130W00000 Membrane Keyboard Replacement

group name: VT Text & Graphic

Min Order: 1 piece

brand name: VICPAS

model: VT130W00000

Nearest port for product export: Guangzhou, Hongknog, Shenzhen, Taiwan

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Fri, 22 Nov 2024 13:10:27 GMT

contact supplier

Paramtents

Brand ESA
Warranty 180 Days
Product Line VT Text
Supply VT130W Membrane Keypad

Packging & Delivery

Min Order1 piece

Briefing

ESA HMI VT130W VT130W00000 Operator Panel Membrane Keypad. 6-months Warranty-Fully Tested-Factory Prices-Fast Shipping

Detailed

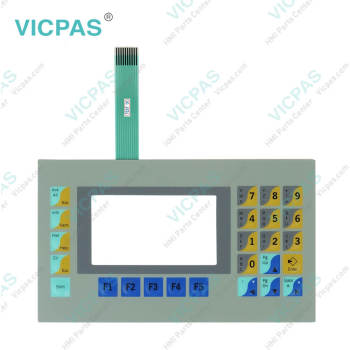

ESA TEXT HMI VT130W VT130W00000 Membrane Keyboard Replacement

ESA TEXT HMI VT130W VT130W00000 Membrane Keyboard Repair Replacement

HMI with 3” graphic LCD display, STN 4tones of blue, 160×80, 512 KB project,clock, 128 KB recipes, 25 operative keys(5 function keys, 20 customizable).Available also with Profibus-DPnetwork

ESA VIDEO TERMINAL (VT) is a device that allows the user to control orsimply monitor a productive process. It can send commands using configuredby the user; it can send data determining the process on hand andcan display information deriving from the productive process. The informationcan be in the form of an Alarm, an Information (Info-) Message or inbinary data format.

VICPAS supply ESA TEXT HMI VT130W membrane switch with 6 months warranty and support Urgent Worldwide Shipping.

Contact Best Price

Specifications:

The table below describes the parameters of the ESA VT130W00000 HMI Parts.

Brand:	ESA
Display Type:	Graphic LCD STN
Resolution:	160 x 80 (3”)
Warranty:	6-Months Warranty
Product Line:	VT TEXT

Display Type:	TEXT LCD
Columns by rows:	20 * 4
Display area size:	67 x 37
Input voltage:	18 - 32 V DC
Part Number:	VT130W00000

Related ESA VT130W Part No. :

ESA VT130W	Description	Inventory status
VT130W000DP	ESA Text HMI VT130W VT130W000DP Membrane Keypad Replacement	In Stock
VT130W00000	ESA Text HMI VT130W VT130W00000 Membrane Keyboard Replacement	In Stock
ESA VT TEXT	Description	Inventory status

ESA VT130W Operator Panel HMI Manuals PDF Download:

ESA HMI VT Series Manuals

ESA VT TEXT HMI datasheet pdf

FAQ:

Question: How to adjust the contrast on the ESA VT130W Display?

Answer:To improve the quality of the representation on the display it may be necessaryto adjust its contrast. This can be done by rotating the trimmer (C) atthe back of the VT ; turn it (using a small screwdriveror a trimmer tool) in one direction and, if the display quality worsens,turn it the other way.

Question: What is the VT130W Termination of CAN line?

Answer:The VT in question integratesthe termination resistances of the serial line (typically 120 ohms)which can be inserted by means of a jumper (preset on 1-2, line not terminated).To activate the termination:
• Make sure the device is not connected to the power supply.
• Remove the cover.
• Identify the jumper unit J2.
• Position the jumper between pins 2 and 3 (line terminated).
• Replace the back cover.
• Reconnect the power supply.

Question: What is ESA VT130W mebrane keyboard HMI parts price?

Answer: Submit a fast quote, send VICPAS an email for best price.
