ESA Terminals HMI VT505H 000CN Touch Panel Replacement

group name: VT Terminal

Min Order: 1 kilogram

brand name: VICPAS

model: VT505H000CN

Nearest port for product export: Guangzhou, Hongknog, Shenzhen, Taiwan

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Fri, 22 Nov 2024 06:48:00 GMT

contact supplier

Paramtents

Brand ESA
Size 5.7 inch
Warranty 365 Days
Product Line Touch screen terminals
Supply VT505H Touch Screen and Overlay

Packging & Delivery

Min Order1 kilogram

Briefing

ESA HMI VT505H VT505H000CN Touchscreen Protective Film Replacement. 6-months Warranty-Fully Tested-Factory Prices-Fast Shipping

Detailed

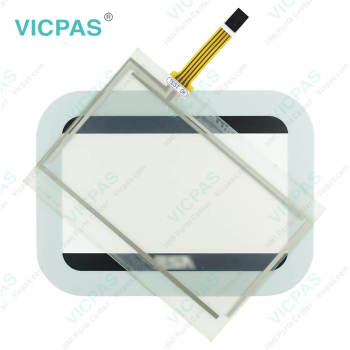

ESA Touch Screen Front Overlay Terminals VT505H000CN Touch Panel Replacement

Order each part separately is available

ESA Touchscreen Terminal VT505H VT505H000CN Touch Screen Protective Film Repair Replacement

VT505H Graphic LCD 4 tones of blue STN320 x 240 (5.7”)10 Touches Protective Film function Terminal Repair Kit

VT505H VT operator terminals Main characteristics (modeldependant)::
•Compatible with all otherterminals
•Two way “Operator present”button
•Ten laterally positioned
•Emergency button
•Stop button and start buttonwith light
•IP65 protection

ESA VT505H HMI function allows variables and translations to be exported into filesthat can easily be edited using Excel or a text-editor. Once edited, thefile can be re-imported and VTWIN will automatically associate thetranslations, while the variables will be immediately available to be usedto create new project components

VICPAS supply ESA Touchscreen Terminal VT505H Touch Panel and Front Overlay with 365 days warranty and support Urgent Worldwide Shipping.

Contact Best Price

Specifications:

The table below describes the parameters of the ESA VT505H000CN HMI Parts.

Brand:	ESA
Resolution:	320x240
Backlighting:	CCFL
Warranty:	6-Months Warranty
Product Line:	Touch Terminal

Display Type:	Graphic LCD TFT
Touch Screen Matrix:	20x16 (16x15)
Display area size:	4.53x3.4
Size:	5.7"
Part Number:	VT505H000CN

Related ESA VT505H Part No. :

ESA VT505H	Description	Inventory status
VT505H00000	ESA Terminals HMI VT505H00000 Touch Screen Replacement	In Stock
VT505H000CN	ESA Terminals HMI VT505H 000CN Touch Panel Replacement	In Stock
ESA VT TOUCH	Description	Inventory status

ESA VT505H Operator Panel HMI Manuals PDF Download:

ESA HMI VT Series Manuals

ESA VT Touchscreen Terminal datasheet pdf

FAQ:

Question: How to operate the VT505H Terminal with touchscreen overlay?

Answer:To be able to carry out a change in any editable variable field you musttouch the chosen field on the display and a page appears offering theneeded to modify the field.

Question: What is the VT505H Termination of CAN line?

Answer:The VT in question integratesthe termination resistances of the serial line (typically 120 ohms)which can be inserted by means of a jumper (preset on 1-2, line not terminated).To activate the termination:
• Make sure the device is not connected to the power supply.
• Remove the cover.
• Identify the jumper unit J2.
• Position the jumper between pins 2 and 3 (line terminated).
• Replace the back cover.
• Reconnect the power supply.

Question: What is ESA VT505H Touch Screen and Protective Film HMI parts price?

Answer: Submit a fast quote, send VICPAS an email for best price.
