ESA IT HMI Terminal IT105S 0121 Touchscreen Replacement

group name: IT Touch

Min Order: 1 kilogram

brand name: VICPAS

model: IT105S0121

Nearest port for product export: Guangzhou, Hongknog, Shenzhen, Taiwan

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Tue, 26 Nov 2024 07:13:34 GMT

contact supplier

Paramtents

Brand ESA
Size 5.7 inch
Warranty 365 Days
Product Line Touch screen terminals
Supply IT105S 0121 Touch Screen and Overlay

Packging & Delivery

Min Order1 kilogram

Briefing

ESA HMI IT105S0121 IT Touch Panel Front Overlay Terminal Repair. 6-months Warranty-Fully Tested-Factory Prices-Fast Shipping

Detailed

ESA Touch Screen Protective Film IT105S0121 Touch Screen Replacement

Order each part separately is available

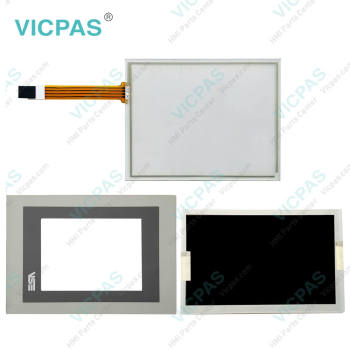

ESA Touchscreen Terminal IT105S IT105S0121 Touch Screen Front Overlay Repair Replacement

ESA IT105S 0111 5,7“ STN 320x240 16 tones of bule Touch Screen Front Overlay Terminal Repair Kit, which in clude touchscreen and protective flim

IT105S0121 operator terminals ensure maximum availability of drivers and a full coverage of the PLC market and of otherdevices, such as drives, inverters and temperature controllers, including:
• Profibus-DP at 12 Mbit/s (addressing up to 127 terminals)
• Interbus-S at 500 Kbit/s (addressing up to 127 terminals)
• CAN (through built-in port or external adapter)
• Modbus in master and slave mode
• TCP/IP protocol support

VICPAS supply ESA Touchscreen Terminal IT105S Touch Panel and Protective Film with 365 days warranty and support Urgent Worldwide Shipping.

Contact Best Price

Specifications:

The table below describes the parameters of the ESA IT105S0121 HMI Parts.

Brand:	ESA
Resolution:	320 x 240 pixel
Size:	5.7 INCH
Warranty:	6-Months Warranty
Product Line:	Touch Terminal

Display Type:	Graphic LCD STN
Backlight:	CCFL
Touch screen:	Analog
Input voltage:	18 - 32 V DC
Part Number:	IT105S0121

Related ESA IT105S Part No. :

ESA IT105S	Description	Inventory status
IT105S0131	ESA IT HMI Terminal IT105S 0131 Touch Screen Replacement	In Stock
IT105S0121	ESA IT HMI Terminal IT105S 0121 Touchscreen Replacement	In Stock
IT105S0111	ESA IT HMI Terminal IT105S 0111 Touch Panel Replacement	In Stock
IT105S0101	ESA IT Touch Screen Terminal IT105B0131 Replacement	In Stock
ESA IT TOUCH	Description	Inventory status

ESA IT105S Operator Panel HMI Manuals PDF Download:

ESA HMI IT Series Manuals

ESA IT Touchscreen Terminal datasheet pdf

FAQ:

Question: How to collect and process the IT105S data?

Answer:The operator panels in the IT range can be connected to a production plantand the production data can be exported directly to a remote PC throughthe integrated Ethernet port. Just indicate the names of the variables to bemonitored and, when necessary, their values are automatically read by thePLC and processed directly in an Excel file. In addition, the file can be savedon removable media devices automatically or on a shared folder on aremote PC.

Question: What is the IT105S Termination of CAN line?

Answer:The VT in question integratesthe termination resistances of the serial line (typically 120 ohms)which can be inserted by means of a jumper (preset on 1-2, line not terminated).To activate the termination:
• Make sure the device is not connected to the power supply.
• Remove the cover.
• Identify the jumper unit J2.
• Position the jumper between pins 2 and 3 (line terminated).
• Replace the back cover.
• Reconnect the power supply.

Question: What is ESA IT105S Touch Screen and Protective Film HMI parts price?

Answer: Submit a fast quote, send VICPAS an email for best price.
