Panasonic Robot G3 Teach Pendant Replacement Part

group name: Panasonic Teach Pendant

Min Order: 1 piece

brand name: VICPAS

model: AUR01062 TA1400G3 TM1400G3

Nearest port for product export: Guangzhou, Hongknog, Shenzhen, Taiwan

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Thu, 21 Nov 2024 16:51:57 GMT

contact supplier

Paramtents

Warranty 365 Days
Shipping 2-4 workdays
Brand Panasonic
Model Panasonic AUR01062 TA1400G3 TM1400G3
Supply Teach Pendant Control Replacement Parts

Packging & Delivery

Min Order1 piece

Briefing

Panasonic Robot G3 AUR01062 TA1400G3 TM1400G3 Keypad LCD Housing. 365 days Warranty-Fully Tested-Factory Prices-Fast Shipping

Detailed

Panasonic G3 Teach Pendant Controller AUR01062 TA1400G3 TM1400G3 keypad switch LCD display Plastic case cover Replacement

Order each part separately is available

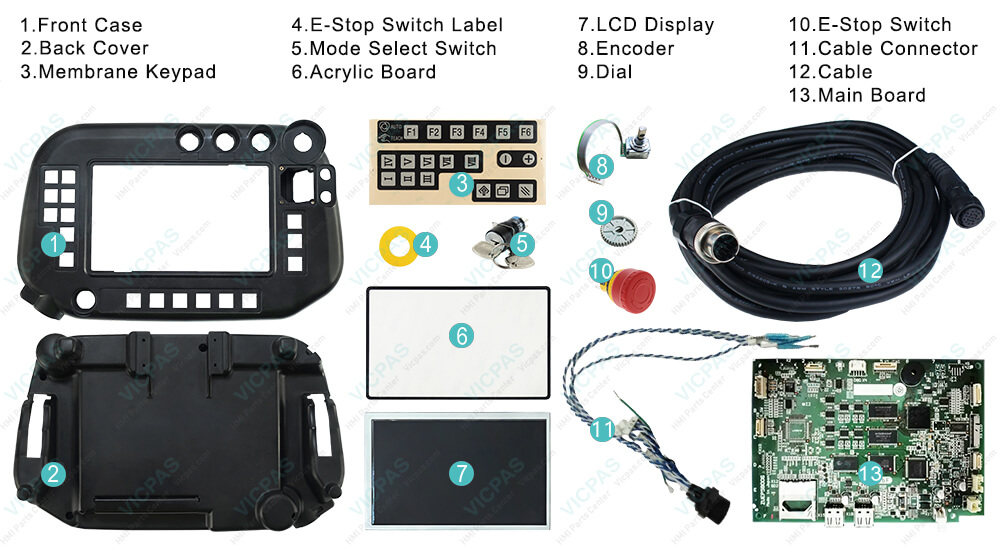

Panasonic G3 Teach Pendant Controller AUR01062 TA1400G3 TM1400G3 keypad switch, LCD display, protective case cover, E-Stop Switch Label, Acrylic Board, Mode Select Switch replacement

Panasonic G3 Robot AUR01062 TA1400G3 TM1400G3 Terminal Keypad LCD Screen Plastic Enclosure HMI Controller
 C-like advanced programming language
 64 bit CPU
 Controls maximum 27 axes
 3 robots synchronization
 "Multi-mechanism control"-maximum 6 groups multi task
 Standard 40000 points memory
 Standard user I/O 40 each. Option I/O 504 each
 Multi welding control for maximum 5 digital power sources

Windows CE™ based Panasonic AUR01062 TA1400G3 TM1400G3 Teach Pendant G3 Controller provides icon based user-friendly programming with wide 7"colour display and jog dial. Panasonic AUR01062 TA1400G3 TM1400G3 Keyboard Membrane LCD Panel Plastic Shell Teach Pendant has access to the network by Ethernet, which enables advanced production management and quality control.

VICPAS supply Panasonic AUR01062 TA1400G3 TM1400G3 Teach Pendant G3 Controller spare part to replace, make the teach pendant running. We provide a 1-year warranty of the most product, which include most of AUR01062 TA1400G3 TM1400G3 membrane keypad, LCD display, E-Stop Switch Label, Acrylic Board, Mode Select Switch and protective case shell housing.

Contact Best Price

Specifications:

The table below describes the parameters of the Panasonic Robot G3 AUR01062 Teach Pendant.

Model Number :	AUR01062
Product Line:	Panasonic G3
Display Type:	TFT color graphic LCD
Warranty:	1-Year Warranty

Display Size:	7" colour LCD
Memory in TP:	IC memory
SD memory card slot:	1 slot
USB 2.0 port:	2

Panasonic Teach Pendant Manuals PDF Download:

Panasonic TM-TL(GⅢ)E Manual

Panasonic AUR01062 Operating Instructions

FAQ:

Question: How to connecting Panasonic Robot G3 teach pendant?

Answer:
Note: Do not bend the TP cable near the connector and connect it to the controller. Otherwise, connecting pins may be damaged.
Connect the TP cable to the connector of the teach pendant.
Match the match-marks (concave) at the connector of the TP cable with the match-marks (convex) at the connector of the teach pendant, and then fasten the cable ring.
Note:
When fastening the cable ring
Do not fasten the ring tight at one time and forcedly. Turn the ring a little and push the cable in and repeat the procedure until the ring is set completely.
Fastening the ring forcedly may cause damage or malfunction of the machine.
How to connecting Panasonic Robot G3 teach pendant?

Question: What is the price of Panasonic Robot G3 AUR01062 TA1400G3 TM1400G3 membrane keypad with case(shell), LCD Display?

Answer: Submit a fast quote, send VICPAS an email for best price.
