Paramtents
Brand Higgstec Touch Screen
Display Size 7 inch
Warranty 365 Days
Shipping 2-4 workdays

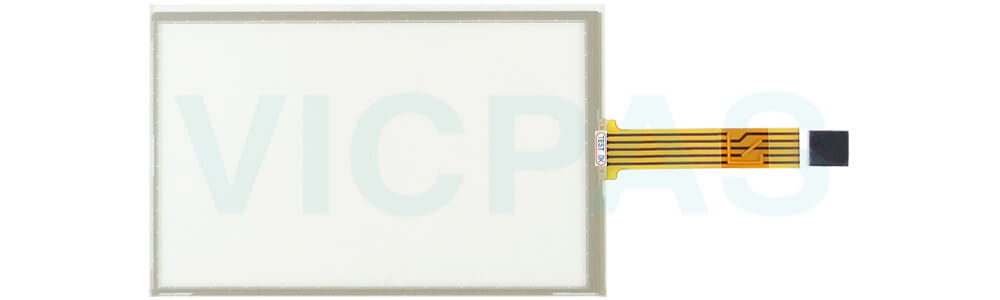

Supply Parts T070C-5RB0104N-0A18R0-200F Touchscreen Panel Glass
Touch screen panel type Resistance touch screen
Packging & Delivery
Min Order1 piece
Briefing
Detailed
Higgstec T070C-5RB0104N-0A18R0-200FH True Flat Resistive touch solution combines the simplicity, versatility and durability of our 5-wire resistive technology with an attractive zero-bezel design. The flush surface is easier to clean and there will be no dust or dirt buildup or water leakage into the bezel, making it an excellent solution for sterile or dust free environments such as medical clinics, scientific laboratories, restaurants or food processing areas. What's more, you now also incorporate features such as logos or hotkey buttons on the cover design.
Benefits of Higgstec T070C-5RB0104N-0A18R0-200FH True Flat Resistive Touch Digitizer Glass Solution
(1) Appearance
Flush zero-bezel surface, more visually attractive surface, more visually attractive, more customization and easier to keep clean, prevents dirt/ dust build-up or water to enter via bezel
(2) Durability
Tested for up 35 million touches. Higgstec T070C-5RB0104N-0A18R0-200FH Touchscreen Panel Glass High-temperature production process ensures excellent durability even in harsh operating temperatures.
(3) Operation
Precise linearity, stable and no drifting. Versatile input: fingers, gloves, passive stylus.
(4) Mechanical
Higgstec T070C-5RB0104N-0A18R0-200FH Touch Screen Monitor 5-Wire resistive design ensures long-lasting stability and functionality even if surface is scratched or broken. Hotkey buttons can be incorporated onto front bezel.
The table below describes the parameters of the Higgstec T070C-5RB0104N-0A18R0-200FH Touch Panel Spare Part.
Number of Touches: | Single |
Product Line: | Higgstec |
Interface: | USB / RS232 / COMBO |
Warranty: | 1-Year Warranty |
Touch Activation Force: | Stylus ≦ 50g |
Display Size: | 7 inch |
Linearity: | X ≦ 1.5%, Y ≦ 1.5% |
Tail Options: | FFC/ FPC tail |
Resolution: | 4096 X 4096 |
Response time: | ≦ 20ms |
Related Higgstec Touch Screen HMI Part No. :
Higgstec Touch Screen | Description | Inventory status |
T070C-5RB010N-0A11R0-200FH | Higgstec Touch Screen Glass Replacement | In Stock |
T070C-5RB094N-0A11R0-076FW | Higgstec Touch Screen Panel Replacement | Available Now |
T070S-5RB003N-0A11R0-080FH | Higgstec HMI Touchscreen Repair Part | In Stock |
T070S-5RB003N-0A11R0-080FH-C | Higgstec HMI Touch Screen Glass | Available Now |
T070S-5RB013N-0A11R0-080FH | Higgstec Touch Screen Panel Repair | In Stock |
T070S-5RB013N-0A11R0-080FH-C | Higgstec Touch Membrane Repair | In Stock |
T070S-5RB018X-0A11R0-080FH | Higgstec HMI Touch Glass Repair | In Stock |
T070S-5RBA05N-0A11R0-200FH | Higgstec HMI Panel Glass Replacement | Available Now |
T070S-5RBA13N-0A11R0-080PN | Higgstec Touch Digitizer Glass Repair | Available Now |
T070S-5RBA18X-0A18R0-080FH | Higgstec Touch Screen Monitor Repair | In Stock |
Higgstec Touch Panel | Description | Inventory status |
Question: How to test Higgstec T070C-5RB0104N-0A18R0-200FH Touch Screen Panel Glass?
Answer:
Linearity Condition
Step 1: short RT and RL (or short RL and LL).
Step 2: apply voltage DC 5V.
Step 3: short LT and LL (or short RT and LT).
Step 4: apply grounding.
Step 5: draw points along LX and LY at 5.0mm intervals within pattern area and detect the voltage at SG.
Step 6: measure the voltage differences between RT and LT (or RT and RL)
