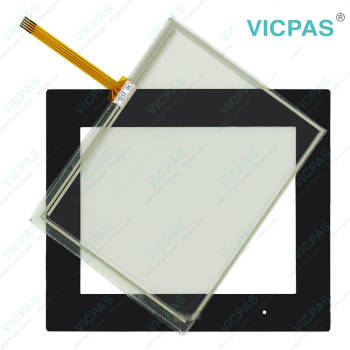

IDEC HG2G-5ST22VF-B Protective Film Touchscreen Repair

Order each part separately is available

Protective Sheet of IDEC HG2G-5ST22VF-B Touch Panel Protective Film

1. Wipe any dirt off the display using a soft cloth slightly dampened with neutral detergent or alcoholic solvent.
2. Remove the back sheet of the protective sheet.
3. The tab of the protective sheet should be positioned at lower left. Align the right side of the protective sheet with that of the HG2G-5ST22VF-B Front Overlay Touch Screen Display, then apply the protective sheet onto the display. Care should be taken to avoid ingress of air.
4. On the top of protective sheet, a thin cover sheet is applied to prevent the protective sheet from being damaged during transportation. Remove it before using the HG2G-5ST22VF-B Overlay Film HMI Touch Glass.
5. When a protective sheet gets dirty or damaged, replace the protective sheet with a new one. When replacing the sheet, remove the used adhesives completely. The Protective Sheet has no protection effect against chemicals. HG2G-5ST22VF-B Touch Membrane Front Overlay has used a special material to filter out UV rays, however no warranty is given as to be installed in direct sunlight of outside.
6. Make sure that the specifications of the product conform to your requirements, and that no parts are missing or damaged due to accidents during transportation.

Mounting Caution

If the mounting clips are tightened obliquely to the panel, the HG2G-5ST22VF-B Protective Film HMI Panel Screen may fall off the panel. When installing the IDEC HG2G into a panel cut-out, make sure that the gasket is not twisted especially when re-installing, take special care because any twists in the gasket will impair the waterproof characteristics.
