PWS6800T-N Touch Panel Switch Membrane Film LCD Plastic Case

group name: Hitech PWS Series

Min Order: 1 piece

brand name: VICPAS

model: PWS6800T-N

Nearest port for product export: Guangzhou, Hongknog, Shenzhen, Taiwan

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Sun, 24 Nov 2024 12:28:32 GMT

contact supplier

Paramtents

Brand Beijer
Size 7.5 inch
Warranty 365 Days
Product Line PWS Series
Supply PWS6800T-N Repair Kit

Packging & Delivery

Min Order1 piece

Briefing

Beijer HMI HITECH PWS6800T-N Touch Screen Protective Film Housing. 6-months Warranty-Fully Tested-Factory Prices-Fast Shipping

Detailed

Beijer HMI PWS6800T-N Touch Screen Panel Front Overlay Plastic Shell Repair Replacement

Order each part separately is available

Beijer PWS6800T-N Operator Panel Touch screen Overlay Enclosure Repair Replacement

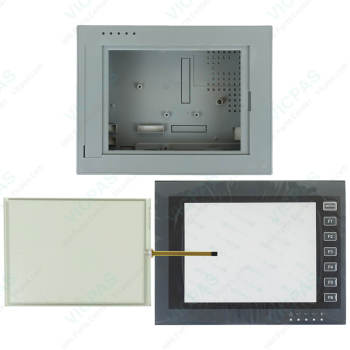

Beijer PWS6800T-N 7.5'' graphic touch HMI kits include touchscreen, HMI Case and overlay

• 16 shades of blue
• STN display
• COM Port x1
• 800x480 pixels

HITECH-PWS series offers valuable fundamental HMI functionality. The series include keypad and touchscreen interfaces and will be available in seven different sizes. The PWS series provides valuable basic HMI functions. This series includes a keyboard and touch screen interface, from 3 to 10.4 inches in 7 different sizes. The PWS series provides three functional levels: Standard, Plus and Network, and you can select and purchase the required HMI technology level. As an operating terminal, the Standard version contains most of the hardware and software requirements that should exist in terms of existing sizes. The Plus version has the same functions as the Standard version, and has expanded memory for data/recipe processing, and a multi-function port for output.

VICPAS supply Beijer PWS6800T-N Protective Film, Plastic Case and touchscreen with 12 months warranty and support Urgent Worldwide Shipping.

Contact Best Price

Specifications:

The table below describes the parameters of the Beijer PWS6800T-N HMI Parts.

Brand:	Beijer
Touch type:	Resistive
Housing material:	Plastic, Gray
Warranty:	6-Months Warranty
Product Line:	Beijer HITECH PWS

Display Type:	LCD
Size:	7.5 INCH
Resolution:	800x480 pixels
Input fuse:	DC fuse
Display type:	Color TFT LCD

Beijer PWS Operator Panel HMI Manuals PDF Download:

Beijer HITECH PWS Series Manuals

Beijer PWS6800C-P datasheet pdf

FAQ:

Question: How to install PWS6800T-N Terminal?

Answer:The basic H-Designer system requirements are as follows:
– PC - CPU 80586 or higher;
– Memory - 64 MB RAM or more;
– Hardware - 60 MB or more available hard drive space;
– Display - VGA or SVGA. Microsoft Windows with 256 colors or higher, and a resolution of 800×600 or higher.
Since all the programs in the H-Designer suite have been compressed, you need to uncompress and install the software before using it.

Question: What is the Ladder Programming of Beijer H-Series operator panel?

Answer: TLadder logic is a method of drawing electrical logic schematics. It can also be used for programming controllers. A program in ladder logic, also called a ladder diagram, is similar to a schematic for a set of relay circuits.
H-series operator terminals and H-Designer support ladder programming and functions in a continuous, cyclical series of scan tasks. When the operator terminal is running, your program should be in one of the following statuses: RUN, STOP, PAUSE, and ERROR, and you can control the status changing by using debug commands and inserting instructions in your program.
Detailed information about using ladder programming as well as examples are availableby selecting Help/LadderPlus in H-Designer

Question: What is PWS6800T-N membrane keyboard HMI parts price?

Answer: Submit a fast quote, send VICPAS an email for best price.
