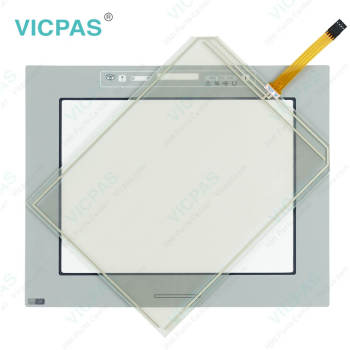

UniOP eTOP39B-0050 HMI Touch Screen Front Overlay

group name: UniOP eTOP

Min Order: 1 piece

brand name: VICPAS

model: eTOP39B-0050

Nearest port for product export: Guangzhou, Hongknog, Shenzhen, Taiwan

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Mon, 20 May 2024 21:00:15 GMT

contact supplier

Paramtents

Brand UniOP
Warranty 365 Days
Product Line UniOP eTOP39B series
Supply eTOP39B-0050 Protective Film Touch Screen Repair
Model eTOP39B-0050
Size 10.4 inch

Packging & Delivery

Min Order1 piece

Briefing

UniOP eTOP39B-0050 Protective Film Touch Screen Panel Repair. 365 Days Warranty-Fully Tested-Factory Prices-Fast Shipping

Detailed

UniOP eTOP series HMI eTOP39B-0050 Touch Screen Panel Front Overlay Repair

Order each part separately is available

UniOP series HMI eTOP39B-0050 Touchscreen Front Overlay Repair Kit

eTOP39B-0050 Touch Screen Protective Film IHM Highlights
• 10.4” Advanced TFT color display
• VGA (640x480 pixel) resolution
• 64K colors
• NFI (Near Field Imaging) touchscreen
• Sunlight-readable
• Connection to industrial bus systems and Ethernet (requires optional plug-in modules)
• Compatible with video input module
• 32 MB internal user memory
• Extended operating temperature range

The eTOP39B eTOP39B-0050 HMI Panel Glass Front Overlay Terminal is a state-of-the-art HMI device with NFI (Near Field Interface) touchscreen and sunlight-readable 10.4” Advanced TFT color graphic display. eTOP39B-0050 Touchscreen and display are specifically designed for outdoor use with extreme illumination conditions. Support for 64K colors in the brilliant eTOP39B-0050 TFT display will increase the realism of the images. The characteristics of eTOP39B-0050 touchscreen and eTOP39B-0050 display make this unit the ideal choice for high-end HMI applications in harsh environments.

Contact Best Price

Specifications:

The table below describes the parameters of the eTOP39B-0050 UniOP Touchscreen Overlay.

Part Number:	eTOP39B-0050
Display Type:	TFT LCD
Resolution:	640x480 pixel
Backlight:	CCFL
Warranty:	365 Days

Input Power:	24VDC (+10%, -15%)
Operating Temperature:	-10 to 55 °C
Display Size:	10.4 in
Touch screen:	Resistive
Product Line:	UniOP eTOP39B series

Related UniOP Series Part No. :

UniOP eTOP	Description	Inventory status
eTOP33C-E150	UniOP eTOP Touch Screen Monitor Overlay Repair	In Stock
eTOP33C-E250	Touch Screen Protective Film UniOP eTOP eTOP33C	Available Now
eTOP33C-E450	UniOP eTOP33C Touch Screen Glass Front Overlay	In Stock
eTOP33C-E550	UniOP eTOP eTOP33C Touch Protective Film	In Stock
eTOP33C-E650	UniOP eTOP33C Touch Screen Overlay Replacement	In Stock
eTOP38CP-0052	HMI Panel Glass Overlay eTOP eTOP38CP Repair	Available Now
eTOP39B-0050	UniOP eTOP Front Overlay Touch Panel Glass	In Stock
eTOP40-0050	UniOP eTOP Touch Screen Protective Film Repair	Available Now
eTOP40B-0050	UniOP eTOP40B Touch Digitizer Protective Film	In Stock
eTOP40B-DC50	HMI Panel Glass Overlay eTOP eTOP40B Repair	Available Now
eTOP40C-0050	UniOP eTOP40C HMI Panel Glass Front Overlay	In Stock
eTOP40CP-0052	UniOP eTOP eTOP40CP Touch Protective Film	In Stock
Exor UniOP HMI	Description	Inventory status

Exor UniOP eTOP HMI Manuals PDF Download:

UniOP eTOP33 User Manuals

UniOP eTOP33B User Manuals

UniOP eTOP33C User Manuals

UniOP eTOP39B User Manuals

UniOP eTOP40B User Manuals

UniOP eTOP40C User Manuals

UniOP eTOP49C User Manuals

UniOP eTOP50B User Manuals

UniOP eTOP50C User Manuals

UniOP eTOP59CP User Manuals

FAQ:

Question: How to cleaning eTOP39B-0050 Touch Panel Glass Overlay IHM faceplates?

Answer: The equipment must be cleaned only with a soft cloth and neutral soap product. Do not use solvents.

Question: What is Exor UniOP eTOP39B-0050 Touchscreen Calibration?

Answer:

Standard calibration:

1. Recall Configuration Mode

2. Touch the CLEAR key on the eTOP39B-0050 screen until a small round symbol will appear on the top right corner of the screen

3. touch and hold the symbol until it will move to the low left corner of the eTOP39B-0050 screen

4. touch and hold the symbol until the indication to touch the ← key will be displayed on the screen

5. touch and hold the key ← until the indication to touch the ↓ key will be displayed on the screen

6. touch and hold the key ↓ until the indication to touch the Enter key will be displayed on the screen

7. touch and hold the Enter key until the panel will switch to Operation Mode (if a valid project is loaded in the memory)

Emergency calibration.

The Emergency calibration procedure should be used in all cases when it would result not possible to go to calibration using the standard procedure.

1. Switch of the unit

2. turn on the unit

3. tap in the middle of the touchscreen with a frequency of about one second until the operator panel will enter the Calibration Mode

4. perform the standard calibration procedure.
