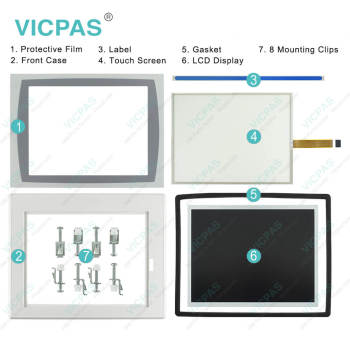

2711P-T15C4A6 Touch Screen Plastic Case HMI Case

Order each part separately is available

The Allen-Bradley 2711P-T15C4A6 PanelView Plus 1500 CE Terminal, is an operator interface device in the PanelView Plus CE Family, which provides users with a complete interface with their machinery for control and maintenance. The 2711P-T15C4A6 touchscreen overlay offers visualization and control of machinery via it 15 inches wide, Color Active Matrix, TFT LCD screen, with an Analog Resistive touchscreen hmi case for the input of variables, and of a display area of 304mm x 228mm (12.0in x 9.0in), with a display resolution of 1024 x 768 Pixel.

The maximum power consumption of the 2711P-T15C4A6 terminal is 160 VA and at 47 to 63 Hz frequency, its input voltage range is 84 to 264V AC. Users can use this terminal in a location that has a room temperature of 0 to 55 °C. In storage, make sure that the ambient temperature is between -25 and 70 °C. The terminal’s integrated communication ports include one Ethernet port, one RS-232 port, and 2 USB ports. Users can order optional communication modules for additional network communication ports (DH+/DH-485, Ethernet, or ControlNet ports). This 2711P-T15C4A6 color display operates at 0 to 55 degrees Celsius (32 to 131 degrees Fahrenheit) temperatures. It is certified with Class I, Div. 2; Class II, Div. 2; Class III; ATEX and INMETRO Zones 2 and 22.

The 2711P-T15C4A6 touch screen glass protective film housing is available in the following enclosure types: the NEMA/UL Type 12, 13, and the 4X (for indoor use only), and the IEC IP54 and IP65. The heat dissipation during operation is 240 BTU/hr. The unit weighs 4.2 kg and measures approximately 330 x 416 x 65 mm. It requires a cut-out that measures 305 x 391 mm. The 2711P-T15C4A6 touch panel front overlay also comes with two USB ports for making the transfer and sharing of data easier. Since this display unit is compatible with a variety of different applications, the cost of maintenance per system decreases, efficiency increases, application speed is improved, costs are reduced, and profits are increased. The display unit supports Type 1 Compact Flash cards.

The 2711P-T15C4A6 terminal also has a battery-backed real-time clock and it is used for time stamping critical data. The approximate dimensions of this terminal are 12.97 x 16.37 x 2.55 inches and it has a weight of 9.3 lbs. Note that this terminal has NEMA Type 12, 13, 4X, IP54, and IP65 enclosure ratings. The 2711P-T15C4A6 terminal requires 100-240V AC (50/60 Hz) and it consumes 160 VA maximum powers (65 VA typical). The protective earth terminal must be connected to a low-impedance earth ground. Power should be disconnected before installing or replacing components.
