PP300 5PP320.1214-39 B&R Touch Screen Panel Glass

group name: Power Panel 300

Min Order: 1 piece

brand name: VICPAS

model: 5PP320.1214-39

Nearest port for product export: Guangzhou, Hongknog, Shenzhen, Taiwan

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Fri, 22 Nov 2024 05:45:21 GMT

contact supplier

Paramtents

Touch screen panel type Resistance touch screen
Size 12. 1 inch
Warranty 1 Year VICPAS Warranty
Brand B&R
Model B&R Power Panel 300 5PP320.1214-39
Shipping DHL/FedEx/UPS/TNT/EMS/Aramex /DPEX

Packging & Delivery

Min Order1 piece

Briefing

B&R Power Panel 300 5PP320.1214-39 Touchscreen Glass Protective Film Repair. 365-Day Warranty-Fully Tested-Worldwide Shipping

Detailed

B&R Power Panel 300 5PP320.1214-39 Front Overlay Touch Screen Panel Repair Replacement

Power Panel 300 5PP320.1214-39 Protective Film Touch Screen Panel

5PP320.1214-39 BIOS stands for "Basic Input Output System". It is the most basic standardized communication between the user and the system (hardware). A B&R-modified BIOS from Insyde is used in the Power Panel devices. BIOS setup lets you modify basic system configuration settings. These settings are saved in CMOS RAM. The CMOS RAM is a nonvolatile, battery-backed memory that retains information when power is not applied to the Power Panel. BIOS is immediately activated when switching on the power supply of the Power Panel. BIOS reads the system configuration information in CMOS RAM, checks the system, and configures it using the power-on self-test (POST).

VICPAS supply B and R Power Panel 300 5PP320.1214-39 touchscreen panel and protective film for repair replacement, make the HMI running. We provide a 365 days VICPAS warranty of the most product, which include most of touch screen panel, membrane keypad, protective film, LCD display and protective case shell housing.

The Power Panel 300/400 devices have a USB 2.0 (Universal Serial Bus) host controller with multiple USB ports, two of which are on the outside for easy user access. Power Panel devices are equipped with 2 hex switches that serve as operating mode switches. Switch positions 01 to FD are available for any purpose in an application and can be evaluated by the application program. Due to the complete ATX power supply support, the power button serves a number of functions, which can be configured in BIOS setup.

Contact Best Price

Specifications:

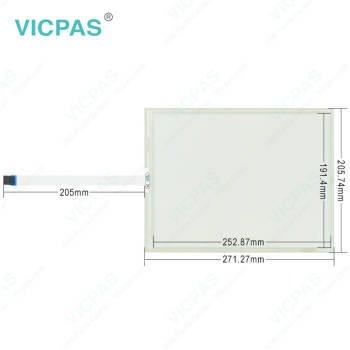

The table below describes the parameters of the 5PP320.1214-39 Power Panel 300 Touchscreen Panel Front Overlay.

Part Number :	5PP320.1214-39
Product Line:	Power Panel 300
Screen diagonal	12.1 in
Warranty:	365 Days Warranty
Input Power	24 VDC

Display Type:	TFT color
Mounting position:	Vertical
Input Type:	Touchscreen
Serial interface Type:	RS232
Storage	-20 to 70°C

Related Power Panel 300 Series Part No. :

B&R Power Panel 300	Description	Inventory status
5PP320-1043-K12	B&R Power Panel 300 Touch Screen Panel Glass Repair	In Stock
5PP320-1043-K14	Power Panel 300 Touch Panel Glass Replacement	Available Now
5PP320-1043-K16	B&R Power Panel 300 Touch Screen Panel Repair Kit	In Stock
5PP320-1214-39	B and R Power Panel 300 Touch Digitizer Replacement	In Stock
5PP320-1214-K09	Power Panel 300 HMI Touch Screen Organizer	In Stock
4PP320-1505-31	Power Panel 300 Touch Panel Protective Film Overlay Repair	In Stock
5PP320-1505-39	Power Panel 300 B&R HMI Touch Screen Front Overlay	Available Now
5PP320-1505-K05	B and R Power Panel 300 Touch Panel Protective Film	Available Now
5PP320-1505-3B	Power Power 300 B&R Touch Screen Monitor	In Stock
5PP320-1505-K04	B and R Power Panel 300 Touch Screen Hmi Repair	Available Now
5PP320-1505-K15	B&R Power Panel 300 Touch Screen Panel Glass	In Stock
4PP320-1505-K01	B&R Power Panel 300 Touch Screen Replacement	In Stock
5PP320-1505-K10	B and R Power Panel 300 Touch Screen Panel	Available Now
5PP320-1505-K14	Power Panel 300 B&R MMI Touch Screen Glass	In Stock
B and R PP300	Description	Inventory status

B&R Power Panel 300 Manuals PDF Download:

B&R Power Panel 300 User's Manual

FAQ:

Question: How to upgrade B&R Power Panel 300 5PP320.1214-39 BIOS Software?

Answer: The following steps should be carried out to upgrade or save 5PP320.1214-39 BIOS:
• Create bootable media.
How to upgrade B&R Power Panel 300 5PP320.1214-39 BIOS Software?<br />
• Copy the contents of the *.zip file to the bootable media. If the B&R upgrade was already added when the bootable media was created using the B&R Embedded OS Installer, then this step is not necessary.
• Connect the bootable media to the Power Panel and reboot the device.
• The following start menu will be shown after booting.
How to upgrade B&R Power Panel 300 5PP320.1214-39 BIOS Software?<br />

• The system must be rebooted after a successful upgrade.

Question: What is the procedure of creating a bootable USB flash drive for B&R 5PP320.1214-39 upgrade files?

Answer:
• Connect the USB flash drive to the PC.
• If the drive list is not refreshed automatically, the list must be updated using the command Drives > Refresh.
• Mark the desired USB flash drive in the drive list.
• Change to the Action tab and select Install a B&R Update to a USB flash drive as type of action.
• Enter the path to the MS-DOS operating system files. If the files are part of a ZIP archive, then click on the button By ZIP file.... If the files are stored in a directory on the hard drive, then click on the button By folder....
• In the B&R Upgrade text box, it's also possible to enter the path to the ZIP file for the B&R Upgrade Disk and select the file.
• Click on the Start action button in the toolbar.
How to upgrade the B&R Power Panel 300 aPCI module firmware?

Question: What is the B&R Power Panel 5PP320.1214-39 touch screen panel price?

Answer: Submit a fast quote, send VICPAS an email for best price.
