Membrane keypad for 4PP015.E420-01 membrane keyboard switch

group name: Power Panel 15/21/35/41/45

Min Order: 1 piece

brand name: VICPAS

model: 4PP015.E420-01

Nearest port for product export: Guangzhou, Hongknog, Shenzhen, Taiwan

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Thu, 21 Nov 2024 16:53:05 GMT

contact supplier

Paramtents

Brand B&R
Size 5.7 inch
Warranty 1 Year VICPAS Warranty
Model B&R Power Panel 15 4PP015.E420-01
Shipping DHL/FedEx/UPS/TNT/EMS/Aramex /DPEX

Packging & Delivery

Min Order1 piece

Briefing

B&R Power Panel 15 4PP015.E420-01 Membrane Keypad Switch. 1 Year Warranty-Fully Tested-Worldwide Shipping

Detailed

B&R Power Panel 15 4PP015.E420-01 Membrane Keypad Keyboard Repair Replacement

Order each part separately is available

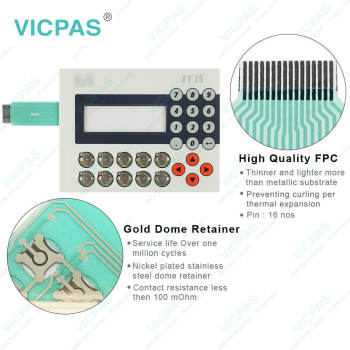

Power Panel 15 4PP015.E420-01 Keyboard Membrane

B&R offers the B&R Power Panel 15, 21, 35, and 41 for automation of small to midsize machines and systems. These Power Panels are a combination of operator panel and controller in one device. A 4 x 20 character text display, a 3-inch display with 160 x 80 pixels, or a ¼ VGA graphic display can be selected. Each Power Panel is equipped with a powerful PLC CPU including integrated digital or analog I/O. The series PP21 and PP41 panels have an additional six slots for B&R SYSTEM 2003 screw-in modules. An expansion module is offered for the Power Panel 41 which allows the operation of B&R SYSTEM 2005 interface module inserts. The visualization application is created using B&R Automation Studio™. B&R Automation Studio™ is used to program the CPU.

B&R Automation Device Interface (ADI) 4PP015.E420-01 Development Kit Features:
• One Microsoft Visual Basic module with ADI function declarations
• Header files and import libraries for Microsoft Visual C++
• Help files for Visual Basic and Visual C++
• Sample projects for Visual Basic and Visual C++
• ADI DLL (for application testing if no ADI driver is installed)

VICPAS supply B and R Power Panel 15 4PP015.E420-01 Keyboard membrane for repair replacement, make the HMI running. We provide a 365 days VICPAS warranty of the most product, which include most of touch screen panel, membrane keypad, protective film, LCD display and protective case shell housing.

Contact Best Price

Specifications:

The table below describes the parameters of the 4PP015.E420-01 Power Panel 15 Membrane Keypad Switch.

Part Number :	4PP015.E420-01
Product Line:	Power Panel 15
Screen diagonal	5.7 in
Warranty:	365 Days Warranty
Input Power	24 VDC

Display Type:	TFT color
Mounting position:	Vertical
Input Type:	Keypad
Serial interface Type:	RS232
Storage	-20 to 70°C

Related Power Panel 15 Series Part No. :

Power Panel 15	Description	Inventory status
4PP015.0420-01	B and R Power Panel 15 Membrane Switch Replacement	In Stock
4PP015.0420-36	Power Panel 15 B&R HMI Membrane Keyboard Keypad	In Stock
4PP015.C420-01	B and R Power Panel 15 Switch Membrane Repair	In Stock
4PP015.C420-36	PP15 B&R Membrane Keypad Keyboard Replacement	Available Now
4PP015.E420-01	Power Panel 15 B&R Membrane Keypad Switch	In Stock
4PP015.E420-101	B and R Power Panel 15 Operator Panel Keypad	Available Now
4PP015.E420-36	B&R Power Panel 15 Keypad Membrane Repair Replacement	In Stock
4PP015.E420-K04	B&R Power Panel 15 Membrane Keypad Switch	In Stock
4PP015.E420-K05	PP15 B and R Membrane Keyboard Keypad	Available Now
4PP015.E420-K10	B and R Power Panel 15 Switch Membrane Repair	In Stock
B and R PP15	Description	Inventory status

B&R Power Panel 15 Manuals PDF Download:

B&R Power Panel User's Manual

B&R Power Panel 15/21/35/41 User's Manual

FAQ:

Question: What is the B&R Power Panel 15 4PP015.E420-01 terminal keypad price?

Answer: Submit a fast quote, send VICPAS an email for best price.

Question:How to change the B&R Power Panel 15 4PP015.E420-01 battery?

Answer: The product design allows the battery to be changed with the Power Panel switched on or off. In some countries, safety regulations do not allow batteries to be changed while the module is switched on.
How to change the B&R Power Panel 15 4PP015.E420-01 battery?
The battery is changed as follows:
• Touch the mounting rail or ground connection (not the power supply!) in order to discharge any electrostatic charge from your body.
• Remove the cover from the lithium battery holder using a screwdriver.
• Remove the battery from the holder by pulling the removal strip (don't use uninsulated tools -> risk of short circuiting).
How to change the B&R Power Panel 15 4PP015.E420-01 battery?
• The battery should not be held by its edges. Insulated tweezers may also be used for removing the battery.

• Insert the new battery with correct polarity. The removal strip should be protruding from the battery holder and the "+" side of the battery should be facing downward. In order to be able to remove the battery again in future, the removal strip must protrude from the upper side of the battery.
• Now wrap the end of the removal strip over the top of the battery and insert it underneath the battery so that it does not protrude from the battery holder.
How to change the B&R Power Panel 15 4PP015.E420-01 battery?

Question:How can the Power Panel 15 4PP015.E420-01 lifespan of backlights be extended?

Answer:
• Set the display brightness to the lowest value that is still comfortable for the eyes
• Use dark images
• Reducing the brightness by 50% can result in an approximate 50% increase of the halfbrightness time.
