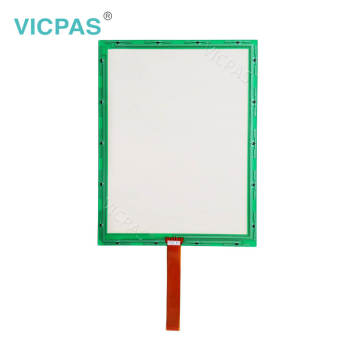

New！Touch screen panel for N010-0550-T511 touch panel membrane touch sensor glass replacement repair

VICPAS supply Fujitsu N010-0550-T511 touch panel glass with 365 days warranty and support Urgent Worldwide Shipping.

Please pay attention for the matter as stated below at mounting design of Fujitsu N010-0550-T511 touch panel & enclosure:
1. Enclosure support to fix Fujitsu N010-0550-T511 touch panel glass must be out of view (transparent) area. (Do not design enclosure presses the view area to protect from miss input).
2. Enclosure edge must be between view area & guaranteed active area. (Enclosure edge must not touch with view area).
3. We recommend the material of support to fix Fujitsu N010-0550-T511 touch screen panel is an elastic material.
4. Do not bond top surface (film) of Fujitsu N010-0550-T511 panel glass with enclosure.
5. The corner parts (fig.*) have conductivity. Do not touch any metal part after mounting.
6. Special design is required for water resistance use.
7. Cleaning Fujitsu N010-0550-T511 Touch Digitizer by Air gun, pressure 2kg/cm2 below is suggested. This is preventing FPC to peel off when air is blowing to FPC from N010-0550-T511 touch screen monitor side.
8. The mounting structure must have a reserved space for the FPC tail and never touch or squeeze the FPC by case or other components preventing FPC to peel off. Assembly space is recommended at least 4mm.
