PanelView 5500 15'' 2715-T15CD-B HMI Touch Panel Film
- group name
- PanelView 5500
- Min Order
- 1 piece
- brand name
- VICPAS
- model
- 2715-T15CD-B
- Nearest port for product export
- Guangzhou, Hongknog, Shenzhen, Taiwan
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Thu, 21 Nov 2024 20:33:24 GMT
Paramtents
Product Line Allen-Bradley PanelView 5500 Repair Kit
Brand Allen-Bradley
Parts Touch Panel, Protective Film, LCD Screen Display
Shipping 2-3 workdays
Size 15 inches
FPC 10 wires
Warranty 365 Days
Packging & Delivery
-
Min Order1 piece
Briefing
Detailed

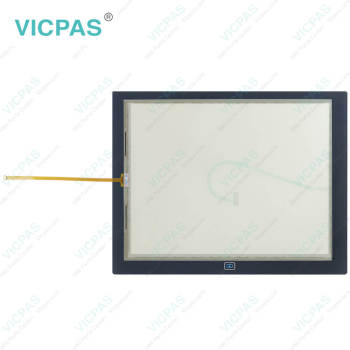

Allen-Bradley PanelView 5500 HMI 2715-T15CD-B Resistive Touch Panel Protective Film Repair
The 2715-T15CD-B Resistive Touch Panel Front Overlay LCD Display terminals include these features and capabilities:
• Supports a maximum of 50 user-defined screens (the screens will increase in future firmware).
• Supports a maximum of 500 Logix-based alarms (the alarms will increase in future firmware).
• Ethernet communication supporting Device Level Ring (DLR), linear, or star network topologies.
• High-speed human machine interface (HMI) button control and easily configured navigation menu.
The Studio 5000 environment includes these applications:
• View Designer – you can create and design a project for a specific the 2715-T15CD-B HMI Touch Screen Film LCD Display Screen terminal and download the project to the terminal. You can create an application for any PanelView 5500 terminal and reuse that same application across the entire platform.
• Logix Designer – you can develop control logic for a CompactLogix or ControlLogix controller and download the logic to the controller.
VICPAS supply Allen Bradley PanelView 5500 HMI 2715-T15CD-B Resistive Touch Panel, Front Overlay and LCD Display Panel with 365 Days warranty and support Urgent Worldwide Shipping.
Specifications:
The table below describes the parameters of the 2715-T15CD-B PanelView 5500 Parts.
| Part Number: | 2715-T15CD-B |
| Product Line: | PanelView 5500 |
| Display Size: | 15 inches |
| View Area(W x H): | 304 x 228 mm |
| Display Resolution: | 1024 x 768 XGA, 4:3 |
| Operating Temperature: | 0°C - 55°C |
| Storage Temperature: | - 25°C - 70°C |
| Relative Humidity: | 5…95% without condensation |
| Display Type: | Color TFT LCD |
| Color Depth: | 18-bit color graphics |
Related Allen Bradley PanelView 5500 Terminals Part No. :
| PanelView 5500 | Description | Inventory status |
| 2715-T15CA | 2715-T15CA PanelView 5500 Glass Panel Overlay Repair | In Stock |
| 2715-T15CA-B | 2715-T15CA-B PanelView 5500 15'' Overlay Touch Screen | In Stock |
| 2715-T15CD | PanelView 5500 2715-T15CD Touch Screen Film Display | In Stock |
| 2715-T15CD-B | PanelView 5500 15'' 2715-T15CD-B HMI Touch Panel Film | Available Now |
| 2715-B15CA | PanelView 5500 2715-B15CA 15'' Keypad Screen Display | Available Now |
| 2715-B15CA-B | PanelView 5500 2715-B15CA-B Switch Membrane Touch Kit | In Stock |
| 2715-B15CD | 2715-B15CD PanelView 5500 Panel Glass Display Keyboard | In Stock |
| 2715-B15CD-B | 2715-B15CD-B PanelView 5500 Keypad Membrane Touch Kit | Available Now |
| 2715-T19CA | 2715-T19CA PanelView 5500 Protective Film Panel Repair | Available Now |
| 2715-T19CA-B | PanelView 5500 2715-T19CA-B HMI Touch Overlay Display | In Stock |
| 2715-T19CD | 2715-T19CD PanelView 5500 Overlay Touch Glass Repair | In Stock |
| 2715-T19CD-B | 2715-T19CD-B 19'' PanelView 5500 Touch Film HMI Repair | In Stock |
| PanelView 5500 HMI | Description | Inventory status |
PanelView 5500 HMI Manuals PDF Download:
FAQ:
Question: What do the two indicators on the back of the terminal do?
Answer: The back of the 2715-T15CD-B Touch Screen Overlay LCD Screen Display terminal has two indicators to identify system status:
• STS indicator (green) indicates that the 2715-T15CD-B Touch Digitizer Monitor Protective Film LCD Display Panel terminal is on and in use.
• ERR indicator (red) indicates hardware and firmware faults. At startup, the STS and ERR indicators blink on and off, then the STS indicator blinks to signal progress during startup. If the indicators remain off, check the power cable. After a successful startup, the STS indicator remains on.
Question: How to connect the 2715-T15CD-B Touch Screen Glass Protective Film LCD Display operator terminal to a DC power source?
Answer:
1. Verify that the wiring is not connected to a power source.
2. Strip 7 mm (0.28 in.) of insulation from the ends of the wires.
3.Secure the DC power wires to the marked terminals (+ and –) on the terminal block.
4. Secure the earth ground wire to the GND terminal on the terminal block. The GND terminal must be connected to a low-impedance earth ground.
5. Apply power to the PanelView 5500 HMI 2715-T15CD-B Resistive Touch Panel Overlay LCD Display operator terminal.
Common misspellings:
275-T15CD-B
2715-T1CD-B
7215-T15CD-B
2715-1T5CD-B
2715-T115CD-B
