2715-T15CA PanelView 5500 Glass Panel Overlay Repair

group name: PanelView 5500

Min Order: 1 piece

brand name: VICPAS

model: 2715-T15CA

Nearest port for product export: Guangzhou, Hongknog, Shenzhen, Taiwan

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Thu, 21 Nov 2024 21:01:50 GMT

contact supplier

Paramtents

Brand Allen-Bradley
Product Line Allen-Bradley PanelView 5500 Repair Kit
Types Front Overlay, Touch Screen Panel and LCD Display
Shipping 2-3 workdays
Size 15 inches
FPC 10 wires
Warranty 365 Days

Packging & Delivery

Min Order1 piece

Briefing

2715-T15CA PanelView 5500 Touch Screen Overlay Display Repair. 365 Days Warranty-Fully Tested-Factory Prices-Fast Shipping.

Detailed

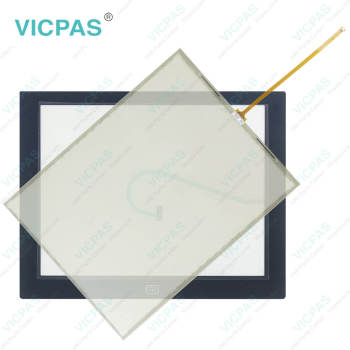

Allen-Bradley PanelView 5500 HMI 2715-T15CA 15'' Front Overlay Touch Screen Glass Repair Replacement

Order each part separately is available

Allen-Bradley PanelView 5500 HMI 2715-T15CA LFront Overlay Touchscreen Replacement

The PanelView Standard 2715-T15CA Touch Digitizer Monitor Protective Film LCD Display terminals feature pixel graphics capabilities and functionality in color, grayscale, and monochrome displays. These rugged electronic operator interface solutions are available in a variety of sizes and configurations to meet specific application requirements. All use common development software to simplify programming and improve operator productivity.

The PanelView 5500 HMI 2715-T15CA HMI Touch Screen Front Overlay LCD Display terminal communicates with PLC and SLC controllers over EtherNet/IP, DeviceNet, ControlNet, DH-485, DH+, and remote I/O networks, or by using serial communication.

Other features supported by the PanelView Standard line include advanced alarm handling, screen security, analog gauges, ATA memory card, universal language support, and online printing for more intuitive operator control.

VICPAS supply Allen Bradley PanelView 5500 2715-T15CA Touch Screen Glass, Front Overlay and LCD Display with 365 Days warranty and support Urgent Worldwide Shipping.

Contact Best Price

Specifications:

The table below describes the parameters of the 2715-T15CA PanelView 5500 Parts.

Part Number:	2715-T15CA
Display Size:	15 inches
Operating Temperature:	0°C - 55°C
Storage Temperature:	- 25°C - 70°C
Relative Humidity:	5…95% without condensation

View Area(W x H):	304 x 228 mm
Display Resolution:	1024 x 768 XGA, 4:3
Status Indicators:	STS (green), ERR (red)
Brightness:	300 cd/m2 (Nits)
Backlight:	LED, non-replaceable

Related Allen Bradley PanelView 5500 Terminals Part No. :

PanelView 5500	Description	Inventory status
2715-T15CA	2715-T15CA PanelView 5500 Glass Panel Overlay Repair	In Stock
2715-T15CA-B	2715-T15CA-B PanelView 5500 15'' Overlay Touch Screen	In Stock
2715-T15CD	PanelView 5500 2715-T15CD Touch Screen Film Display	In Stock
2715-T15CD-B	PanelView 5500 15'' 2715-T15CD-B HMI Touch Panel Film	Available Now
2715-B15CA	PanelView 5500 2715-B15CA 15'' Keypad Screen Display	Available Now
2715-B15CA-B	PanelView 5500 2715-B15CA-B Switch Membrane Touch Kit	In Stock
2715-B15CD	2715-B15CD PanelView 5500 Panel Glass Display Keyboard	In Stock
2715-B15CD-B	2715-B15CD-B PanelView 5500 Keypad Membrane Touch Kit	Available Now
2715-T19CA	2715-T19CA PanelView 5500 Protective Film Panel Repair	Available Now
2715-T19CA-B	PanelView 5500 2715-T19CA-B HMI Touch Overlay Display	In Stock
2715-T19CD	2715-T19CD PanelView 5500 Overlay Touch Glass Repair	In Stock
2715-T19CD-B	2715-T19CD-B 19'' PanelView 5500 Touch Film HMI Repair	In Stock
PanelView 5500 HMI	Description	Inventory status

PanelView 5500 HMI Manuals PDF Download:

Allen-Bradley PanelView 5500 Terminals User Manual

Allen-Bradley PanelView Standard Terminal Specifications

PanelView 5500 Specifications Technical Data

FAQ:

Question: What is the size of the 2715-T15CA HMI Touch Panel Glass, Overlay and LCD Display Replacement?

Answer: The 2715-T15CA Resistive Touch Panel, Protective Film and LCD Display are 15-inch.

Question: What is the 2715-T15CA Panelview 5500 Resistive Touch Screen, Protective Film and LCD Screen Display HMI parts price?

Answer: Submit a fast quote, send VICPAS an email for best price.

Question: How to replace the battery?

Answer:

1. Disconnect power from the PanelView 5500 HMI 2715-T15CA Touch Digitizer Monitor, Front Overlay and LCD Display Panel terminal.

2. Loosen the screws that secure the logic module to the back of the display.

Allen-Bradley PanelView 5500 HMI 2715-T15CA Protective Film Touchscreen LCD Display Replacement

3. Carefully lift the logic module away from the display module and turn over to expose the circuit board.

4. Locate the coin-cell battery on the circuit board.

5. Remove the battery by lifting on the side of the battery.

6. Insert the new battery with the positive (+) polarity up.

7. Reattach the logic module by aligning the connector on the bottom of the logic module with the connector on the back of the display module.

Allen-Bradley PanelView 5500 HMI 2715-T7CA-B Protective Film Touchscreen LCD Display Replacement

8. Push down on the logic module and make sure that it is fully seated.

9. Tighten the screws to a torque of 0.68…0.90 N•m (6…8 lb•in).

Common misspellings:

715-T15CA
2715-T5CA
7215-T15CA
2751-T15CA
22715-T15CA
