2711-K10C10L1 PanelView 1000 Membrane Keypad Switch Repair

Order each part separately is available

The 2711-K10C10L1 module is a part of the Allen-Bradley Panelview 1000 Series that offers a stainless-steel domed membrane keypad as its input type with an actuation of one million presses. Moreover, the 2711-K10C10L1 has a display size of 10.1 inches and a field replaceable backlight and battery. In addition, it consumes 24 W maximum power and weighs approximately 3.7 kg or 8.2 lb. Thus, it measures 11.11 in x 16.64 in x 4.4 in dimensions and a 17 W (577 BTU/hr) heat dissipation.

The 2711-K10C10L1 has a non-volatile memory and RAM of 240 KB which stores data, files, and applications is also possible. The 2711-K10C10L1 has a smooth navigation with the 2711-ND3 PanelBuilder 32 software that runs on a personal computer and operates in Basic English, increasing the operator’s productivity. This 32-bit software enables direct uploading or downloading of applications from or to a computer, over the network, or by using a memory card. In line with this, it can operate on the Microsoft Windows 2000, ME, XP, or the Vista operating system.

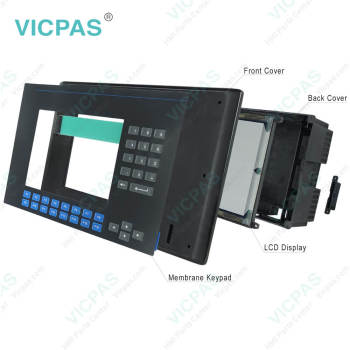

VICPAS supply Allen Bradley Panelview Standard 1000 2711-K10C10L1 membrane keypad switch, Protection Board, Plastic Shell, LCD Display, Memory Card Retainer Base, Gasket, Sticker for repair replacement, make the HMI running. We provide a 1-year warranty of the most product, which include most of touch screen panel, membrane keypad, LCD display and protective case shell housing.

The 2711-K10C10L1 by Allen-Bradley is part of the Panelview 1000 series and is engineered for users to effectively interface with their machinery. Operators can easily input information and commands with the Keypad. There is a sharp 10.1 in. Multi-Color display. Each module features a durable NEMA Type 12/13 or 4X enclosure and runs on 24 Volts Direct Current input power. Data, files, applications, and more can be stored in the 256 Kilobytes memory and easily navigated through using the 2711-ND3 PanelBuilder 32 software. There are Printer (RS-232) Port and DeviceNet ports for adaptable communication.
