2711P-B6C22D Membrane Keyboard Keypad Touch Screen

Order each part separately is available

The Allen-Bradley 2711P-B6C22D PanelView Plus 600 is a color TFT terminal. Its input is both a keypad and a touchscreen. To prevent damage to the screen, users can enter information with a bare finger, a gloved finger, or a plastic stylus device with a minimum tip radius of 1.3 mm (0.051 in.). Using any other object or tool may damage the screen. It comes with a 5.5-inch color graphics display with a 320 x 240 resolution. It has a DH+ communication module that is installed on a terminal that supports its communication protocol. The 2711P-B6C22D powered by a DC input voltage of 18-32V DC or an 85V-264V AC input voltage to provide a more complex input and increase an application’s flexibility.

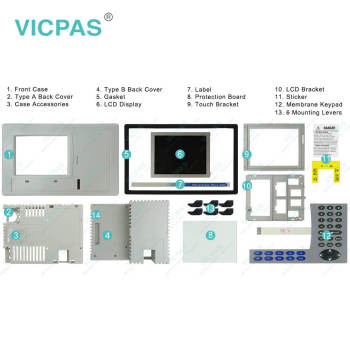

VICPAS supply Panelview Plus 600 2711P-B6C22D touchscreen glass, Bracket, Label, Plastic Cover Body, LCD Screen, Gasket, Sticker, Mounting Levers and Switch Membrane for repair replacement, make the HMI running. We provide a 1-year warranty of the most product, which include most of touch screen panel, membrane keypad, LCD display and protective case shell housing. The Allen-Bradley 2711P-B6C22D PanelView terminal is effective in performance at a temperature range of 32 - 122°F and a storage temperature of -13 – 158°F. It measures 111 x 84 mm in dimensions.
