Paramtents
Brand Johnson Controls York
Warranty 365 Days
Product Line York Quantum HD Panel
Supply Quantum HD Panel Touch Screen Panel
Size 15 inch
model York Quantum HD Panel

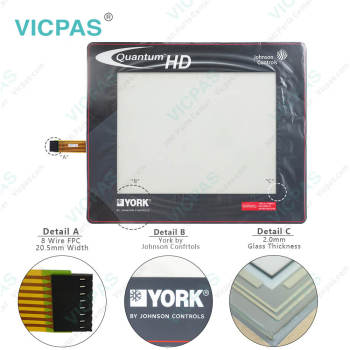

Parts Touch Screen Panel Glass Protective Film
Packging & Delivery
Min Order1 piece
Briefing
Detailed
The York Quantum HD control panels touchscreen make equipment management easy, from anywhere! Access any control, calibration or configuration value using on-screen touch control. With a large, high-contrast display, navigation and reading of the operating values and control settings is easy.
The York Quantum HD Industrial Refrigeration Control Panel incorporates hardware features & technology proven in millions of applications. The high-speed, PC-based processor provides speed and processing capability far surpassing competitive microprocessor offerings. The High Definition Touch Display offers a high contrast, crisp clear display of compressor information and status with a superior viewing angle.
The Home screen of the York Quantum HD controller is designed to provide normal day-to-day operation without the user leaving the Home screen. Above, in clockwise order, are the high points of the Home screen.
The Home screen header, including the package status bar, panel name, IP address, date and time, as well as the three primary navigation buttons, is always present. Only the content below the header changes as you navigate theQuantum HD controller.
VICPAS supply York Quantum HD Industrial Refrigeration Control Panel touch screen glass, Overlay and LCD display. All of them with VICPAS 365 days warranty and support Urgent Worldwide Shipping.
The video below describes the product details of the Johnson Controls York Quantum HD Control Panel, Overlay and LCD Display Repair Replacement Johnson Controls Panel parts, include touch screen panel, protective film with lcd display.
The table below describes the parameters of the York Quantum HD Control Panel Parts.
Part Number : | York Quantum HD Panel |
Touchscreen: | colour LCD display |
Display | TFT-LCD dynamic color screen |
Warranty: | 365 days Warranty |
Product Line: | York Quantum HD |
Active power input, typ.: | 18 W |
Mounting position: | vertical |
Key Features: | Touch screen support |
Language: | Worldwide |
Type of supply voltage | DC |
Related Johnson Controls Panel Part No. :
Johnson Controls Panel | Description | Inventory status |
Frick Quantum HD Control Panel | Touch Screen Panel Repair | In Stock |
York Quantum HD Panel | Johnson Controls Panel Touch Screen Replacement | In Stock |
Quantum HD Panel | Description | Inventory status |
Question: Hwo to replace York quantum hd panel battery?
Answer: The battery is fully accessible, but is surrounded by sensitive electronic components, so take care when replacing the battery.
Replace the battery using the following procedure:
1. Power off the panel.
2. Don an antistatic wristband and connect it to the ground wire in the lower left corner of the processor board.
3. Locate the battery socket (see Figure 18).
4. Place your fingernail under the edge of the battery and gently lift up. The battery releases easily.
5. Place the new battery into the socket with the same orientation as the old battery. Face the side with writing out.
6. Power up the panel and wait until the Quantum HD application has loaded.
7. Navigate to the Panel settings page to set the correct date and time.
Question: Johnson Controls York quantum HD Panel troubleshooting
Answer:If the Operating Status screen is not shown, check the following items:
1. If no LEDs are lit, check the AC and DC power. Refer to the Power Supply section in 090.070-M.
2. Check if the lighting of the LEDs is occurring as described in the What Occurs When Applying Power section.
• If the power-up sequence continues to repeat without displaying the Operating Status (Home) screen, then there is a booting problem.
3. Check all plugged connectors for proper seating.
4. Check for any error messages displayed while booting.
• Write down any error messages exactly as they appear (taking a picture with a mobile device is also useful.)
5. Check that the software is OK:
• Is the correct software product and version installed?
• Was new software just installed?
6. Check the display. If the Q6 processor board appears to be booting properly and the display is not illuminated, you may have an issue with the display:
• If only a portion of the display is dark, one of the backlights has failed.
• If the entire display is dark, use a beam-type light source such as a flashlight to look for a ghost image (something is displayed on the screen but it is very dark). If a ghost image is present, the display backlight cable is not seated, the display backlight has failed, or the Q6 processor board has failed.
• Verify that the LVDS display cable and the backlight cable are firmly seated. It may be necessary to remove the LVDS display cable from the back of the display and reseat it to ensure it is connected properly.
Question: What is the York Quantum HD Control Panel touch screen price?
Answer: Submit a fast quote, send VICPAS an email for best price.
