2711P-T7C21D8S Panelview Plus 7 Touch Screen Panel

Order each part separately is available

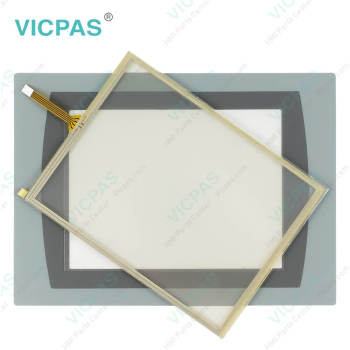

VICPAS supply panelview Plus 7 2711P-T7C21D8S Touchscreen Panel, Protective Film Overlay, and LCD display. All of them with VICPAS 365 days warranty and support Urgent Worldwide Shipping.

The PanelView™ Plus 7 Standard terminals 2711P-T7C21D8S are operator interface devices. They monitor and control devices that are attached to ControlLogix® 5570 and CompactLogix™ 5370 controllers on an EtherNet/IP network. Animated graphic and text displays provide operators a view into the operating state of a machine or process. Operators interact with the control system by using touch screen input.

The PanelView Plus 7 Standard terminals 2711P-T7C21D8S include these features:
• Terminal functionality permits connection to 1 controller, up to 25 screens, and up to 200 alarms.
• FactoryTalk® View Machine Edition software provides a familiar environment for creating HMI applications.
• Windows CE operating system with desktop access for configuration and third-party applications.
• Ethernet communication that supports linear and star network topology.
• PDF viewer to access PDF files that are stored on the terminal.
• More screen options including 4-in., 6-in., 7-in., 9-in., 10-in., 12-in., and 15-in. terminals.
• Widescreen on three sizes, 4-in., 9-in., and 12-in. terminals.
• Greater screen resolution.
• Terminals are available with an Allen-Bradley brand marking, or with no marking for customers who want to put their own brand label on the terminal.
• Certifications including Class I, Div. 2; Class II, Div. 2; Class III; and ATEX and INMETRO Zones 2 and 22.

The 5.7-in. and 10.4-in. touch-screen terminals are shown for illustrative purposes. All other terminal sizes look similar. For information on proper mounting clamp installation, refer to the PanelView Plus 7 Standard Terminals User Manual, publication 2711P-UM007.
