Operator Panel Keypad 2707-V40P1R Replacement
- group name
- Allen Bradley membrane keyboard
- Min Order
- 1 piece
- brand name
- VICPAS
- model
- 2707-V40P1R
- Nearest port for product export
- Guangzhou, Hongknog, Shenzhen, Taiwan
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Thu, 21 Nov 2024 21:17:45 GMT
Paramtents
Warranty 180 Days
Brand Rockwell Automation Allen Bradley
Product Line DTAM Plus
Supply DTAM Plus Terminals Membrane keypad
model 2707-V40P1R
Parts Keypad Switch Repair LCD Display
Packging & Delivery
-
Min Order1 piece
Briefing
Detailed

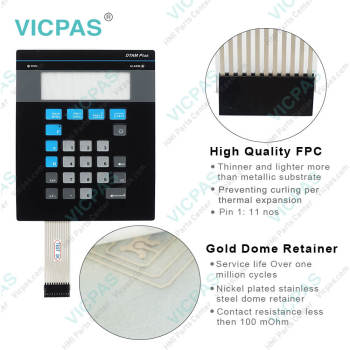

2707-V40P1R DTAM Plus Terminals Switch Membrane and LCD Screen Repair Replacement
DTAM 2707-V40P1R Application screens can have a variety of appearances. The DTAM Plus 2707-V40P1R can display seven types of screens.
• Menu and Sub-Menu Screens
• Security Screens
• Data Display Screens
• Data Entry Screens
• Recipe Screens
• Bargraph Screens
• Alarm Screens
The DTAM Plus 2707-V40P1R provides several options for changing the screen displays:
• Screen links
• Advisor option
The DTAM Plus Term option on the Function Menu lets you set communication and display parameters for using the DTAM Plus 2707-V40P1R in terminal mode. Terminal Mode disables execution of the application program and enables the DTAM Plus to function as a terminal device. In DTAM Plus Terminal mode, the DTAM Plus displays any ASCII data received through the communications port. The ASCII codes associated with the keys on the DTAM Plus keypads are transmitted through the communications port when a key is pressed. To activate terminal mode, you must set DIP switch SW1-5 to ON and reset the device. The 2707-V40P1R display is cleared and ready to display received data.
The terminal 2707-V40P1R must be mounted in a panel or enclosure to protect the internal circuitry. The terminal 2707-V40P1R meets NEMA Type 4, 12, 13 (indoor use only) or 4X (indoor 2707-V40P2N, -V40P2NR) ratings only when mounted in a panel or enclosure with the equivalent rating.
Specifications:
The table below describes the parameters of the DTAM Plus 2707-V40P1R terminals Parts.
| Part Number : | 2707-V40P1R |
| Software | FactoryTalk |
| Display Color | Amber |
| Warranty: | 180 days Warranty |
| Product Line: | DTAM Plus |
| Input Type: | Keypad |
| Mounting position: | vertical |
| Communication: | Ethernet and RS-232 |
| Communication: | ControlNet |
Related Allen Bradley DTAM Plus Terminals Part No. :
| DTAM Plus HMI | Description | Inventory status |
| 2707-V40P1 | DTAM Plus Membrane Keypad Keyboard Repair Kit | In Stock |
| 2707-V40P1R | Rockwell DTAM Plus Terminals Membrane Keyboard Replacement | Available Now |
| 2707-V40P2 | Allen Bradley DTAM Plus Membrane Keypad Repair | In Stock |
| 2707-V40P2D | DTAM Plus Allen Bradley Keypad Repalcement | Available Now |
| 2707-V40P2N | DTAM Plus Membrane Switch Replacement Kit | Available Now |
| 2707-V40P2NR | AB DTAM Plus Operator Panel Keypad Repair | In Stock |
| 2707-V40P2R | DTAM Plus Membrane Keypad Switch Repair Kit | Available Now |
| AB DTAM Plus | Description | Inventory status |
Allen Bradley DTAM Plus Manuals PDF Download:
FAQ:
Question: How to connect the DTAM Plus terminal 2707-V40P1R to an RS-485 device?
Answer:
1. Make sure that the power to the DTAM Plus is off.
2. Use the proper cabling to connect the DTAM Plus communications port to the port of the controller (PLC-5 channel 0 or SLC 5/03 or SLC 5/04 RS-232 port).
• Use cable, Catalog No. 2707-NC4 for PLC-5 channel 0 RS-422 connection
• Use cable, Catalog No. 2707-NC5 for PLC-5 channel 0 RS-232 connection. The 2707-NC5 cable converts the signals from the RS-485 port to RS-232 levels.
• Use cable, Catalog No. 1747-CP3 for SLC 5/03, 5/04, 5/05 port connection
If you need to make your own cable, refer to the connection diagrams in Appendix B. The maximum cable length is 200 feet (60.8 meters). Important: The DH-485 network cable requires proper shielding, grounding, and termination. Refer to Data Highway / Data Highway Plus / Data Highway-485 Cable Installation Manual (Pub. No. 1770-6.2.2).
3. The DH-485 connectors are not electrically isolated. If electrical isolation is required, use Link Couplers (Catalog No. 1747-AIC) shown above.
4. Make sure that the communication parameters of the DTAM Plus terminal match the host device.
5. Apply power and verify that communications are established.
Question: How to reset the Rockwell Allen Bradley DTAM Plus 2707-V40P1R?
Answer:
1. From the Function Menu, select Reset [4].
This screen appears:
2. Press [Y] on the keypad to initiate the reset.
The DTAM Plus resets. This has the same effect as turning the power off and on. The DTAM Plus performs the self diagnostic tests and powerup displays as described in the previous section.
Question: What is the 2707-V40P1R DTAM Plus HMI parts price?
Answer: Submit a fast quote, send VICPAS an email for best price.
