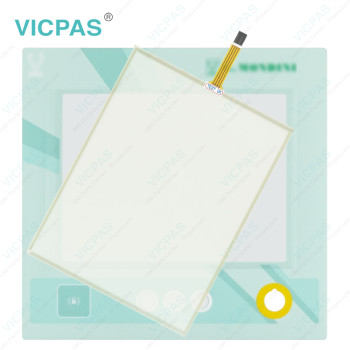

B&R 5AP920.1214-K04 Touch Screen Monitor
- group name
- Automation Panel 900
- Min Order
- 1 piece
- brand name
- VICPAS
- model
- 5AP920.1214-K04
- Nearest port for product export
- Guangzhou, Hongknog, Shenzhen, Taiwan
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Fri, 22 Nov 2024 05:05:04 GMT
Paramtents
Touch screen panel type Resistance touch screen
Size 12.1 inch
Brand B&R
Warranty 1 Year VICPAS Warranty
Model B&R Automation Panel 900 5AP920.1214-K04
Shipping DHL/FedEx/UPS/TNT/EMS/Aramex /DPEX
Packging & Delivery
-
Min Order1 piece
Briefing
Detailed
B&R Automation Panel 900 5AP920.1214-K04 Touch Screen Glass Repair Replacement
An Automation Panel 900 with max. SXGA resolution is connected to the integrated DVI interface (onboard). As an alternative, an office TFT with a DVI interface or analog monitor (using adapter 5AC900.1000-00) can also be used. A separate cable is used for both the touch screen and USB data. If USB devices are to be operated on the Automation Panel 900, the maximum distance is 5 meters. USB devices can only be connected directly to the Automation Panel (i.e. without a hub).
The following device families can be connected to the B&R Automation Panel 900 5AP920.1214-K04:
• Automation PC 510
• Automation PC 511
• Automation PC 620
• Automation PC 810
• Automation PC 820
• Automation PC 910
• Panel PC 700
• Panel PC 800
• Power Panel 500
Specifications:
The table below describes the parameters of the 5AP920.1214-K04 Automation Panel 900 Touchscreen Panel.
| Part Number : | 5AP920.1214-K04 |
| Product Line: | Automation Panel 900 |
| Screen diagonal | 12.1 in |
| Warranty: | 365 Days Warranty |
| Input Power | 24 VDC |
| Display Type: | TFT color |
| Mounting position: | Vertical |
| Input Type: | Touchscreen |
| Serial interface Type: | RS232 |
| Storage | -20 to 70°C |
Related Automation Panel 900 Series Part No. :
| Automation Panel 900 | Description | Inventory status |
| 5AP920.1214-01 | B&R Automation Panel 900 Touch Screen Panel Repair | In Stock |
| 5AP920.1214-K01 | B and R Automation Panel 900 Touch Digitizer Replacement | In Stock |
| 5AP920.1214-K04 | Automation Panel 900 B&R HMI Touch Screen Organizer | In Stock |
| 5AP920.1214-K06 | B and R Automation Panel 900 Touch Panel Glass Repair | In Stock |
| 5AP923.1215-I00 | Automation Panel 900 B&R HMI Touch Screen Organizer | Available Now |
| 5AP980.1214-K03 | Automation Panel 900 B&R Touch Screen Monitor Replacement | In Stock |
| 5AP980.1214-K04 | B and R Automation Panel 900 Touch Screen Hmi Monitor | Available Now |
| 5AP920.1505-01 | B&R Automation Panel 900 Touch Screen Panel Glass Protective Film | In Stock |
| 5AP920.1505-K04 | Automation Panel 900 B and R Touch Panel Glass Front Overlay Repair | Available Now |
| 5AP920.1505-K06 | B&R Automation Panel 900 Touch Panel Glass Organizer Replacement | In Stock |
| B and R AP900 | Description | Inventory status |
B&R Automation Panel 900 Manuals PDF Download:
FAQ:
Question:What are the functions of B&R Automation Device Interface (ADI) - Control Center?
Answer: The functions provided by the Automation Device Interface (ADI) - Control Center vary according to the device series.
To carry out a firmware upgrade, the following steps should be taken:
• Changing display-specific parameters
• Reading device-specific keys
• Updating the key configuration
• Enabling device-specific LEDs on a membrane keypad or keys
•Reading and calibrating control devices (e.g. key switches, handwheels, joysticks, potentiometers)
• Reading temperatures, fan speeds, statistical data and switch settings
• Reading operating hours (power-on hours)
• Reading user and factory settings
• Reading software versions
• Updating and backing up BIOS and firmware
• Creating reports about the current system (support assistance)
• Setting the SDL equalizer value when adjusting SDL cables
• Changing the user serial ID
Question:How can Automation Panel 900 5AP920.1214-K04 screen burn-in be avoided?
Answer:
• By constantly changing between static and dynamic images
• By avoiding excessive brightness differences between foreground and background elements
• By using colors with similar brightness
• By using complementary colors in follow-up images
• By using a screensaver
