B&R 4PP220.1505-75 Operator Panel Keypad Touch Overlay
- group name
- Power Panel 100/200
- Min Order
- 1 piece
- brand name
- VICPAS
- model
- 4PP220.1505-75
- Nearest port for product export
- Guangzhou, Hongknog, Shenzhen, Taiwan
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Fri, 22 Nov 2024 16:07:43 GMT
Paramtents
Brand B&R
Warranty 1 Year VICPAS Warranty
Model B&R Power Panel 200 4PP220.1505-75
Shipping DHL/FedEx/UPS/TNT/EMS/Aramex /DPEX
Size 15 inch
Packging & Delivery
-
Min Order1 piece
Briefing
Detailed

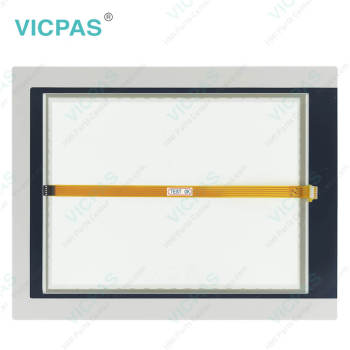

B&R Power Panel 200 4PP220.1505-75 Keyboard Membrane Touch Panel Front Overlay Repair Replacement
Order each part separately is available
The Power Panel 100 and Power Panel 200 product range encompasses a line of devices from operator panels with QVGA, VGA or XGA displays to visualization and machine control. Programmable with Automation Studio (Visual Components), these devices close the gap between Panelware and IPC-based systems. Depending on the design, the devices contain the embedded operating system Automation Runtime or a BIOS-based operating system such as windows CE or Windows XP Embedded. The number of onboard interfaces is reduced to a minimum and size is optimized to the smallest dimensions.
B&R Automation Runtime guarantees a uniform runtime environment for Automation Studio programs on all target systems. This ensures uniform programming and operation on all devices. Automation Runtime possesses a multitasking operating system adapted specially for use with control technology. The cycle time for your application can be separated among several task classes. Automation Runtime ensures that all application programs are executed within defined time periods, proving itself to be a configurable, deterministic real-time multitasking system. An extensive project can be divided into small individual tasks. This way of working increases modularity and makes it much easier to maintain projects.
Specifications:
The table below describes the parameters of the 4PP220.1505-75 Power Panel 200 Membrane Keyboard Keypad Touch Screen Protective Film.
| Part Number : | 4PP220.1505-75 |
| Product Line: | Power Panel 200 |
| Screen diagonal | 15 in |
| Warranty: | 365 Days Warranty |
| Input Power | 24 VDC |
| Display Type: | TFT color |
| Mounting position: | Vertical |
| Input Type: | Keypad/Touchscreen |
| Serial interface Type: | RS232 |
| Storage | -20 to 70°C |
Related Power Panel 200 Series Part No. :
| Power Panel 200 | Description | Inventory status |
| 4PP281.1043-75 | B&R Power Panel 200 Membrane Keyboard Keypad | In Stock |
| 4PP281.1043-B5 | PP200 B and R Membrane Keypad Switch Repair | Available Now |
| 4PP282.1043-75 | B&R Power Panel 200 Operator Panel Keypad | In Stock |
| 4PP282.1043-B5 | B and R Power Panel 200 Operator Keyboard Repair | In Stock |
| 4PP28X.1043 | Power Panel 200 B&R HMI Touch Screen Organizer | In Stock |
| 4PP250.1214-K01 | B and R Power Panel 200 Touch Panel Glass Repair | In Stock |
| 4PP220.1505-75 | PP200 B&R Touch Screen Panel Front Overlay Keyboard Membrane | Available Now |
| 4PP220.1505-B5 | Power Panel 200 B&R Touch Membrane Protective Film Switch Membrane | In Stock |
| 4PP220.1505-K03 | B and R Power Panel 200 Touch Digitizer Glass | Available Now |
| 4PP251.1505-75 | Power Panel 200 B&R HMI Membrane Keyboard Keypad | In Stock |
| 4PP251.1505-B5 | B and R Power Panel 200 Operator Panel Keypad Repair | In Stock |
| 4PP280.1505-75 | PP200 B&R Touch Screen Organizer Front Overlay Keyboard Membrane | Available Now |
| 4PP280.1505-B5 | B&R PP200 Touch Screen Tablet Front Overlay Membrane Keypad | In Stock |
| 4PP281.1505-75 | B&R Power Panel 200 Membrane Keypad Switch | In Stock |
| 4PP281.1505-B5 | Power Panel 200 B and R Membrane Keyboard Keypad | Available Now |
| B and R PP200 | Description | Inventory status |
FAQ:
Question:What are the functions of B&R Automation Device Interface (ADI) - Control Center?
Answer: The functions provided by the Automation Device Interface (ADI) - Control Center vary according to the device series.
To carry out a firmware upgrade, the following steps should be taken:
• Changing display-specific parameters
• Reading device-specific keys
• Updating the key configuration
• Enabling device-specific LEDs on a membrane keypad or keys
•Reading and calibrating control devices (e.g. key switches, handwheels, joysticks, potentiometers)
• Reading temperatures, fan speeds, statistical data and switch settings
• Reading operating hours (power-on hours)
• Reading user and factory settings
• Reading software versions
• Updating and backing up BIOS and firmware
• Creating reports about the current system (support assistance)
• Setting the SDL equalizer value when adjusting SDL cables
• Changing the user serial ID
Question:How can Power Panel 200 4PP220.1505-75 screen burn-in be avoided?
Answer:
• By constantly changing between static and dynamic images
• By avoiding excessive brightness differences between foreground and background elements
• By using colors with similar brightness
• By using complementary colors in follow-up images
• By using a screensaver
Question:What causes B&R 4PP220.1505-75 image sticking?
Answer:
• Static images
• Screensaver not enabled
• Sharp contrast transitions (e.g. black / white)
• High ambient temperatures
• Operation outside of the specifications
Common misspellings:
4P220.1505-75
4PP20.1505-75
4PP220.l505-75
4PP220.15O5-75
4PP220.1505-T5
