Mitsubishi GT1685M-STBD Protective Film Touch Screen
- group name
- Mitsubishi GOT1000 Series
- Min Order
- 1 piece
- brand name
- VICPAS
- model
- GT1685M-STBD
- Nearest port for product export
- Guangzhou, Hongknog, Shenzhen, Taiwan
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Sun, 24 Nov 2024 09:03:17 GMT
Paramtents
Brand Mitsubishi
Warranty 365 Days
Product Line Mitsubishi GOT1000 GT16 series
Supply GT1685M-STBD HMI Panel Glass Overlay
Size 12.1 inch
Model GT1685M-STBD
Packging & Delivery
-
Min Order1 piece
Briefing
Detailed

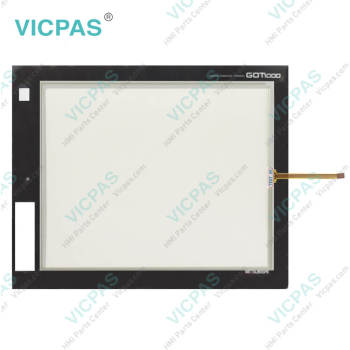

Mitsubishi GOT1000 GT16 series HMI GT1685M-STBD HMI Touch Glass Front overlay Repair Kit.
Order each part separately is available
The Mitsubishi GT16 series HMI GT1685M-STBD Touch Screen Hmi Overlay uses SQL statements to directly transmit data from the connected industrial devices to a database server. The communication with the database is configured in GT Works3 without any programming. There is no need for a gateway computer or complex programming to communicate with the MES database server.
With high-speed control and convenience fully assured, Mitsubishi GT16 series HMI GT1685M-STBD Touch Digitizer and Front overlay controllers compatible with the iQ Platform and the GOT1000 are the keys to higher productivity at lower cost. PLCs, motion controllers, CNCs, robot controllers, and C controllers are integrated into one as controllers compatible with the iQ Platform. The GOT1000 integrates different types of monitor units that were previously connected to each controller
During the servo amplifier/test operation, when the communication between the GOT1000 GT1685M-STBD and the servo amplifier is interrupted for 0.5[ms] or more, the servo amplifier decelerates, stops, and then gets into the servo lock status. During the servo amplifier/test operation, continue the communication constantly by monitoring the status display of the servo amplifier on the GOT1000 GT1685M-STBD screen, etc.
Specifications:
The table below describes the parameters of the GT1685M-STBD Mitsubishi GT16 Touch Glass Overlay.
| Part Number: | GT1685M-STBD |
| Display device: | TFT color LCD |
| Screen diagonal: | 12.1 in |
| Warranty: | 365 Days |
| Product Line: | Mitsubishi GT16 Series |
| Input Power: | 24VDC (+25%, -20%) |
| Operating Temperature: | 0 to 55°C |
| Resolution: | SVGA: 800 × 600 [dots] |
| Storage Temperature: | -20°C to 60°C |
| Cooling Method: | Self-cooling |
Related Mitsubishi GT16 Series Part No. :
| Mitsubishi GOT1000 | Description | Inventory status |
| GT1675-VNBA | Touch Screen Protective Film Mitsubishi GOT1000 GT16 | Available Now |
| GT1675-VNBD | Mitsubishi GT16 Touch Screen Glass Front Overlay | In Stock |
| GT1685M-STBA | Mitsubishi GOT1000 GT16 Touch Protective Film | In Stock |
| GT1685M-STBD | Mitsubishi GT16 Touch Screen Overlay Replacement | In Stock |
| GT1685-STBA | HMI Panel Glass Overlay GOT1000 GT16 Repair | Available Now |
| GT1685-STBD | Mitsubishi GOT1000 Front Overlay Touch Panel Glass | In Stock |
| GT1695M-XTBA | Mitsubishi GOT1000 Touch Screen Protective Film Repair | Available Now |
| GT1695M-XTBD | Mitsubishi GT16 Touch Digitizer Protective Film | In Stock |
| GT1695-XTBA | HMI Panel Glass Overlay GOT1000 GT16 Repair | Available Now |
| GT1695-XTBD | Mitsubishi GT16 HMI Panel Glass Front Overlay | In Stock |
| Mitsubishi GT16 HMI | Description | Inventory status |
Mitsubishi GOT1000 Series HMI Manuals PDF Download:
FAQ:
Question: What is the size of GT1685M-STBD Touch Screen Panel Glass?
Answer: The Mitsubishi GOT1000 GT16 GT1685M-STBD touch panel is 12.1-inch.
Question: How to installing and removing procedures of the GOT1000 GT1685M-STBD CF card?
Answer: Install/remove the CF card with the power supply of GOT is OFF or CF card access switch is "OFF".
Insert and install the CF card into the CF card interface with its front side outside.
2. Removing
1) Set the CF card access switch of the GOT to "OFF", and make sure that the CF card access LED turns off. (When the CF card access LED turns off, the CF card can be removed even during the GOT power on.)
2) Open the cover of the CF card interface.
Push the CF card eject button of the GOT.
(The CF card eject button is pulled out after pushing at once.)
Common misspellings:
GT1685M-STDGT165M-STBD
GT1685M-SBTD
GTl685M-STBD
GT1685M--STBD
