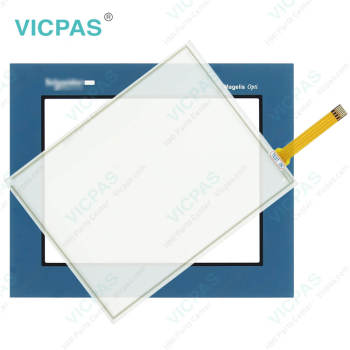

XBTOT4310 Magelis Front Overlay Touch Membrane

group name: Magelis XBT G/GC/GH/OT

Min Order: 1 piece

brand name: VICPAS

model: XBTOT4310

Nearest port for product export: Guangzhou, Hongknog, Shenzhen, Taiwan

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Wed, 08 Jan 2025 17:04:59 GMT

contact supplier

Paramtents

Brand Schneider
Warranty 365 Days
Product Line Schneider Magelis XBT OT series
Supply XBTOT4310 HMI Touch Glass Ovelay
Size 7.5 inch
Model XBTOT4310

Packging & Delivery

Min Order1 piece

Briefing

Schneider Magelis XBTOT4310 Protective Film Touch Screen Repair. 365 Days Warranty-Fully Tested-Factory Prices-Fast Shipping

Detailed

Schneider Magelis HMI XBTOT4310 Touch Screen Monitor Protective Film Repair Part

Order each part separately is available

Schneider Magelis HMI XBTOT4310 Touch Screen Monitor Protective Film Repair Kit

Schneider Magelis XBTOT4310 Touch screen panel glass protective film graphic screen operator dialogue terminals have the following functions:
• Displaying animated synoptic screens, control, modification of numeric and alphanumeric variables
• Displaying a service line (status and alarm bar) with the current time
• Dynamic visualization of operating data (setpoints, measurements, recipes, maintenance messages) and process errors
• Control via dynamic or static function keys
• Scaling analog variables
• Real-time and trending curves
• Alarm log and managing alarm groups
• Managing help pages, form pages, recipe pages
• Pages called by the user or by the PLC
• Three levels of passwords
• Printing form pages, date-stamped log and alarms
• Communication protocol application support in the PCMCIA Type II application memory card
The role of the XBTOT4310 Magelis Schneider Front Overlay Touch digiziter glass Terminal function keys is defined using the XBTL100• software. Modifications cannot be made during operation. Each XBTOT4310 function key can be associated with an internal bit of the PLC application.

VICPAS supply XBTOT4310 Magelis Schneider Operator Panel Keypad with 365 Days warranty and support Urgent Worldwide Shipping.

Contact Best Price

Specifications:

The table below describes the parameters of the XBTOT4310 Magelis Schneider Front Overlay Touch Screen.

Part Number:	XBTOT4310
Display device:	STN color LCD
Display Size:	7.5 in.
Warranty:	365 Days Warranty
Material:	Polyester or Polycarbonate

Rated Voltage:	DC 5V 1mA
Operating Temp.:	-10℃～+80℃
Storage Temp.:	-20℃～+70℃
Conductive Trace:	Silver or Copper
Life Cycle:	5 Million Cycles(up to)

Related Magelis Schneider XBT OT Series Part No. :

Magelis XBT OT	Description	Inventory status
XBTOT2110	basis touch panel -5.7-inch	In Stock
XBTOT2210	basis touch panel -5.7-inch	In Stock
XBTOT4310	basis touchscreen -7.5-inch	Available Now
XBTOT4320	basis touch screen -7.5-inch	Available Now
XBTOT5220	basis touchscreen -10.4-inch	In Stock
XBTOT5320	basis touchscreen -10.4-inch	Available Now
Schneider XBT OT	Description	Inventory status

Schneider XBT HMI Manuals PDF Download:

Schneider MAGELiS® Operator Terminals Guide

Schneider MAGELiSä XBT Operator Interface Brochure

FAQ:

Question: How to transfer the application to the XBTOT4310 Front Overlay Touch screen glass terminal?

Answer:
1. Install the terminal.
2. Connect the terminal to the PC as shown in the service instructions (XBT-Z915-V2.2 cable and adaptor XBT-Z962).
3. Turn the power on to the terminal.
When the terminal is switched on, the operating mode is selected automatically depending on the type of cable connected to the terminal:
• Terminal connected to the PC with the XBT-L1000 software: save mode.
• Terminal connected to the PLC: operating mode (with the possibility of switching to password protection mode).
4. Open the application to be transferred.
5. Select the Transfers/Export menu.
6. Answer the questions the software asks. The application is transferred.

Question: What is the size of XBTOT4310 Protective Film HMI Panel Glass?

Answer: The Schneider Terminal XBTOT4310 Touch Screen Monitor Front Overlay is 7.5-inch.

Common misspellings:

XBOT4310
BTOT4310
XBTOT3410
XBT0T4310
XBTOT43110
