C7-635 0005-4050-608 Membrane Keypad Plastic Shell

group name: Simatic C7 Series

Min Order: 1 piece

brand name: VICPAS

model: 0005-4050-608

Nearest port for product export: Guangzhou, Hongknog, Shenzhen, Taiwan

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Thu, 21 Nov 2024 23:04:20 GMT

contact supplier

Paramtents

Brand Siemens
Warranty 365 Days
Product Line Siemens C7 series
Width 257.5mm
Height 229mm
Supply Siemens C7 series Membrane Keyboard Plastic Shell
model 0005-4050-608

Packging & Delivery

Min Order1 piece

Briefing

0005-4050-608 Siemens Simatic HMI C7 635 membrane keyboard. 365 Days Warranty-Fully Tested-Factory Prices-Fast Shipping

Detailed

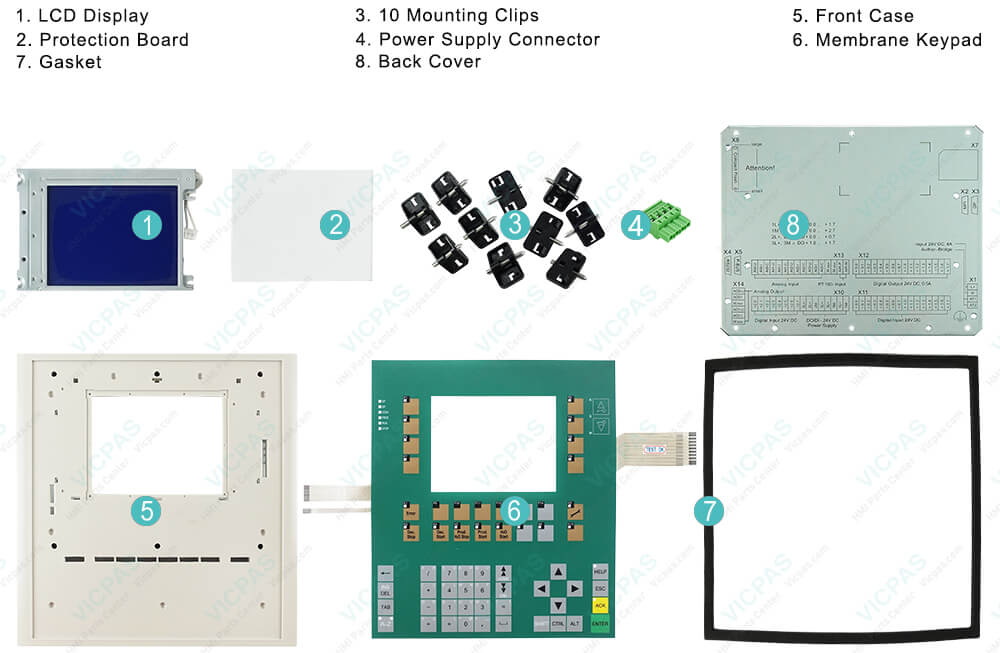

0005-4050-608 Siemens SIMATIC HMI C7-635 Membrane Keyboard, Protection Panel, Housing, LCD Display Screen, Mounting Clips, Gasket and Power Supply Connector Repair

Order each part separately is available

0005-4050-608 Siemens SIMATIC HMI C7-635 Touchscreen, Membrane Keyboard, Plastic Shell, LCD Screen, Gasket, Mounting Clips and Power Supply Connector Repair Replacement

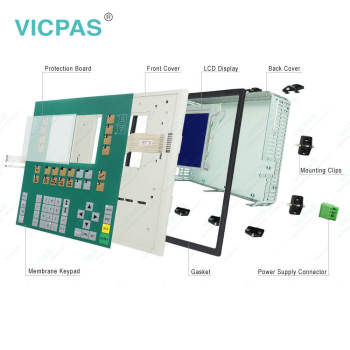

VICPAS supply 0005-4050-608 Siemens C7 635 optical glass, membrane switch, Mounting Clips, LCD Display, Gasket and Power Supply Connector and plastic shell body with 365 days warranty and support Urgent Worldwide Shipping.

The user program controlling the process runs on the C7-635 0005-4050-608 Terminal Keypad Front Cover.
The following functional units determine the mode of operation of the C7-635:
• Loading memory
The loading memory is located on the Micro Memory Card (MMC) and contains the user program.
• Processor
The processor executes the program cyclically:
– At the beginning of the cycle, the processor reads the signal states on all inputs and generates a process image of the inputs (PII).
– The program is executed step-by-step using internal counters, bit memory, and timers.
– The processor stores the calculated signal states in the process output image (POI). At the end of the cycle, the process image is transmitted to the outputs.

Contact Best Price

Specifications:

The table below describes the parameters of the 0005-4050-608 Siemens c7-635 HMI Parts.

Part Number :	0005-4050-608
Firmware version:	V2.0.12
Programming:	STEP 7 V5.2 + SP1
Warranty:	6-Months Warranty
Product Line:	Siemens c7-635

Rated value (DC):	24 V
Number of digital outputs:	16
Design as touch screen:	YES
Keyboard fonts:	US English
Interface type:	Integrated RS 485 interface

Related Siemens Simatic C7-635 Part No. :

Siemens C7-635	Description	Inventory status
6ES7635-2SB00-0AC0	GEA C7-635 Siemens	Available Now
6ES7635-2SB01-0AC0	SIMATIC C7-635 GEA	In Stock
6ES7635-2SB02-0AC0	SIMATIC C7-635 GEA	In Stock
0005-4050-400	SIPLUS GEA C7-635	In Stock
0005-4050-408	SIMATIC GEA C7-635	In Stock
0005-4050-608	SIPLUS GEA C7-635	Available Now
0005-4050-630	SIPLUS C7-635 GEA	In Stock
SIMATIC C7 635	Description	Inventory status

Siemens C7 635 series HMI Manuals PDF Download:

6AG1935-2SB00-4AC0 SIMATIC HMI c7 635 datasheet pdf

Siemens Simatic c7-635 series HMI operator panel keypad manual

FAQ:

Question: How to replace the C7-635 0005-4050-608 Plastic Case Enclosure Membrane Keypad Keyboard Terminal？

Answer: A C7-635 is not designed for onsite repair. Therefore, a defective C7-635 must be replaced. To save the configuration of the TP/OP, you should have a Compact Flash Card (CF Card). You should make a backup of the configuration on the CF card as soon as you have finished commissioning the device, so that you can restore the configuration if the device becomes defective.
How to replace the C7-635 0005-4050-608 Plastic Case Enclosure Membrane Keypad Keyboard Terminal？

Question: How to install 0005-4050-608 Simatic c7-635 ?

Answer:1. C7-635 Touch:Make a cutout in the control cabinet door(dimensions 231+1.0 x 183+1.0 mm).
C7-635 Key:Make a cutout in the control cabinet door(dimensions 231+1.0 x 257+1.0 mm).
2. Ensure that no Compact Flash Card (CF Card) is inserted into the C7-635. The CF Card protrudes from the C7-635 and could be damaged when the device is installed.
3. Place the C7-635 in the prepared cutout in the control cabinet door. Ensure that the gasket is applied evenly to the metal plate.
4. Guide the fastening hooks of the provided mounting supports (for the C7-635 Touch, 8 mounting supports; for the C7-635 Key, 10 mounting supports) into the intended recesses in the C7-635 housing. Figure provides an example of the mechanical fastening of the C7-635 Touch.
5. Using a screwdriver, tighten the C7-635 evenly and crosswise from behind the control cabinet door until the front panel of the C7-635 rests on the control cabinet door. Situate the device so that there are even spacing on all sides between the housing and the cutout section
