6AV7240-3BC17-0KA4 6AV7240-3BC17-0QA2 Touch Film
- group name
- SIMATIC IPC 477
- Min Order
- 1 piece
- brand name
- VICPAS
- model
- 6AV7240-3BC17-0KA4 6AV7240-3BC17-0QA2
- Nearest port for product export
- Guangzhou, Hongknog, Shenzhen, Taiwan
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Fri, 22 Nov 2024 20:26:10 GMT
Paramtents
Brand Siemens
Warranty 365 Days
Product Line IPC 477
Supply IPC 477 Touchscreen and Protective Film
Size 15 inch
Name 6AV7240-3BC17-0KA4 6AV7240-3BC17-0QA2
Packging & Delivery
-
Min Order1 piece
Briefing
Detailed

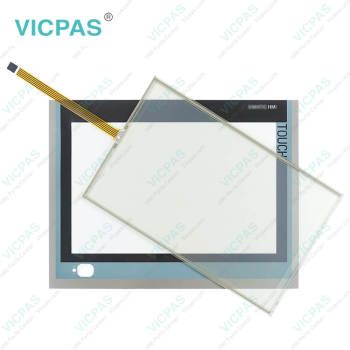

6AV7240-3BC17-0KA4 6AV7240-3BC17-0QA2 Siemens SIMATIC HMI IPC 477 Touch Screen Panel Front Overlay Repair Replacement
Order each part separately is available
The SIMATIC IPC477D 6AV7240-3BC17-0KA4 6AV7240-3BC17-0QA2 is available in the following device variants, which differ in regard to the display size, operating method and optional expansions:
Built-in units with capacitive multi-touch screen
● Display:
– 15.6" display, resolution: 1366 x 768 pixels
– 19" display, resolution: 1366 x 768 pixels
– 22" display, resolution: 1920 x 1080 pixels
● with DVD drive
● with PCIe slot
● with DVD drive and PCIe slot
PRO device with capacitive multi-touch screen
● Display:
– 15'' display, resolution: 1366 x 768 pixels (available as of 11/2016)
– 19" display, resolution: 1366 x 768 pixels
– 22" display, resolution: 1920 x 1080 pixels
● optionally prepared for:
– Support arm without extension elements (flange on top)
– Support arm and extension elements (round tube)
– Stand/extension elements (flange on bottom)
● A base adapter and adapter sets that can be ordered separately support mounting systems from various manufacturers.
– Base adapter for support arm and stand included in the scope of delivery.
– Cover plate for device version for support arm and extension elements included in the scope of delivery.
● Fully dust-proof and splash-proof with IP65 degree of protection and Enclosure Type 4X / 12 (indoor use only)
● With SSD and CFast card
Devices with resistive single touch screen
● Display:
– 12'' display, resolution: 1280 x 800 pixels
– 15" display, resolution: 1280 x 800 pixels
– 19" display, resolution: 1366 x 768 pixels
– 22" display, resolution: 1920 x 1080 pixels
● with DVD drive (not for device with 12" display)
● with PCIe slot (not for device with 12" display)
● with DVD drive and PCIe slot (not for device with 12" display)
Touch/Key devices with resistive single touch screen
● Display:
– 15" display, resolution: 1280 x 800 pixels
● with DVD drive
● with PCIe slot
● with DVD drive and PCIe slot
● Membrane keyboard with alphanumeric keys, numeric keys, cursor keys, control keys, function keys, and softkeys
Specifications:
The table below describes the parameters of the 6AV7240-3BC17-0KA4 6AV7240-3BC17-0QA2 Siemens IPC 477 Spare Parts.
| Part Number: | 6AV7240-3BC17-0KA4 6AV7240-3BC17-0QA2 |
| Size: | 15 inch |
| Display: | TFT |
| Warranty: | 365 days Warranty |
| Product Line: | Siemens IPC 477 |
| Resolution: | 1280 x 800 |
| Number of colors: | 256 |
| Control elements: | Touch Screen |
| MTBF: | 30 000 h |
| PLC Connection: | SIMATIC S7-200 |
Related Siemens Simatic IPC 477D 15" No. :
| Simatic IPC 477D | Description | Inventory status |
| 6AV7240-3BB06-0HA0 | SIMATIC IPC 477D, 15" TOUCH DISPLAY Touch Screen Protective Film Repair | In Stock |
| 6AV7240-3BB10-6KA2 | SIMATIC IPC 477D, 15" TOUCH DISPLAY Touch Panel Protective Film | Available Now |
| 6AV7240-3BB14-6KA2 | SIMATIC IPC 477D, 15" TOUCH DISPLAY Touchscreen Protective Film Repair | In Stock |
| 6AV7240-3BC04-0DD0 | SIMATIC IPC 477D, 15" TOUCH DISPLAY Touch Screen Glass Protective Film | Available Now |
| 6AV7240-3BC04-0HA0 | SIMATIC IPC 477D, 15" TOUCH DISPLAY Touch Screen Panel Front Overlay | In Stock |
| 6AV7240-3BC07-0HA0 | SIMATIC IPC 477D, 15" TOUCH DISPLAY Front Overlay Touch Membrane | In Stock |
| 6AV7240-3BC07-6HA0 | SIMATIC IPC 477D, 15" TOUCH DISPLAY Touch Glass Front Overlay | In Stock |
| 6AV7240-3BC14-0HA0 | SIMATIC IPC 477D, 15" TOUCH DISPLAY Touch Digitizer Glass Overlay Repair | Available Now |
| 6AV7240-3BC17-0KA4 | SIMATIC IPC 477D, 15" TOUCH DISPLAY HMI Panel Glass Protective Film | Available Now |
| 6AV7240-3BC17-0QA2 | SIMATIC IPC 477D, 15" TOUCH DISPLAY Touch Screen Monitor Front Overlay | In Stock |
| Siemens IPC 477 D | Description | Inventory status |
Siemens IPC 477 HMI Manuals PDF Download:
FAQ:
Question: What is the 6AV7240-3BC17-0KA4 6AV7240-3BC17-0QA2 Siemens IPC 477 HMI parts Protective Film Touch Screen Panel Glass price?
Answer: Submit a fast quote, send VICPAS an email for best price.
Question: How to connect the Siemens Simatic IPC 477 D 6AV7240-3BC17-0KA4 6AV7240-3BC17-0QA2 power supply cord?
Answer:
1. Set the switch to the "Off" position, as shown.
2. Remove the two marked screws of the mains plug fastener.
3. Insert the power cable into the socket and fasten the power plug fastener with the marked screws.
Common misspellings:
6AV7240-3B17-0KA4AV7240-3BC17-0KA4
6AV7240-3BC17-Q0A2
6AV7240-3BCl7-0QA2
6AV7240-3BC117-0QA2
