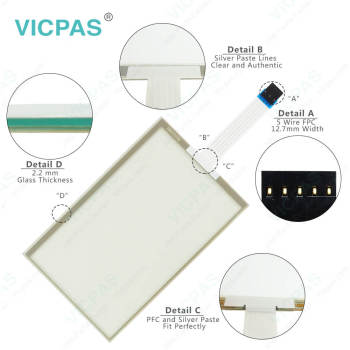

T070S-5RBH03N-0A11R0-080FH Higgstec Touch Screen

T070S-5RBH03N-0A11R0-080FH Higgstec Touch Screen
T070S-5RBH03N-0A11R0-080FH Higgstec Touch ScreenT070S-5RBH03N-0A11R0-080FH Higgstec Touch ScreenT070S-5RBH03N-0A11R0-080FH Higgstec Touch Screen
group name
Higgstec Touch Screen
Min Order
1 piece
brand name
VICPAS
model
T070S-5RBH03N-0A11R0-080FH
Nearest port for product export
Guangzhou, Hongknog, Shenzhen, Taiwan
Delivery clauses under the trade mode
FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
Acceptable payment methods
T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
update time
Fri, 22 Nov 2024 00:07:20 GMT

Paramtents

  • Brand Higgstec Touch Screen

  • Display Size 7 inch

  • Warranty 365 Days

  • Shipping 2-4 workdays

  • Supply Parts T070S-5RBH03N-0A11R0-080FH Touchscreen Panel

  • Touch screen panel type Resistance touch screen

Packging & Delivery

  • Min Order1 piece

Briefing

Higgstec T070S-5RBH03N-0A11R0-080FH Touch Screen Monitor Spare Part. It is brand new and good quality with a year warranty.

Detailed

Higgstec Touch Screen T070S-5RBH03N-0A11R0-080FH Repair Replacement


Higgstec T070S-5RBH03N-0A11R0-080FH HMI Panel Glass repair replacement

Benefits of Higgstec T070S-5RBH03N-0A11R0-080FH True Flat Resistive Touch Digitizer Glass Solution
(1) Appearance
Flush zero-bezel surface, more visually attractive surface, more visually attractive, more customization and easier to keep clean, prevents dirt/ dust build-up or water to enter via bezel
(2) Durability
Tested for up 35 million touches. Higgstec T070S-5RBH03N-0A11R0-080FH Touchscreen Panel Glass High-temperature production process ensures excellent durability even in harsh operating temperatures.
(3) Operation
Precise linearity, stable and no drifting. Versatile input: fingers, gloves, passive stylus.
(4) Mechanical
Higgstec T070S-5RBH03N-0A11R0-080FH Touch Screen Monitor 5-Wire resistive design ensures long-lasting stability and functionality even if surface is scratched or broken. Hotkey buttons can be incorporated onto front bezel.


Higgstec T070S-5RBH03N-0A11R0-080FH True Flat Resistive touch solution combines the simplicity, versatility and durability of our 5-wire resistive technology with an attractive zero-bezel design. The flush surface is easier to clean and there will be no dust or dirt buildup or water leakage into the bezel, making it an excellent solution for sterile or dust free environments such as medical clinics, scientific laboratories, restaurants or food processing areas. What's more, you now also incorporate features such as logos or hotkey buttons on the cover design.




Specifications:

The table below describes the parameters of the Higgstec T070S-5RBH03N-0A11R0-080FH Touch Panel Spare Part.

Number of Touches: Single
Product Line: Higgstec
Interface: USB / RS232 / COMBO
Warranty: 1-Year Warranty
Touch Activation Force: Stylus ≦ 50g
Display Size: 7 inch
Linearity: X ≦ 1.5%, Y ≦ 1.5%
Tail Options: FFC/ FPC tail
Resolution: 4096 X 4096
Response time: ≦ 20ms


Related Higgstec Touch Screen HMI Part No. :

Higgstec Touch Screen Description Inventory status
T070S-5RBF03N-3A18R4-080FH Higgstec Touch Screen Glass Replacement In Stock
T070S-5RBH03N-0A11R0-080FH Higgstec Touch Screen Panel Replacement Available Now
T070S-5RBT03N-3A18R4-080FH Higgstec HMI Touchscreen Repair Part In Stock
T080S-5RB004G-0A18R0-150FH Higgstec HMI Touch Screen Glass Available Now
T080S-5RB004N-0A18R0-150FH Higgstec Touch Screen Panel Repair In Stock
T080S-5RB004X-0A18R0-150FH Higgstec Touch Membrane Repair In Stock
T080S-5RB006X-0A11R0-200FH Higgstec HMI Touch Glass Repair In Stock
T080S-5RBA04X-0A11R0-150FH Higgstec HMI Panel Glass Replacement Available Now
T084S-5RA002N-0A18R0-150FH Higgstec Touch Digitizer Glass Repair Available Now
T084S-5RA002X-0A18R0-150FH Higgstec Touch Screen Monitor Repair In Stock
Higgstec Touch Panel Description Inventory status

Higgstec Touch Screen Panel HMI Manuals PDF Download:

  • Higgstec T070S-5RB003N-0A11R0-080FH Manual Datasheet
  • Higgstec T070S-5RB003X-0A11R0-080FH Manual Datasheet
  • Higgstec T070S-5RB018X-0A11R0-080FH Manual Datasheet

  • FAQ:

    Question: How to test Higgstec T070S-5RBH03N-0A11R0-080FH Touch Screen Panel Glass?

    Answer:
    Linearity Condition
    Step 1: short RT and RL (or short RL and LL).
    Step 2: apply voltage DC 5V.
    Step 3: short LT and LL (or short RT and LT).
    Step 4: apply grounding.
    Step 5: draw points along LX and LY at 5.0mm intervals within pattern area and detect the voltage at SG.
    Step 6: measure the voltage differences between RT and LT (or RT and RL)
    How to test Higgstec T070S-5RBH03N-0A11R0-080FH Touch Screen Panel Glass?
    How to test Higgstec T070S-5RBH03N-0A11R0-080FH Touch Screen Panel Glass?
