1201-120R B TTI 1201-X111 07-NA 1201-X111/04 NA Touch Panel
- group name
- TTI Touch Panel
- Min Order
- 1 piece
- brand name
- VICPAS
- model
- 1201-120R B TTI 1201-X111 07-NA 1201-X111/04 NA
- Nearest port for product export
- Guangzhou, Hongknog, Shenzhen, Taiwan
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Fri, 29 Nov 2024 11:49:10 GMT
Paramtents
Brand TTI Touch Screen
Warranty 365 Days
Supply TTI Touch Digitizer Glass Replacement Spare Part
Size 11.3 inch
Touch Screen Type Resistance touch screen
Part Number 1201-120R B TTI 1201-X111 07-NA 1201-X111/04 NA
Packging & Delivery
-
Min Order1 piece
Briefing
Detailed

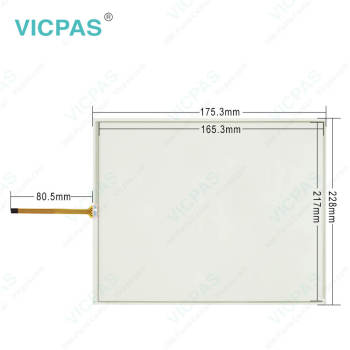

1201-120R B TTI 1201-X111 07-NA 1201-X111/04 NA Touch Screen Panel Glass Repair
VICPAS supply 1201-120R B TTI 1201-X111 07-NA 1201-X111/04 NA HMI panel glass with VICPAS 365 days warranty and support Urgent Worldwide Shipping. 1201-120R B TTI 1201-X111 07-NA 1201-X111/04 NA TTI TOUCH PANEL is resistance type that customer uses with flat display as a LCD. Once user touches it by a resin PEN with round end or by FINGER directly, the circuit for 1201-120R B TTI 1201-X111 07-NA 1201-X111/04 NA Touch Screen Panel sends coordinate point to PC from voltage at contact point. Not seen from 1201-120R B TTI 1201-X111 07-NA 1201-X111/04 NA PANEL film side under fluorescent lamp, exclude from 1201-120R B TTI 1201-X111 07-NA 1201-X111/04 NA PANEL glass side. (Distance 20~30cm from eyes to 1201-120R B TTI 1201-X111 07-NA 1201-X111/04 NA Touch Screen Panel Glass)
1201-120R B TTI 1201-X111 07-NA 1201-X111/04 NA Resistive Touch Panel 4-Wire Features:
• Superior quality standard 4 wire resistive analog touch panel
• Excellent specification and high quality
- Anti Newton ring technology
- High reliability materials
• Pen/finger type
• Transparency - 80% typical
• RoHS compliant
Specifications:
The table below describes the parameters of the 1201-120R B TTI 1201-X111 07-NA 1201-X111/04 NA Touchscreen Parts.
| Warranty: | 1-Year Warranty |
| Product Line: | TTI Touch Panel |
| Number of Touches: | Single |
| Storage Temperature: | -20˚C to 70˚C |
| Operating Temperature (*): | -5˚C to 60˚C |
| Touch Size: | 11.3 inch |
| Tail Options: | FPC tail |
| Response time: | ≦ 30ms |
| Operating Humidity: | 20% to 85% RH |
| Storage Humidity: | 10% to 90% RH |
Related TTI Touch Screen HMI Part No. :
| TTI Touch Screen | Description | Inventory status |
| 0516-X123 03-TW | TTI Touch Screen Glass Replacement | In Stock |
| 1201-120R B TTI 1201-X111 07-NA 1201-X111/04 NA | TTI Touch Screen Panel Replacement | Available Now |
| 1201-680 B TTI | TTI HMI Touchscreen Repair Part | In Stock |
| 1201-800 A TTI 1301-X911 01 | TTI HMI Touch Screen Glass Repair | Available Now |
| 1201-X151 A TTI 1201-X151 02 | TTI Touch Screen Panel Replacement | In Stock |
| 1201-X231 03 1305-524 C TTI | TTI Touch Membrane Replacement | In Stock |
| 1301-010 02 | TTI HMI Touch Glass Replacement | In Stock |
| 1301-X161 A TTI 1301-161 D TTI | TTI HMI Panel Glass Replacement | Available Now |
| 1301-840 A TTI 1201-X131-01 T010-1201-X131-01 | TTI Touch Digitizer Glass Repair | Available Now |
| 1301-910 BTTI 1301-X911 01 | TTI Touch Screen Monitor Repair | In Stock |
| 1301-X161 1301-161 B TTI | TTI HMI Touch Panel Replacement | Available Now |
| 1301-X991 02-NA | TTI HMI Touchscreen Repair Part | In Stock |
| TTI Touch Panel | Description | Inventory status |
FAQ:
Question: Attention of 1201-120R B TTI 1201-X111 07-NA 1201-X111/04 NA Touch Panel Mounting Condition?
Answer:
(1) The gasket support of the 1201-120R B TTI 1201-X111 07-NA 1201-X111/04 NA touch panel must allocate outside of Viewable Area. Reserve enough clearance between 1201-120R B TTI 1201-X111 07-NA 1201-X111/04 NA panel surface and enclosure for normal panel operation.
To avoid pressing error, please retain enough space between the 1201-120R B TTI 1201-X111 07-NA 1201-X111/04 NA surface panel and Bezel.
(2) Bezel opening must not touch 1201-120R B TTI 1201-X111 07-NA 1201-X111/04 NA touch digitizer Viewable Area; Bezel opening must be designed between 1201-120R B TTI 1201-X111 07-NA 1201-X111/04 NA touchscreen panel screen Viewable Area and Active Area.
(3) We recommend elastic material support.
(4) Due to the conductive characteristic of the panel backside, prevent metal contact after mounting.
(5) Do not use adhesive to bond top surface (ITO Film) of 1201-120R B TTI 1201-X111 07-NA 1201-X111/04 NA touch panel with enclosure.
(6) Proper grounding of the controller at all times assures normal operation.
(7) During assembly. Please take into consideration the variance in the different module designs, whether it would cause physical, cosmetic or functional damages to the 1201-120R B TTI 1201-X111 07-NA 1201-X111/04 NA touch panel when completing the assembly.
(8) After installation，please perform 4 point and 25-point calibration.
