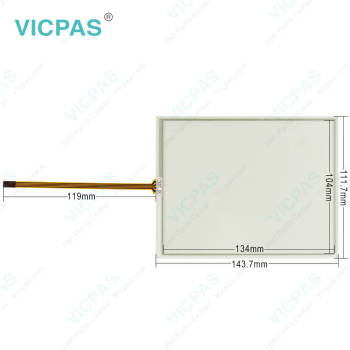

TT10240A31H S4064C11P4Z3AS1OE4220518 Touch Panel Glass
- group name
- TTI Touch Panel
- Min Order
- 1 piece
- brand name
- VICPAS
- model
- TT10240A31H S4064C11P4Z3AS1OE4220518
- Nearest port for product export
- Guangzhou, Hongknog, Shenzhen, Taiwan
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Wed, 08 Jan 2025 18:20:36 GMT
Paramtents
Warranty 365 Days
Shipping 2-4 workdays
Brand TTI Touch Screen
Touch screen panel type Resistance touch screen
Display Size 6.4 inch
Supply Parts TTI Touchscreen Panel
Part Number TT10240A31H S4064C11P4Z3AS1OE4220518
Packging & Delivery
-
Min Order1 piece
Briefing
Detailed
TT10240A31H S4064C11P4Z3AS1OE4220518 Touch Membrane HMI Repair Replacement
Since TT10240A31H S4064C11P4Z3AS1OE4220518 touch panel is consist of Glass, pls. be careful your hand and other part from injury at handling. You must wear gloves at handling. Do not lift TT10240A31H S4064C11P4Z3AS1OE4220518 Touch Panel by cable (FPC). Do not add any stress only film face. (Ex. Don’t transfer the panel by film face with vacuum). Do not put a heavy shock or stress on TT10240A31H S4064C11P4Z3AS1OE4220518 touch panel. Pls. use dry cloth or soft cloth with neutral detergent (after wring dry) or one with ethanol at cleaning. Do not pile TT10240A31H S4064C11P4Z3AS1OE4220518 Touch Glass. Do not bend a cable of TT10240A31H S4064C11P4Z3AS1OE4220518 Panel Glass for prevent happen to line cut failure. Do not put heavy goods on TT10240A31H S4064C11P4Z3AS1OE4220518 Touch Screen Panel. Do not use any organic solvent, acid or alkali solution.
Specifications:
The table below describes the parameters of the TT10240A31H S4064C11P4Z3AS1OE4220518 Touch Screen HMI Part.
| Touch Size: | 6.4 inch |
| Tail Options: | FPC tail |
| Response time: | ≦ 30ms |
| Operating Humidity: | 20% to 85% RH |
| Storage Humidity: | 10% to 90% RH |
| Product Line: | TTI Touch Panel |
| Number of Touches: | Single |
| Warranty: | 1-Year Warranty |
| Operating Temperature (*): | -5˚C to 60˚C |
| Storage Temperature: | -20˚C to 70˚C |
Related TTI Touch Screen HMI Part No. :
| TTI Touch Screen | Description | Inventory status |
| TT05240A10 | TTI Touch Screen Glass Replacement | In Stock |
| TT05240A40 | TTI Touch Screen Panel Replacement | Available Now |
| TT06150A40F S5156E18P5Z3AD61FB010192 | TTI HMI Touchscreen Repair Part | In Stock |
| TT10060A40 S612S18P6L3AS1164400145 | TTI HMI Touch Screen Glass Repair | Available Now |
| TT10240A30 | TTI Touch Screen Panel Replacement | In Stock |
| TT10240A30H S4085C11P4Z3AS10B7M21442 | TTI Touch Membrane Replacement | In Stock |
| TT10240A31H S4064C11P4Z3AS1OE4220518 | TTI HMI Touch Glass Replacement | In Stock |
| TT10340A30H S41084005FA77B320306 | TTI HMI Panel Glass Replacement | Available Now |
| TT11350A90H S5150E28P5L3AS1UB4450612 | TTI Touch Digitizer Glass Repair | Available Now |
| TT11350A90H S5150E28P5L3AS1YCB850407 | TTI Touch Screen Monitor Repair | In Stock |
| TT11350A90H S5150E28P5L3AS1YCB850909 | TTI HMI Touch Panel Replacement | Available Now |
| TT11350A90H S5171E28P5L3AS1WC7L30544 | TTI HMI Touchscreen Repair Part | In Stock |
| TTI Touch Panel | Description | Inventory status |
FAQ:
Question: How to test TT10240A31H S4064C11P4Z3AS1OE4220518 Touch Screen Panel Glass?
Answer:
Linearity Condition
Step 1: short RT and RL (or short RL and LL).
Step 2: apply voltage DC 5V.
Step 3: short LT and LL (or short RT and LT).
Step 4: apply grounding.
Step 5: draw points along LX and LY at 5.0mm intervals within pattern area and detect the voltage at SG.
Step 6: measure the voltage differences between RT and LT (or RT and RL)
Common misspellings:
TT10240A31H S4064C1P4Z3AS1OE4220518
T10240A31H S4064C11P4Z3AS1OE4220518
TT10240A31H S4064C11P4Z3AS1OE4220158
TT10240A31H S4064C11P4Z3AS10E4220518
TT10240A3lH S4064C11P4Z3AS1OE4220518
TT10240A31H S4064CC11P4Z3AS1OE4220518
TT10240AA31H S4064C11P4Z3AS1OE4220518
