Proface AGP3560-T1-AF-M PFXGP3560TAAC Panel Glass Film
- group name
- AGP3000 Series
- Min Order
- 1 piece
- brand name
- VICPAS
- model
- AGP3560-T1-AF-M PFXGP3560TAAC
- Nearest port for product export
- Guangzhou, Hongknog, Shenzhen, Taiwan
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Sun, 24 Nov 2024 18:40:46 GMT
Paramtents
Brand Proface
Size 10.4 inch
Warranty 365 Days
Product Line Proface AGP3000 Series
Supply AGP3000 Touch Screen Protective Film
Part Number AGP3560-T1-AF-M PFXGP3560TAAC
Shipping 2-4 workdays
Packging & Delivery
-
Min Order1 piece
Briefing
Detailed

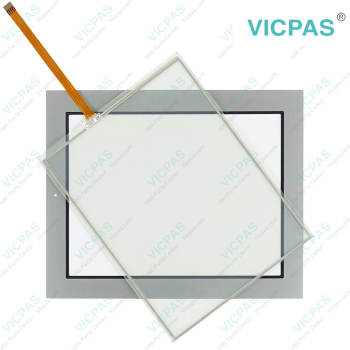

Proface AGP3000 AGP3560-T1-AF-M PFXGP3560TAAC Front Overlay Touch Panel Replacement
Order each part separately is available
AGP3560-T1-AF-M PFXGP3560TAAC 10.4" Touchscreen Front Overlay Multi-Port Operator Interface Features:
• 65,536 Colors, Clear, Bright, 640 x 480 or 800 x 600 resolution, STN Display
• 64-bit RISC 266Mhz CPU for Ultra-Fast Screen Refresh and Data Sampling
• No Grid Analog AGP3560-T1-AF-M PFXGP3560TAAC Touch Panel for Improved Visibility and Precise Part Placement
• Supports Up to Four Protocol Drivers Simultaneously
• High-Speed Application Transfer, 10 Times Faster than Conventional Operator Interfaces
• 10 Base-T/100 Base-TX Ethernet, USB, Serial (MPI) and CompactFlash™ Communication Interfaces
• Audio Output, Alarm, Buzzer Remote Reset Interfaces
• Video Camera Support using Optional GP3000- VM01 Video Mix Module
VICPAS supply Pro-face AGP3560-T1-AF-M PFXGP3560TAAC Protective Film and Touch Panel with 365 days warranty and support Urgent Worldwide Shipping.
Specifications:
The table below describes the parameters of the Proface AGP3000 AGP3560-T1-AF-M PFXGP3560TAAC Touch Screen Monitor Front Overlay HMI Parts.
| Ambient temperature: | 0°C (32°F) to 50°C (122°F) |
| Display Resolution: | 640 x 480 pixels |
| Part Number: | 3581301-03 |
| Product Line: | Proface AGP3000 |
| Touch Size: | 10.4" |
| Brand: | Proface |
| Display Type: | TFT Color LCD |
| Power supply: | 24 V DC |
| Storage Temperature: | -20°C (-4°F) to 60°C (140°F) |
| Warranty: | 365 Days |
Related Proface AGP3500 Series HMI Part No. :
| Proface AGP3500 | Description | Inventory status |
| AGP3510-T1-AF | Proface AGP3000 AGP3500 Touch Screen Monitor Front Overlay | In Stock |
| AGP3510-T1-AF-CA1M | Proface AGP3000 AGP3500 Touch Screen Protective Film Replacement | In Stock |
| AGP3550-T1-AF | Proface AGP3000 AGP3500 Touch Panel Protective Film Repair | Available Now |
| AGP3550-T1-AF-M | Proface AGP3000 AGP3500 Touchscreen Protective Film Repair | In Stock |
| AGP3560-T1-AF | Proface AGP3000 AGP3500 HMI Touch Screen Glass Protective Film | Available Now |
| AGP3560-T1-AF-M | Proface AGP3000 AGP3500 Touch Screen Panel Front Overlay Repair | In Stock |
| Proface AGP3500 | Description | Inventory status |
Proface AGP3000 Series HMI Manuals PDF Download:
FAQ:
Question: Switches do not respond. So let me know how to check the AGP3560-T1-AF-M PFXGP3560TAAC touch panel on the display unit.
Solution: For check method of AGP3560-T1-AF-M PFXGP3560TAAC touch panel in online, please refer to the following.
1. Enter offline to check the AGP3560-T1-AF-M PFXGP3560TAAC touch panel.
Please enter the offline mode to execute the following self-diagnosis.
(1) For the display unit of the analog AGP3560-T1-AF-M PFXGP3560TAAC touch panel technology, the analog AGP3560-T1-AF-M PFXGP3560TAAC touch panel is corrected (calibration settings).
Please check if the switch responds or not by setting the GP unit to online after the calibration.
(2) Select the [Check Touch Panel] option and check that the touched area lights up properly.
(3) If the problem continues after steps (1) and (2), the AGP3560-T1-AF-M PFXGP3560TAAC display unit may be faulty.
2. Corrective Response for the case that you cannot enter offline mode
When the AGP3560-T1-AF-M PFXGP3560TAAC display unit cannot enter offline mode, try the following measures.
(1) The [System Menu] used to enter offline mode may be set to be hidden.
If the system menu does not open, in GP-Pro EX, from [Display Unit], [Menu and Error Settings], the [Show System Menu] property is set to setting to display it, and then transfer the project file again.
If the AGP3560-T1-AF-M PFXGP3560TAAC Protective Film Touch Screen display unit can enter offline mode after the project file is transferred, follow the steps described in [・ When you enter offline mode], above.
(2) If the AGP3560-T1-AF-M PFXGP3560TAAC Touch Panel Front Overlay display unit cannot enter offline mode even after step 1), the display unit may be faulty.
Common misspellings:
AGP3560-1-AF-M PFXGP3560TAACAGP3560-T1-AF-M FXGP3560TAAC
AGP3560-T1-FA-M PFXGP3560TAAC
AGP3560-T1-AF-M PFXGP35607AAC
AGP3560-T11-AF-M PFXGP3560TAAC
