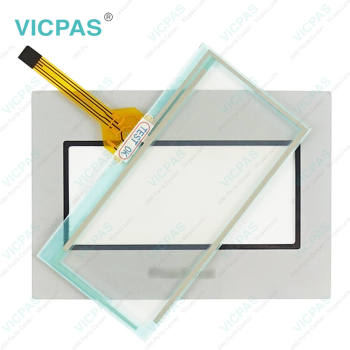

Pro-face 3910017-05 GP4107G1D HMI Panel Glass Overlay
- group name
- GP4000 Series
- Min Order
- 1 piece
- brand name
- VICPAS
- model
- 3910017-05 GP4107G1D PFXGP4107G1D
- Nearest port for product export
- Guangzhou, Hongknog, Shenzhen, Taiwan
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Sun, 24 Nov 2024 16:26:45 GMT
Paramtents
Brand Proface
Size 3.4 inch
Warranty 365 Days
Product Line Proface GP4000 Series
Supply GP-4107G Touch Digitizer Glass Front Overlay
Shipping 2-4 workdays
Part Number 3910017-05 GP4107G1D PFXGP4107G1D
Packging & Delivery
-
Min Order1 piece
Briefing
Detailed
Proface GP4000 GP-4107G 3910017-05 GP4107G1D PFXGP4107G1D Protective Film HMI Panel Glass
Order each part separately is available
3910017-05 GP4107G1D PFXGP4107G1D Protective Film HMI Panel Glass machine Features
• 65k Color, Clear, Bright, High-Resolution TFT Display
• Energy Efficient LED Display
• No Grid Analog Touch Panel for Improved Visibility and Precise Part Placement
• Supports different types of Protocol Drivers (communicates to two selected drivers)
• Separate front & rear module for quick installation in 22mm hole
• 10/100 Base-T Ethernet, and USB
This dedicated operator interface 3910017-05 GP4107G1D PFXGP4107G1D touch screen is ideal for OEMs and high graphical detail applications. It is part of a latest line of Pro-face brand operator interfaces. The bright, crisp, and clear QVGA display of this 3910017-05 GP4107G1D PFXGP4107G1D Touch Digitizer Glass Protective Film model is complemented with a large viewing area, and no grid analog for improved visibility and precise part placement.
A host of 3910017-05 GP4107G1D PFXGP4107G1D Front Overlay Touch Panel Terminal features include Ethernet, USB, and RS232, 422, 485 serial ports. The extensive network connectivity allows support of up to two simultaneous protocols making this a highly versatile operator interface.
Specifications:
The table below describes the parameters of the Proface GP4000 GP-4107G 3910017-05 GP4107G1D PFXGP4107G1D Protective Film Touch Digitizer HMI Parts.
| Ambient Humidity: | 10 to 90 % RH |
| Backlight: | Green/Red LED |
| Brand: | Proface |
| Product Line: | Proface GP4000 |
| Touch Size: | 3.4" |
| Display Colors: | Monochrome Green/Red/Orange |
| Display Type: | STN Monochrome LCD |
| Power supply: | 24 V DC |
| Resolution: | 200 x 80 pixels |
| Warranty: | 12-Month Warranty |
Related Proface GP4000 Series Part No. :
| Proface GP4000 | Description | Inventory status |
| 3910017-01 GP4105G1D | Proface GP4000 GP-4105G Touch Screen Monitor Front Overlay | In Stock |
| 3910017-02 GP4105W1D | Proface GP4000 GP-4105W Protective Film Touch Screen Replacement | In Stock |
| 3910017-03 GP4106G1D | Proface GP4000 GP-4106G Touch Panel Protective Film Repair | Available Now |
| 3910017-04 GP4106W1D | Proface GP4000 GP-4106W Touchscreen Protective Film Repair | In Stock |
| 3910017-05 GP4107G1D | Proface GP4000 GP-4107G HMI Touch Screen Glass Protective Film | Available Now |
| 3910017-06 GP4107W1D | Proface GP4000 GP-4107W Touch Screen Panel Front Overlay Repair | In Stock |
| 3910017-11 GP4104G1D | Proface GP4000 GP-4104G Front Overlay Touch Membrane | In Stock |
| 3910017-12 GP4104W1D | Proface GP4000 GP-4104W Touch Glass Front Overlay Repair | In Stock |
| Proface GP4000 | Description | Inventory status |
Proface GP4000 Series HMI Manuals PDF Download:
FAQ:
Question: How to install the 3910017-05 GP4107G1D PFXGP4107G1D Touch Screen Monitor Front Overlay Terminal Installation Gasket
Cause:
1. Place the GP 3910017-05 GP4107G1D PFXGP4107G1D Protective Film Touch Digitizer Glass unit on a flat, level surface, with the display face pointing down.
2. Remove the gasket from the GP 3910017-05 GP4107G1D PFXGP4107G1D Front Overlay Touch Panel unit.
3. Attach the new gasket to the GP 3910017-05 GP4107G1D PFXGP4107G1D Touchscreen Panel Protective Film unit. Position the 3910017-05 GP4107G1D PFXGP4107G1D gasket in the installation groove so that the 3910017-05 GP4107G1D PFXGP4107G1D gasket seam is at the bottom of the GP 3910017-05 GP4107G1D PFXGP4107G1D Touch Screen Front Overlay unit. First, insert the gasket into the 4 corners, in the order shown in the image below. Then, insert the rest of the gasket into the installation groove.
NOTE:
The center of the GP 3910017-05 GP4107G1D PFXGP4107G1D Front Overlay HMI Panel Glass unit bezel's installation groove is ribbed. Make sure you insert the 3910017-05 GP4107G1D PFXGP4107G1D gasket all the way in without catching the ribbed sections.
When using a tool to insert the 3910017-05 GP4107G1D PFXGP4107G1D gasket, make sure the tool does not catch the rubber gasket and cause a tear.
4. The upper surface of the gasket should protrude approximately 2.5 mm (0.1 in.) from the groove. Check the gasket is inserted correctly before installing the GP 3910017-05 GP4107G1D PFXGP4107G1D Touch Screen Panel Glass Protectuve Film unit into a panel.
The 3910017-05 GP4107G1D PFXGP4107G1D gasket must be inserted correctly into the groove for IP65F moisture resistance for the GP unit.
Common misspellings:
3910017-05 GP4107G1D PFXGP407G1D3910017-05 G4107G1D PFXGP4107G1D
3910071-05 GP4107G1D PFXGP4107G1D
3910017-05 GP410TG1D PFXGP4107G1D
3910017-05 GP4107G1D PFXGGP4107G1D
