Pro-face PFXGP4301TADWC PFXGP4301TDWC Overlay Panel Glass
- group name
- GP4000 Series
- Min Order
- 1 piece
- brand name
- VICPAS
- model
- PFXGP4301TADWC PFXGP4301TDWC
- Nearest port for product export
- Guangzhou, Hongknog, Shenzhen, Taiwan
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Sun, 24 Nov 2024 16:59:59 GMT
Paramtents
Brand Proface
Size 5.7 inch
Warranty 365 Days
Product Line Proface GP4000 Series
Supply GP-4301TW Front Overlay Touch Digitizer Glass
Shipping 2-4 workdays
Part Number PFXGP4301TADWC PFXGP4301TDWC
Packging & Delivery
-
Min Order1 piece
Briefing
Detailed

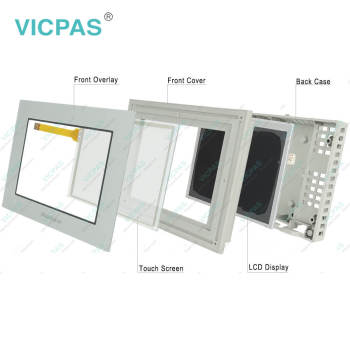

Proface GP4000 GP-4301TW PFXGP4301TADWC PFXGP4301TDWC Front Overlay Touch Screen LCD Display and Shell Housing
Order each part separately is available
This dedicated operator interface GP-4301TW PFXGP4301TADWC PFXGP4301TDWC touch screen is ideal for OEMs and high graphical detail applications. It is part of a latest line of Pro-face brand operator interfaces. The bright, crisp, and clear QVGA display of this GP-4301TW PFXGP4301TADWC PFXGP4301TDWC Touch Digitizer Glass, Protective Film, HMI Case and LCD Display Screen model is complemented with a large viewing area, and no grid analog for improved visibility and precise part placement.
A host of GP-4301TW PFXGP4301TADWC PFXGP4301TDWC Front Case, Back Cover, Front Overlay and Touch Panel Terminal features include Ethernet, USB, and RS232, 422, 485 serial ports. The extensive network connectivity allows support of up to two simultaneous protocols making this a highly versatile operator interface.
PFXGP4301TADWC PFXGP4301TDWC Protective Film, HMI Cover, Panel Glass and LCD Screen machine Features
• 65k Color, Clear, Bright, High-Resolution TFT Display
• Energy Efficient LED Display
• No Grid Analog Touch Panel for Improved Visibility and Precise Part Placement
• Supports different types of Protocol Drivers (communicates to two selected drivers)
• Separate front & rear module for quick installation in 22mm hole
• 10/100 Base-T Ethernet, and USB
Specifications:
The table below describes the parameters of the Proface GP4000 PFXGP4301TADWC PFXGP4301TDWC Touch Digitizer Protective Film HMI Parts.
| Ambient Humidity: | 10 to 90 % RH |
| Backlight: | White LED |
| Brand: | Proface |
| Product Line: | Proface GP4000 |
| Touch Size: | 5.7" |
| Display Colors: | 65,536 colors |
| Display Type: | TFT Color LCD |
| Power supply: | 24 V DC |
| Resolution: | 480 x 272 pixels |
| Warranty: | 12-Month Warranty |
Related Proface GP4000 Series Part No. :
| Proface GP4000 | Description | Inventory status |
| GP-4301T PFXGP4301TAD | Proface GP4000 GP-4301T Touch Screen Monitor Front Overlay | In Stock |
| GP-4301T PFXGP4301TADC | Proface GP4000 GP-4301T Protective Film Touch Screen Replacement | In Stock |
| GP-4301T PFXGP4301TADR | Proface GP4000 GP-4301T Touch Panel Protective Film Repair | Available Now |
| GP-4301TW PFXGP4301TADW | Proface GP4000 GP-4301TW Touchscreen Protective Film Repair | In Stock |
| GP-4301TW PFXGP4301TADWC | Proface GP4000 GP-4301TW HMI Touch Screen Glass Protective Film | Available Now |
| GP-4301TW PFXGP4301TDWC | Proface GP4000 GP-4301TW Touch Screen Panel Front Overlay Repair | In Stock |
| GP-4301TM PFXGM4301TAD | Proface GP4000 GP-4301TM Front Overlay Touch Membrane | In Stock |
| GP-4303T PFXGP4303TAD | Proface GP4000 GP-4303T Touch Glass Front Overlay Repair | In Stock |
| GP-4311HT PFXGP4311HTAD | Proface GP4000 GP-4311HT Touch Digitizer Glass Overlay Repair | Available Now |
| GP-4311HT PFXGP4311HTADER | Proface GP4000 GP-4311HT HMI Panel Glass Protective Film | Available Now |
| GP-4311HT PFXGP4311HTADERK | Proface GP4000 GP-4311HT HMI Touch Screen Protective Film | In Stock |
| GP-4311HT PFXGP4311HTADEYK | Proface GP4000 GP-4311HT MMI Touch Screen Front Overlay Replacement | In Stock |
| GP-4311HT PFXGP4311HTADEGK | Proface GP4000 GP-4311HT Front Overlay HMI Touch Screen Glass | Available Now |
| Proface GP4000 | Description | Inventory status |
Proface GP4000 Series HMI Manuals PDF Download:
FAQ:
Question: How to install the PFXGP4301TADWC PFXGP4301TDWC Touch Screen Monitor Front Overlay Terminal Installation Gasket
Cause:
1. Place the GP PFXGP4301TADWC PFXGP4301TDWC Protective Film Touch Digitizer Glass unit on a flat, level surface, with the display face pointing down.
2. Remove the gasket from the GP PFXGP4301TADWC PFXGP4301TDWC Front Overlay Touch Panel unit.
3. Attach the new gasket to the GP PFXGP4301TADWC PFXGP4301TDWC Touchscreen Panel Protective Film unit. Position the PFXGP4301TADWC PFXGP4301TDWC gasket in the installation groove so that the PFXGP4301TADWC PFXGP4301TDWC gasket seam is at the bottom of the GP PFXGP4301TADWC PFXGP4301TDWC Touch Screen Front Overlay unit. First, insert the gasket into the 4 corners, in the order shown in the image below. Then, insert the rest of the gasket into the installation groove.
NOTE:
The center of the GP PFXGP4301TADWC PFXGP4301TDWC Front Overlay HMI Panel Glass unit bezel's installation groove is ribbed. Make sure you insert the PFXGP4301TADWC PFXGP4301TDWC gasket all the way in without catching the ribbed sections.
When using a tool to insert the PFXGP4301TADWC PFXGP4301TDWC gasket, make sure the tool does not catch the rubber gasket and cause a tear.
4. The upper surface of the gasket should protrude approximately 2.5 mm (0.1 in.) from the groove. Check the gasket is inserted correctly before installing the GP PFXGP4301TADWC PFXGP4301TDWC Touch Screen Panel Glass Protectuve Film unit into a panel.
The PFXGP4301TADWC PFXGP4301TDWC gasket must be inserted correctly into the groove for IP65F moisture resistance for the GP unit.
Common misspellings:
PFXGP4301TADWC PFXGP4301DWCPFXGP431TADWC PFXGP4301TDWC
PFXGP4301TADWC PFXGP4310TDWC
PFXGP43017ADWC PFXGP4301TDWC
PFXGP4301TADWC PPFXGP4301TDWC
