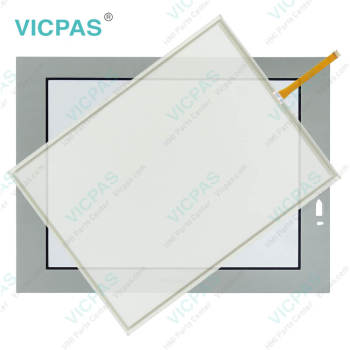

Pro-face APL3700-TD-CD2G-2P APL3700-TD-CD2G-4P Protective Film Touch Screen Panel
- group name
- PL Series
- Min Order
- 1 piece
- brand name
- VICPAS
- model
- APL3700-TD-CD2G-2P APL3700-TD-CD2G-4P
- Nearest port for product export
- Guangzhou, Hongknog, Shenzhen, Taiwan
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Sun, 24 Nov 2024 15:27:58 GMT
Paramtents
Brand Proface
Warranty 365 Days
Product Line Proface PL Series
Supply PL-3700T Front Overlay Touch Glass
Shipping 2-4 workdays
Touch Size 15 inch
Packging & Delivery
-
Min Order1 piece
Briefing
Detailed
Proface PL PL-3700T APL3700-TD-CD2G-2P APL3700-TD-CD2G-4P Front Overlay Touch Screen Monitor Repair
Order each part separately is available
VICPAS supply Pro-face PL Series APL3700-TD-CD2G-2P APL3700-TD-CD2G-4P Protective Film and Touch Screen Panel with 365 days warranty and support Urgent Worldwide Shipping.
APL3700-TD-CD2G-2P APL3700-TD-CD2G-4P – 15” Touch-Panel PC Features:
• 15” (XGA 1024 x 768) TFT APL3700-TD-CD2G-2P APL3700-TD-CD2G-4P touch-panel computer
• Intel® Core™ Duo 2.0GHz or Intel® Celeron® M 1.86GHz CPU
• 250 GB Hard Drive, Solid State Drive or bootable Compact Flash
• DVD-RW standard
• Reliability, Availability, Serviceability (RAS) Remote Health Monitor
• IP65f, NEMA 4/4x/12 Rated
• SSD (Solid State Drive) for Reliability and faster data access
• Data protection – RAID1 hard disk option
• RoHS directive-conforming
• UL 1604, Class I, Div 2, Groups A, B, C, D
Open APL3700-TD-CD2G-2P APL3700-TD-CD2G-4P Protective Film Touch Screen Panel Glass HMI WinGP Option
• Use PC as on-demand touch-screen HMI
• Allows third-party applications to run concurrently
– SPC, vision, SCADA, MRP
• Expands PC hardware and data connectivity options
Specifications:
The table below describes the parameters of the Proface PL APL3700-TD-CD2G-2P APL3700-TD-CD2G-4P Touch Screen Panel Front Overlay HMI Machine.
| Ambient Humidity: | 10 to 90%RH (no condensation) |
| Allowable Voltage Drop: | 10 ms or less |
| Product Line: | Proface PL |
| Size: | 15 inch |
| Resolution: | 1024 x 768 pixels |
| Brand: | Proface |
| Power Supply: | 24 V DC |
| Storage Temperature: | -20°C to +60°C |
| Storage Humidity: | 10%RH to 90%RH |
| Warranty: | 365 Days |
Related Proface PL Series HMI Part No. :
| Pro-face PL | Description | Inventory status |
| APL3700-TA-CD2G-2P | Proface PL-3700T Front Overlay Touch Screen Replacement | In Stock |
| APL3700-TA-CD2G-4P | Proface PL-3700T Touch Panel Protective Film Repair | Available Now |
| APL3700-TA-CM18-2P | Proface PL-3700T Touchscreen Protective Film Replacement | In Stock |
| APL3700-TA-CM18-4P | Proface PL-3700T HMI Front Overlay Touch Screen Glass Repair | Available Now |
| APL3700-TD-CD2G-2P | Proface PL-3700T Touch Screen Panel Protective Film Repair | In Stock |
| APL3700-TD-CD2G-4P | Pro-face PL-3700T Protective Film Touch Membrane Repair | In Stock |
| APL3700-TD-CM18-2P | Proface PL-3700T HMI Touch Glass Front Overlay Repair Replacement | In Stock |
| APL3700-TD-CM18-4P | Proface PL-3700T Touch Digitizer Glass Front Overlay Repair | Available Now |
| APL3700-TFM-BLD | Pro-face PL-3700T Protective Film HMI Panel Glass Repair | Available Now |
| PL-3700-M01 | Proface PL-3700 Touch Screen Monitor Front Overlay | In Stock |
| PL3700-S11 | Proface PL-3700 Front Overlay MMI Touch Screen Replacement | In Stock |
| PL3700-S42 | Proface PL-3700 HMI Touch Screen Glass Protective Film | Available Now |
| Proface PL | Description | Inventory status |
Proface PL Series HMI Manuals PDF Download:
FAQ:
Question: How to remove the APL3700-TD-CD2G-2P APL3700-TD-CD2G-4P front module and the control box?
Answer: Remove the control box from the front module with the following steps:
(1) Unscrew the attachment screws securing the flexible cable cover and remove the cover.
(2) Disconnect the flexible cable.
(3) Remove the four screws on the installation fasteners for the control box.
(4) Slide the control box in the direction shown by the arrow.
(5) Lift the control box and remove the front module tabs from the slot on the installation fasteners for the control box. Then remove the control box.
The touch digitizer and front overlay is applicable to the following models:
| Part No. | Part No. |
|---|---|
| APL3700-TA | APL3700-TA-CM18-2P-1G-XM60-M-R |
| APL3700-TA-CD2G-2P-1G-XM60-M | APL3700-TA-CM18-2P-1G-XM60-M-WG |
| APL3700-TA-CD2G-2P-1G-XM60-M-R | APL3700-TA-CM18-4P-1G-XM60-M |
| APL3700-TA-CD2G-2P-1G-XM60-M-WG | APL3700-TA-CM18-4P-1G-XPC08-M |
| APL3700-TA-CD2G-4P-2G-XM60-M | APL3700-TA-CM18-4P-1G-XPC08-M-WG |
| APL3700-TA-CD2G-4P-2G-XPC08-M | APL3700-TA-CM18-4P-B |
| APL3700-TA-CD2G-4P-2G-XPC08-M-WG | APL3700-TA-CM18-4P-BD |
| APL3700-TA-CD2G-4P-B | APL3700-TD |
| APL3700-TA-CD2G-4P-BD | APL3700-TD-CD2G-2P-1G-XM60-M |
| APL3700-TA-CM18-2P-1G-XM60-M | APL3700-TD-CD2G-2P-1G-XM60-M-R |
Common Misspellings:
APL3700-TD-CD2G-2P APL3700-TD-D2G-4PAPL3700-T-CD2G-2P APL3700-TD-CD2G-4P
AP3L700-TD-CD2G-2P APL3700-TD-CD2G-4P
APL3700-TD-CD2G-2P APL3T00-TD-CD2G-4P
APL3700-TD-CD2G-2P APL3700-TD-CD2GG-4P
