Gtouch GP-104F-5H-3G Touch Screen Panel Replacement

Gtouch GP-104F-5H-3G Touch Screen Panel Replacement
Gtouch GP-104F-5H-3G Touch Screen Panel ReplacementGtouch GP-104F-5H-3G Touch Screen Panel ReplacementGtouch GP-104F-5H-3G Touch Screen Panel Replacement
group name
Gtouch Screen
Min Order
1 piece
brand name
VICPAS
model
GP-104F-5H-3G
Nearest port for product export
Guangzhou, Hongknog, Shenzhen, Taiwan
Delivery clauses under the trade mode
FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
Acceptable payment methods
T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
update time
Sat, 23 Nov 2024 18:19:54 GMT

Paramtents

  • Warranty 365 Days

  • Shipping 2-4 workdays

  • Brand Gtouch Touch Screen

  • Touch screen panel type Resistance touch panel

  • Display Size 10.4 inch

  • Supply Parts Gtouch Touchscreen Panel

  • Part Number GP-104F-5H-3G

Packging & Delivery

  • Min Order1 piece

Briefing

Gtouch GP-104F-5H-3G Touch Panel Glass Replacement. It is brand new and good quality with a year warranty.

Detailed

Gtouch GP-104F-5H-3G Touch Membrane HMI Repair Replacement


Gtouch GP-104F-5H-3G Touch Screen Panel repair replacement

GP-104F-5H-3G touch panel is composed of a layer of conductive film (ITO Film) and a layer of conductive glass (ITO Glass). The GP-104F-5H-3G Touch Digitizer Spacer Dots is also used for insulation between the film and glass. The difference between 5-wire and 4-wire is that for 5-wire both the X-axis and Y-axis are made on the glass surface, and the upper ITO Film is only used for grounding. The X-axis and Y-axis are respectively routed from the four corners of the action area, and the positive voltage forms a loop with the grounding wire. The voltage value also forms a uniform electric field, and the coordinate position is detected by calculation. The five-wire resistive GP-104F-5H-3G HMI Panel Glass is designed according to this structure, since its main X-axis or Y-axis line is not on the outermost film but on the glass, so the durability and reliability are different to the 4-wire resistive product.

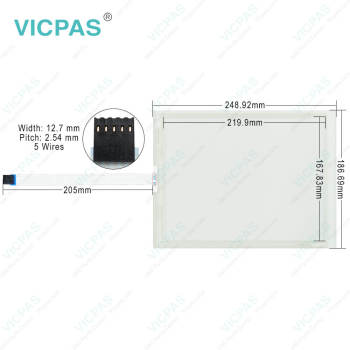

Specifications:

The table below describes the parameters of the Gtouch GP-104F-5H-3G Touch Screen HMI Part.

Brand: Gtouch
Connection Tail: FFC or FPC
Linearity: <1.5%
Operation Temperature: -10℃~ 70℃
Product Line: Gtouch Touch Panel
Storage Temperature: -40℃~+80℃
Touch Size: 10.4 inches
Top Layer: Polyester film
Transparency: 80%
Warranty: 1-Year Warranty


Related Gtouch Touch Screen HMI Part No. :

Gtouch Touch Membrane Description Inventory status
GP-101F-5M-NB02B Gtouch Touch Screen Glass HMI Repair Available Now
GP-101F-5M-NB03B Gtouch Touch Screen Panel Replacement In Stock
GP-101F-5M-NB04B Gtouch Touch Panel Replacement Available Now
GP-101F-5M-NB05B Gtouch Touch Membrane Replacement In Stock
GP-102F-5H-NB01A Gtouch Touch Glass Replacement In Stock
GP-102F-5H-NB01B Gtouch HMI Panel Glass Replacement Available Now
GP-102F-5H-NB02B Gtouch Touch Digitizer Glass Repair Available Now
GP-102F-5H-NB11B Gtouch Touch Panel Repair Replacement In Stock
GP-104F-5H-3G Gtouch HMI Touch Glass Replacement Part In Stock
GP-104F-5H-B06 Gtouch MMI Touch Screen Replacement Repair In Stock
GP-104F-5H-NB06B Gtouch Touch Screen Panel Replacement Available Now
GP-104F-5H-NB11A Gtouch Touch Screen Glass Replacement In Stock
GP-104F-5H-NB11B Gtouch Touch Screen Panel Replacement Available Now
GP-104F-5M-NA03B Gtouch Touchscreen Repair Part In Stock
GP-104F-5M-NB06B Gtouch Touch Digitizer Replacement Repair In Stock
Gtouch Touch Digitizer Description Inventory status

Gtouch Touch Screen Panel HMI Manuals PDF Download:

  • GP-090F-5H-NB01A_drawing.pdf
  • GP-101F-5H-NB01B_drawing.pdf
  • GP-101F-5M-NB02B_drawing.pdf
  • GP-102F-5H-NB01A_drawing.pdf
  • GP-102F-5H-NB01B_drawing.pdf
  • GP-104F-5H-3G_drawing.pdf
  • GP-104F-5H-B06_drawing.pdf
  • GP-104F-5H-NB06B_drawing.pdf
  • GP-104F-5M-NB06B_drawing.pdf
