Keypad Membrane for Simatic Handheld Unit 6FX2007-1AC12
- group name
- SINUMERIK Operator Panel
- Min Order
- 1 piece
- brand name
- VICPAS
- model
- 6FX2007-1AC12 Mini HHU
- Nearest port for product export
- Guangzhou, Hongknog, Shenzhen, Taiwan
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Mon, 25 Nov 2024 09:09:36 GMT
Paramtents
Keypad Button Material Metal
Membrane Material Plastic
Application Industry Equipment
Place of Origin China
Packging & Delivery
-
Min Order1 piece
Briefing
Detailed

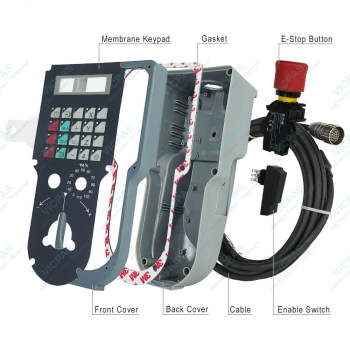

6FX2007-1AC12 Siemens SINUMERIK HMI Mini Handheld Unit OPERATOR PANEL Keypad Membrane, Enabling Controller Switch, Plastic Cover Bodies, Gasket, Screws, Cables and Emergency Stop Button Repair
Order each part separately is available
Overview of 6FX2007-1AC12 Operator Keyboard
The handheld unit type B-MPI is suitable for manually operating machine tools, such as axis feed movements. All keys are freely assignable, and the keyboard can be optionally labeled.
Handheld unit of 6FX2007-1AC12 Switch Membrane
Handheld unit with handwheel, EMERGENCY STOP button, keyswitch, override, enabling buttons, display, free keys, connection via MPI bus and cable distributor.
Design of Handheld Unit 6FX2007-1AC12 Membrane Keypad
The handheld unit features 2-channel emergency stop and enabling circuits.The enabling button is a 3-step enabling button. The 6FX2007-1AC12 Keyboard Membrane handheld unit is available for 3-wire or 4-wire enabling. The handheld unit type B-MPI is connected via a distributor box to the MPI line. The distributor box of 6FX2007-1AC12 Operator Keyboard is designed for installation in a control cabinet or in a separate enclosure. In the version with 4-wire connection of the enabling buttons, monitoring of the transverse short-circuit is possible in the enabling circuit. Due to the modified connector layout, these 6FX2007-1AC12 Terminal Keypad handheld units can be used only with the distributor box for this version. The holder of 6FX2007-1AC12 Operator Panel Keypad is manufactured from black polystyrene and can be fixed to a suitable base with 4 screws.
Specifications:
The table below describes the parameters of the 6FX2007-1AC12 Siemens Mini Handheld Unit HMI Parts.
| Part Number: | 6FX2007-1AC12 |
| Product Line: | Siemens Mini HHU |
| Connection: | MPI Line |
| Warranty: | 6-Months Warranty |
| Distance to NCU/PCU: | 200m (656ft) |
| Protection: | IP 65 |
| Emergency Stop: | 2-channel |
| Operating Voltage: | 24 V DC |
| Storage Temperature: | -20..+60℃ (-4..+140℉) |
| Operation Temperature: | 0..45℃ (32..131℉) |
Related Simatic Mini Handheld Unit Part No. :
| SINUMERIK Mini HHU Keypad | Description | Inventory status |
| 6FX2007-1AB03 | Siemens SINUMERIK Mini HHU Terminal Keypad Repair | In Stock |
| 6FX2007-1AB13 | Siemens Mini HHU Membrane Switch Replacement | Available Now |
| 6FX2007-1AC02 | Siemens Operator Keyboard Repair | In Stock |
| 6FX2007-1AC03 | Siemens SINUMERIK HMI Mini HHU Keypad Membrane Replacement | In Stock |
| 6FX2007-1AC04 | Siemens Mini HHU Membrane Keypad Switch Repair | Available Now |
| 6FX2007-1AC12 | Siemens SINUMERIK Keyboard Membrane Replacement | In Stock |
| 6FX2007-1AC13 | Siemens SINUMERIK Mini HHU Terminal Keypad Repair | Available Now |
| 6FX2007-1AC14 | Siemens Mini HHU Switch Membrane Repair | Available Now |
| 6FX2007-1AE03 | SINUMERIK HMI Mini HHU Membrane Keypad Touch Panel Repair | In Stock |
| 6FX2007-1AE04 | Siemens Mini HHU Membrane Keypad Replacement | Available Now |
| 6FX2007-1AE13 | SINUMERIK Mini HHU Membrane Keyboard Repair | In Stock |
| 6FX2007-1AE14 | Siemens Mini HHU Terminal Keypad Replacement | Available Now |
| Siemens Mini HHU Part No. | Description | Inventory status |
Siemens handheld unit HMI Manuals PDF Download:
FAQ:
Question: What are the dimensions of 6FX2007-1AC12?
Answer: The length is 252mm(9.92in), the width is 114mm(4.49in) and the height is 110mm(4.33in).
Question: What is the humidity rating of 6FX2007-1AC12 based on EN60721-3-3?
Answer: Class 3K5 condensation and icing excluded. Low air temperature 0°C (32°F).
Question: How many wires of the connection of 6FX2007-1AC12?
Answer: There are 4-wire connection of the enabling buttons of 6FX2007-1AC12, monitoring of the transverse short-circuit is possible in the enabling circuit.
