M2I X TOP-E Series XTOP08TV-ED Touch Membrane Repair
- group name
- M2I
- Min Order
- 1 piece
- brand name
- VICPAS
- model
- M2I XTOP08TV-ED
- Nearest port for product export
- Guangzhou, Hongknog, Shenzhen, Taiwan
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Thu, 28 Nov 2024 20:47:23 GMT
Paramtents
Brand M2I
Size 8.4 inch
Warranty 365 Days
Product Line M2I X TOP-E Series
Supply XTOP08TV-ED Touch Digitizer
Shipping 2-4 workdays
Part Number M2I X TOP-E Series XTOP08TV-ED
Packging & Delivery
-
Min Order1 piece
Briefing
Detailed

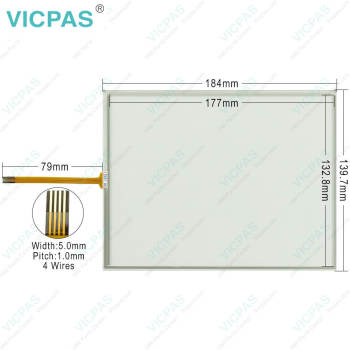

M2I X TOP-E Series XTOP08TV-ED Touch Screen Film Replacement
Fixing
Install clamps with M2I XTOP08TV-ED Touch Screen Monitor product should be installed as follows to maintain the IP performance of the device.
a.Insert the clamp into the slot of the product.
b.Screw the unit into the XTOP08TV-ED Touch Membrane panel cut with a screwdriver. If the screw is over tightened, it may cause the front deformation, thus resulting the touch sensor Can't work properly Tighten the screws to a torque of 0.2 N.m.
Setting System Recovery Mode of XTOP08TV-ED Touch Digitizer Glass
a.If the system fails to boot normally due to a problem during operation, the built-in recovery function can be used to maintain the factory default state. Please note that the built-in project will be deleted when using the recovery mode.
b.After opening the XTOP08TV-ED Touch Screen Monitor rear cover, you can adjust the setting switch. Keep the "BOOT UP"state when booting normally. If the system is recovering, turn off the power and set it to "RECOVERY".
c.When the recovery of M2I XTOP08TV-ED HMI Panel Glass is completed, the buzzer sounds, then turn off the power and reset to "BOOT UP" state.
Specifications:
The table below describes the parameters of the M2I XTOP08TV-ED Touch Panel HMI Parts.
| Touch Type: | Analog Resistive Film |
| Panel Cut: | 222 x 168 |
| Display Type: | TFT Color |
| Display Color: | 65536 Color |
| Operation Temperature: | 0°C ~ +50°C |
| Product Line: | M2I X TOP-E |
| Ambient Humidity: | 85% RH or less |
| Storage Temperature: | -10°C ~ +60°C |
| Part Number: | XTOP08TV-ED |
| Operating Humidity: | 0°C ~ +90°C |
Related M2I HMI Part No. :
| M2I HMI | Description | Inventory status |
| CTOP2M-A | M2I C Top Series Touch Screen Tablet Front Overlay Replacement | In Stock |
| CTOP2M-B | M2I C Top Series Protective Film Touch Panel Glass Repair | Available Now |
| CTOP3M | M2I C Top Series Front Overlay Touch Membrane Replacement | In Stock |
| XTOP05MQ-ED | M2I X Top-E Series HMI Touch Glass Protective Film Repair | Available Now |
| XTOP05MQ-ED-E | M2I X Top-E Series Touch Screen Display Front Overlay Replacement | In Stock |
| XTOP05TQ-ED | M2I X Top-E Series Protective Film HMI Panel Screen Repair | Available Now |
| XTOP05TQ-ED-E | M2I X Top-E Series Touch Digitizer Front Overlay Replacement | In Stock |
| XTOP08TV-ED | M2I X Top-E Series Touch Screen Film Protective Film Repair | Available Now |
| XTOP08TV-ED-E | M2I X Top-E Series Front Overlay Touch Digitizer Glass Replacement | In Stock |
| XTOP10TV-ED | M2I X Top-E Series Protective Film Touch Membrane Repair | Available Now |
| XTOP10TV-ED-E | M2I X Top-E Series Touch Screen Tablet Front Overlay Replacement | In Stock |
| M2I HMI | Description | Inventory status |
M2I X TOP-E Series HMI Manuals PDF Download:
FAQ:
Question: What is the case material of M2I XTOP08TV-ED HMI Panel Glass Terminal?
Answer: The case material is PC(Flameless).
Question: What is the cooling system of X TOP-E Series XTOP08TV-ED Touch Digitizer Machine?
Answer: The cooling system of XTOP08TV-ED is natural air circulation.
Question: What is M2I X TOP-E Series XTOP08TV-ED Touch Panel HMI parts price?
Answer: Submit a fast quote, send VICPAS an email for best price.
Common misspellings:
TOP08TV-EDXTOP08TVED
XTOP08TVV-ED
XTOP08T-VED
XTOP08TV-DE
