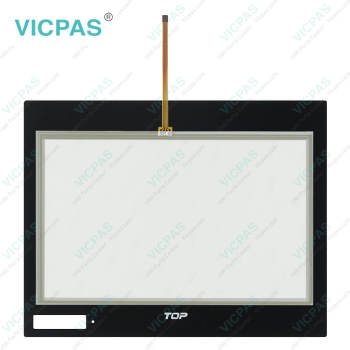

M2I H TOP Series HTOP05TV-SD2 Film Overlay HMI Panel
- group name
- M2I
- Min Order
- 1 piece
- brand name
- VICPAS
- model
- M2I HTOP05TV-SD2
- Nearest port for product export
- Guangzhou, Hongknog, Shenzhen, Taiwan
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Thu, 28 Nov 2024 20:41:07 GMT
Paramtents
Brand M2I
Size 5.7 inch
Warranty 365 Days
Product Line M2I H TOP Series
Supply HTOP05TV-SD2 HMI Panel Glass Protective Film
Shipping 2-4 workdays
Part Number M2I H TOP Series HTOP05TV-SD2
Packging & Delivery
-
Min Order1 piece
Briefing
Detailed
M2I H TOP Series HTOP05TV-SD2 Touch Screen Display Protective Film Replacement
Order each part separately is available
Fixing
Install clamps with M2I HTOP05TV-SD2 Touch Screen Monitor Front Overlay product should be installed as follows to maintain the IP performance of the device.
a.Insert the clamp into the slot of the product.
b.Screw the unit into the HTOP05TV-SD2 Front Overlay Touch Membrane panel cut with a screwdriver. If the screw is over tightened, it may cause the front deformation, thus resulting the touch sensor Can't work properly Tighten the screws to a torque of 0.2 N.m.
Setting System Recovery Mode of HTOP05TV-SD2 Protective Film Touch Digitizer Glass
a.If the system fails to boot normally due to a problem during operation, the built-in recovery function can be used to maintain the factory default state. Please note that the built-in project will be deleted when using the recovery mode.
b.After opening the HTOP05TV-SD2 Protective Film Touch Screen Monitor rear cover, you can adjust the setting switch. Keep the "BOOT UP"state when booting normally. If the system is recovering, turn off the power and set it to "RECOVERY".
c.When the recovery of M2I HTOP05TV-SD2 HMI Panel Glass Front Overlay is completed, the buzzer sounds, then turn off the power and reset to "BOOT UP" state.
Specifications:
The table below describes the parameters of the M2I HTOP05TV-SD2 Protective Film Touch Panel HMI Parts.
| Operating Humidity: | 0 ~ 90% |
| Brand: | M2I |
| Display Type: | TFT Color |
| Warranty: | 365 Days |
| Operation Temperature: | 0°C ~ +50°C |
| Storage Temperature: | -10°C ~ +60°C |
| Product Line: | M2I H TOP |
| Backlight: | Yes |
| Part Number: | HTOP05TV-SD2 |
| Ambient Humidity: | 85% RH or less |
Related M2I HMI Part No. :
| M2I HMI | Description | Inventory status |
| HTOP05TQ-SD | M2I H Top Series Touch Screen Film Front Overlay Replacement | In Stock |
| HTOP05TQ-SD2 | M2I H Top Series Protective Film HMI Panel Glass Repair | Available Now |
| HTOP05TQ-SD-W | M2I H Top Series Front Overlay Touch Membrane Replacement | In Stock |
| HTOP05TV-SD | M2I H Top Series HMI Touch Glass Protective Film Repair | Available Now |
| HTOP05TV-SD-W | M2I H Top Series Protective Film HMI Panel Screen Repair | Available Now |
| TOPRW0500WD | M2I TOPRW Series Touch Digitizer Front Overlay Replacement | In Stock |
| TOPRW0700WD | M2I TOPRW Series Touch Screen Film Protective Film Repair | Available Now |
| TOPRW1000WD | M2I TOPRW Series Front Overlay Touch Digitizer Glass Replacement | In Stock |
| M2I HMI | Description | Inventory status |
M2I H TOP Series HMI Manuals PDF Download:
FAQ:
Question: What is the case material of M2I HTOP05TV-SD2 Front Overlay Touch Panel Terminal?
Answer: The case material is PC(Flameless).
Question: What is the cooling system of H TOP Series HTOP05TV-SD2 Touch Membrane Protective Film Machine?
Answer: The cooling system of HTOP05TV-SD2 is natural air circulation.
Question: What is M2I H TOP Series HTOP05TV-SD2 Touch Screen and Protective Film HMI parts price?
Answer: Submit a fast quote, send VICPAS an email for best price.
Common misspellings:
HTOP05TV-SD2HTOP5TV-SD2
HTOP05TV-S2
HTOP05TTV-SD2
HTOP05TVS-D2
