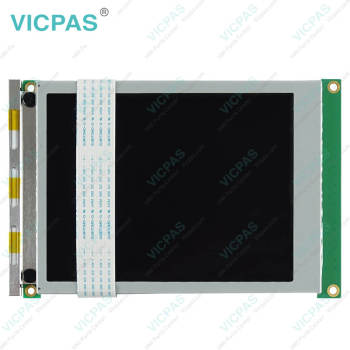

4PP250.0571-K20 Touch Digitizer Glass Overlay LCD Screen

group name: Power Panel 100/200

Min Order: 1 piece

brand name: VICPAS

model: 4PP250.0571-K20

Nearest port for product export: Guangzhou, Hongknog, Shenzhen, Taiwan

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Sun, 23 Feb 2025 00:36:37 GMT

contact supplier

Paramtents

Touch screen panel type Resistance touch screen
Size 5.7 inch
Brand B&R
Warranty 1 Year VICPAS Warranty
Model B&R Power Panel 200 4PP250.0571-K20
Shipping DHL/FedEx/UPS/TNT/EMS/Aramex /DPEX

Packging & Delivery

Min Order1 piece

Briefing

B&R 4PP250.0571-K20 Touch Screen Organizer Protective Film LCD Display Panel. 1-Year Warranty-Fully Tested-Worldwide Shipping

Detailed

B&R Power Panel 200 4PP250.0571-K20 LCD Display Front Overlay Touch Panel Repair

Power Panel 200 4PP250.0571-K20 LCD Screen Protective Film Touchscreen Glass

B&R Power Panel 200 Features
• 24 VDC supply voltage
• 2 USB 1.1 connections
• Ethernet 10/100 MBit interface
• CompactFlash card (type I) slot
• RS232 interface, modem-capable, not electrically isolated
• 2 operating mode switches (2 x 16 digit)
• 2 status LEDs (User or CompactFlash card access)
• Fan-free operation
• Touch screen (analog resistive), function keys or both)
• Filter glass (multiple-coated, non-reflective)
• Horizontal and vertical mounting orientations, numeric and alphanumeric keys)
• Software compatible with B&R 2000 PLC family
• Maximum 2 aPCI slots
• BIOS or Automation Runtime operating system
• Real-time clock (battery-buffered)
• Up to 128 MB SDRAM main memory

The Power Panel is equipped with a PC-compatible serial interface with a 16-byte FIFO buffer. This non-electrically isolated interface is primarily intended for programming Power Panel devices using Automation Studio. The RS232 can also be used as a general interface (e.g. third-party connections, barcode reader, etc.).

Contact Best Price

Specifications:

The table below describes the parameters of the 4PP250.0571-K20 Power Panel 200 Touchscreen Panel Protective Film LCD Display Screen.

Part Number:	4PP250.0571-K20
Product Line:	Power Panel 200
Screen Diagonal:	5.7 in
Warranty:	365 Days Warranty
Input Power:	24 VDC

Display Type:	TFT color
Mounting Position:	Vertical
Input Type:	Touchscreen
Serial Interface Type:	RS232
Storage:	-20 to 70°C

Related B&R Power Panel Series Part No. :

Power Panel B&R	Description	Inventory status
4PP220.0571-K28	B&R Power Panel 200 Touch Screen Protective Film	In Stock
4PP220.1043-K07	PP200 B and R Front Overlay Touch Panel Replacement	Available Now
4PP250.0571-K01	B&R Power Panel 200 Operator Panel Keypad LCD Display	In Stock
4PP250.0571-K12	B and R Power Panel 200 LCD Screen Operator Keyboard Repair	In Stock
4PP250.0571-K14	Power Panel 200 B&R Membrane Keypad Switch LCD Display Screen	In Stock
4PP250.0571-K20	B and R Power Panel 200 Protective Film Touch Glass LCD Display Panel	In Stock
4PP280.1043-K01	PP200 B&R Touch Screen Panel Keyboard Membrane Replacement	Available Now
5PP120.0571-K02	Power Panel 100 B&R Touch Membrane Protective Film Repair	In Stock
5PP120.0571-K04	B and R Power Panel 100 Touch Digitizer Glass Front Overlay	Available Now
5PP120.0571-K10	Power Panel 100 B&R HMI Touch Screen Glass Protective Film	In Stock
5PP120.1043-K02	B and R Power Panel 100 Touch Screen Panel Repair Replacement	In Stock
5PP120.1043-K04	B&R Power Panel 100 Protective Film HMI Touch Glass Repair	In Stock
5PP380.1043-K01	PP300 B&R Touch Screen Organizer Front Overlay Replacement	Available Now
5PP420.1044-K01	B&R Power Panel 400 Protective Film Touch Screen Tablet Repair	In Stock
B and R Power Panel	Description	Inventory status

FAQ:

Question: What causes Power Panel 200 B&R 4PP250.0571-K20 screen burn-in?

Answer:
• Static images
• No screensaver
• Sharp transitions in contrast (e.g. black/white)
• High ambient temperatures
• Operation outside of specifications

Question: How can the B&R Power Panel 200 4PP250.0571-K20 service life of the backlight be extended?

Answer:
• By setting the display brightness to the lowest value that is still comfortable for the eyes
• By using dark images
• By reducing the brightness by 50%, which can result in an approximately 50% increase in the half-brightness time

Common misspellings:

4PP250.0571-K0

4PP250.571-K20

4PP250.0571K-20

4PP250.0571-K2O

4PP250.05571-K20
