5D5202.04 REV F5 Provit 5200 LCD Display HMI Touch Screen

group name: Provit 2000/5000

Min Order: 1 piece

brand name: VICPAS

model: 5D5202.04 REV F5

Nearest port for product export: Guangzhou, Hongknog, Shenzhen, Taiwan

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Sun, 23 Feb 2025 00:34:03 GMT

contact supplier

Paramtents

Touch screen panel type Resistance touch screen
Size 15 inch
Brand B&R
Warranty 1 Year VICPAS Warranty
Model B&R Provit 5200 5D5202.04 REV F5
Shipping DHL/FedEx/UPS/TNT/EMS/Aramex /DPEX

Packging & Delivery

Min Order1 piece

Briefing

B&R Provit 5200 5D5202.04 REV F5 HMI Touch Screen LCD Display Panel. 365 Days Warranty-Fully Tested-Factory Prices-Fast Shipping.

Detailed

B&R Provit 5200 5D5202.04 REV F5 HMI Touch Panel LCD Display Replacement

Order each part separately is available

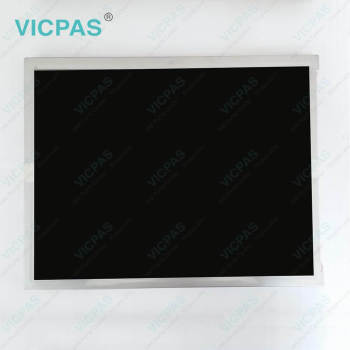

Provit 5200 5D5202.04 REV F5 Touchscreen Glass LCD Screen

When mounting the Provit 5200 5D5202-04 REV F5 display unit on the controller unit (standard mounting) the Provit 5200 5D5202.04 REV F5 display is fastened on the controller with the six screws included in the delivery. The B&R Provit 5200 5D5202-04 REV F5 FPD and touch screen connection cables for standard installation are included in the delivery. The B&R Provit 5200 5D5202.04 REV F5 touch screen cable is connected to a controller's RS232 interface.

All of the B&R Provit 5200 5D5202.04 REV F5 IPC's basic functions are implemented on the mainboard. These mainly include:
• Processor socket
• Chipset
• 2nd level cache
• DRAM socket
• Plug for the bus unit (power supply, ISA, PCI and IDE buses)
• Super I/O controller (COM1, COM2, LPT1, external FDD interface, PS/2 mouse, keyboard controller, USB interfaces, system clock)
• VGA controller (with CRT and FPD connection)
• Status LEDs
• Battery
• Reset button
• Recovery mode jumper
• MTC maintenance controller (Panelware module operation, keyboard operation, Panellink FPD interface, temperature monitoring with fan control)

Contact Best Price

Specifications:

The table below describes the parameters of the 5D5202.04 REV F5 Provit 5200 LCD Display Screen Touch Digitizer.

Part Number:	5D5202.04 REV F5
Product Line:	Provit 5200
Screen Diagonal:	15 in
Warranty:	365 Days Warranty
Input Power:	24 VDC

Display Type:	TFT color
Mounting Position:	Vertical
Input Type:	Touchscreen
Serial Interface Type:	RS232
Storage:	-20 to 60°C

Related B&R HMI Series Part No. :

B&R HMI Repair	Description	Inventory status
4PP420.0571-25	Power Panel 400 Touch Screen Glass Protective Film Replacement	In Stock
5D5202.04 REV F5	Provit 5200 B and R Touch Panel Glass LCD Display Screen Repair	Available Now
5D5202.05 Rev I0	B&R Provit 5200 Touch Screen Panel Repair Replacement	In Stock
5D5212.02 Rev.G0	B and R Provit 5200 Front Overlay Touch Digitizer Replacement	In Stock
5D5212.03	Provit 5200 B&R HMI Touch Screen Organizer Membrane Keyboard	In Stock
5D5212.09 Rev.I0	B and R Provit 5200 Touch Panel Glass Repair Replacement	Available Now
5D5500.19	Provit 5500 B&R Membrane Keypad Switch Replacement	Available Now
5P80:VANAD-02	Automation Panel 800 B&R Touch Membrane Repair	In Stock
5PC8:240187.017-01	B and R Panel PC 800 Front Overlay Touch Digitizer Glass	Available Now
5PC8:444398.022-00	Panel PC 800 B&R HMI Touch Screen Organizer Replacement Repair	In Stock
B and R Replacement	Description	Inventory status

FAQ:

Question: How can the B&R Provit 5200 5D5202.04 REV F5 lifespan of backlights be extended?

Answer:
• Set the display brightness to the lowest value that is still comfortable for the eyes
• Use dark images
• Reducing the brightness by 50% can result in an approximate 50% increase of the half-brightness time.

Question: How to change the B and R Provit 5200 5D5202.04 REV F5 power supply?

Answer:
1. Disconnect the power supply.
2. Unlock fuse holders by turning the slotted bolt in the direction of arrow
How to change the B and R Provit 5200 5D5202.04 REV F5 power supply?
3. Remove the fuse holder.
4. Remove the old fuse from the fuse holder.
5. Insert the new fuse.
6. Replace the fuse holder. It can be fastened by using a flat head screwdriver in the opposite direction of the arrow.
7. Reconnect the power supply.

Question: What measures can be taken against preventing after-image effect in Provit 5200 5D5202.04 REV F5 LCD/TFT monitors?

Answer: There is no total solution; however, measures can be taken to significantly reduce this effect:
• Avoid static pictures or screen content
• Use screen savers (moving) when the display is not in use
• Frequent picture change
• Shut off the display when not in use
Turning off the background lighting (backlight) does not influence the prevention of the afterimage effect.
