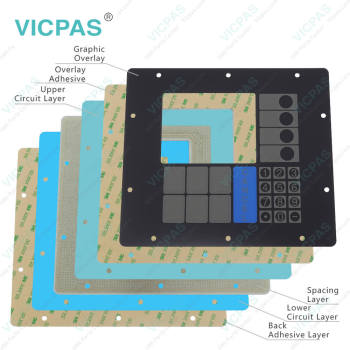

MODICON PANELMATE PLUS MM-PM10-300 Panel Mate PM Plus 1000 MM-PM10300C Operator Keyboard Touch Panel
- group name
- Cutler-Hammer Panelmate
- Min Order
- 1 piece
- brand name
- VICPAS
- model
- MODICON PANELMATE PLUS MM-PM10-300 Panel Mate PM Plus 1000 MM-PM10300C
- Nearest port for product export
- Guangzhou, Hongknog, Shenzhen, Taiwan
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Sat, 23 May 2026 05:38:41 GMT
Paramtents
Product Line Cutler-Hammer Panelmate
Warranty 1 Year
Shipping Time 3-5 Days
Supply Parts HMI Touch Glass Membrane Keypad
Environment Free From Corrosive Gases
LCD Size 6''
Packging & Delivery
-
Min Order1 piece
Briefing
Detailed
Eaton MODICON PANELMATE PLUS MM-PM10-300 Panel Mate PM Plus 1000 MM-PM10300C Keypad Membrane Touch Screen Glass Repair
If Eaton Cutler Hammer MODICON PANELMATE PLUS MM-PM10-300 Panel Mate PM Plus 1000 MM-PM10300C Membrane Keyboard Touch Screen Film does not function at all or it is unresponsive, first check the integrity of the cable and connectors to ensure they are properly connected and not damaged. It is recommended to perform a Keypad Test to further diagnose the issue. Select Keypad Test and press the control button labeled “Execute”. As each key is pressed, it will be identified on the display screen, allowing you to verify whether it is sending signals correctly to the PanelMate unit. Be sure to test all keys, and press the
Specifications:
The table below describes the parameters of Eaton MODICON PANELMATE PLUS MM-PM10-300 Panel Mate PM Plus 1000 MM-PM10300C Touch Digitizer Operator Panel Keypad.
| Shipping Time: | 3-5 Days |
| Cooling Method: | Natural Air Cooling |
| Warranty: | 365 Days |
| Storage Temperature: | -20 °C ... +60 °C |
| Brand: | Vicpas |
| Operating Temperature: | 0 °C ... +50 °C |
| Environment: | Free From Corrosive Gases |
| Product Line: | Cutler-Hammer Panelmate |
| Relative Humidity: | 95% |
| LCD Size: | 6'' |
Related Eaton Cutler-Hammer Panelmate Part No. :
| Cutler-Hammer Panelmate HMI | Description | Inventory status |
| Cutler-Hammer Panelmate HMI | Description | Inventory status |
Eaton Cutler-Hammer Panelmate Manuals PDF Download:
FAQ:
Question: What is important when reinstalling the PanelMate unit after replacing MODICON PANELMATE PLUS MM-PM10-300 Panel Mate PM Plus 1000 MM-PM10300C Touch Panel Membrane Switch?
Answer: After replacing a damaged touchscreen or membrane keypad, proper installation is important to ensure reliable sealing and stable operation. When tightening the mounting nuts, avoid both under-tightening and over-tightening. The fasteners should be tightened enough to create a proper seal, but excessive force may strip the threads or damage the gasket. For best installation results, using a torque wrench is recommended when reinstalling the PanelMate unit.
Question: How can I adjust the display contrast on the PanelMate unit?
Answer: Units with grayscale or dual-scan color displays support software-controlled contrast adjustment. To adjust the contrast, place the unit in Run Mode, then go to Get Page → More → Setup Page → Adjust Contrast. Use the Lighter and Darker control buttons to achieve the desired display effect. After adjustment, press Save Setting to keep the new contrast level, or press Cancel to return to the previous setting. The unit will restore the last saved contrast setting after power cycling.
Common misspellings:
MODICON PANEMATE PLUS MM-PM10-300MODICON PANELMATE PLUS MM-PM01-300
MODICON PANELMATE PLUS MM-PM100-300
Panel Mate PM Plus 1000 MM-PM1300C
Panel Mate PM Plus 1100 MM-PM10300C
Panel Mate PM Plus 1000 MMPM10300C
