6AG1642-0DA01-4AX1 Siemens SIMATIC HMI OP177B Touch Panel
- group name
- Oparator Panel
- Min Order
- 1 piece
- brand name
- VICPAS
- model
- 6AG1642-0DA01-4AX1
- Nearest port for product export
- Guangzhou, Hongknog, Shenzhen, Taiwan
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Sat, 23 Nov 2024 17:43:22 GMT
Paramtents
Brand Siemens
Warranty 6 Months
Product Line Siemens OP177B Operator Panel
Supply SIMATIC HMI OP177B Repair Kit
size 5.7 inch
model 6AG1642-0DA01-4AX1
parts supply touchscreen, keypad, lcd display, case housing
Packging & Delivery
-
Min Order1 piece
Briefing
Detailed

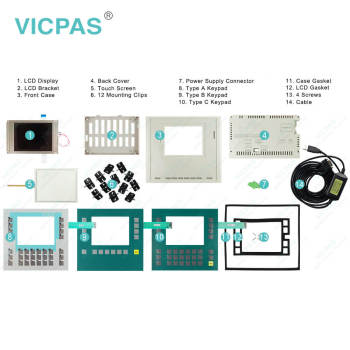

6AG1642-0DA01-4AX1 Siemens SIMATIC HMI OP177B OPERATOR PANEL Touchscreen, Membrane Keyboard, Display, Gasket, Mounting Clips, Screws, LCD Bracket, Power Supply Connector and Plastic Case Shell Repair
Order each part separately is available
Proceed as follows to change settings in the OP177B Control Panel:
1. Open the Control Panel with the "Control Panel" button.
2. To open the required dialog, double-click on its icon.
3. Change the tab as required.
4. Make the necessary changes.
Touch the corresponding input object.
– Use the screen keyboard of the HMI device to enter the new values in the text boxes.– Touch a button to operate it.
– To open a selection list, touch the triangle at the end of the field. Touch the required entry from the selection list.
– Touch the check box to activate or deactivate a check box.
– Touch a radio button to select it.
5. Confirm the selection with the OK button or abort the entry with the X button. The dialog closes.
6. Close the Control Panel with the X button. The Loader appears.
Interfaces on the OP 177B HMI device
① Chassis terminal for equipotential bonding
② Power supply connector
③ RS -485/RS -422 interface (IF 1B)
④ PROFINET connection (applies to OP 177B PN/DP)
⑤ USB connection
OP 177B offers an additional feature. It can now be operated using widely available touchscreens in addition to the membrane keyboard. The function keys can be configured to system keys for specific screens.
VICPAS supply 6AG1642-0DA01-4AX1 Siemens OP177B Touchscreen, Membrane Keyboard, Display, Display Bracket, Screws, Power Supply Connector, Mounting Clips, Gasket and Plastic Case Shell with 12 months warranty and support Urgent Worldwide Shipping.
Specifications:
The table below describes the parameters of the 6AG1642-0DA01-4AX1 Siemens OP177B HMI Parts.
| Part Number: | 6AG1642-0DA01-4AX1 |
| Screen diagonal: | 5.7 in |
| Character size: | 5 mm |
| Warranty: | 6-Months Warranty |
| Product Line: | Siemens OP177B |
| Digital outputs: | 16 |
| Number of colors : | 4 Blue levels |
| Resolution: | 320 * 240 |
| Design as touch screen: | YES |
| Design of display: | STN display |
Related Siemens OP177B Part No. :
| SIMATIC Operator panel OP177B | Description | Inventory status |
| 6AG1642-0BC01-4AX0 | OP177B PN/DP COLOR | In Stock |
| 6AG1642-0DA01-4AX0 | Siemens OP177B | In Stock |
| 6AG1642-0DA01-4AX1 | SIPLUS OP177B | In Stock |
| 6AG1642-0DC01-4AX0 | SIPLUS OP177B | In Stock |
| 6AG1642-0DC01-4AX1 | SIPLUS HMI OP177B | In Stock |
| 6AV6551-2HA01-1AA0 | SIPLUS OP177B | In Stock |
| 6AV6642-0DA01-1AX0 | SIPLUS OP177B | In Stock |
| 6AV6642-0DA01-1AX1 | SIPLUS HMI OP177B | In Stock |
| 6AV6642-0DC01-1AX0 | OP177B | In Stock |
| 6AV6642-0DC01-1AX1 | Siemens OP177B | In Stock |
| 6AV6642-5DC10-1AC0 | OP177B DP MONO | In Stock |
| 0005-4050-710 | Simatic OP177B GEA | In Stock |
| 0005-4050-810 | OP177B Simatic GEA | In Stock |
| 0005-4050-818 | Siemens OP177B GEA | In Stock |
| 0005-4050-950 | Simatic OP177B GEA | In Stock |
| Siemens Operator panel OP177B | Description | Inventory status |
Siemens OP177B series HMI Manuals PDF Download:
FAQ:
Question: What is the dimension of 6AG1642-0DA01-4AX1 Siemens OP177B Tocuscreen??
Answer:The SIMATIC HMI OP177B touchscreen is 5.7 inch.
Question:what the software options for Siemens OP177B?
Answer:The following software options are available for the TP 177B and the OP 177B:
• WinCC Flexible/Sm@rtServiceThe Sm@rtService option enables you to access a remote HMI device from theHMI device or PC via Ethernet.
• WinCC Flexible/Sm@rtAccessThe Sm@rtAccess option enables you to set up communication between differentHMI systems.The following software options are available for the TP 177B 4":
• Uninterruptable Power Supply (UPS) with USB supportWhen interfacing an uninterruptible power supply, the HMI device is shut down in acontrolled manner after a buffer time in the event of a power failure. The TP 177B 4"supports SITOP DC UPS modules connected via the USB port.
Question: What is the 6AG1642-0DA01-4AX1 Siemens OP177B mebrane switch and shell HMI parts price?
Answer: Submit a fast quote, send VICPAS an email for best price.
Common misspellings:
6G1642-0DA01-4AX16A1642-0DA01-4AX1
6AG642-0DA01-4AX1
6AG142-0DA01-4AX1
